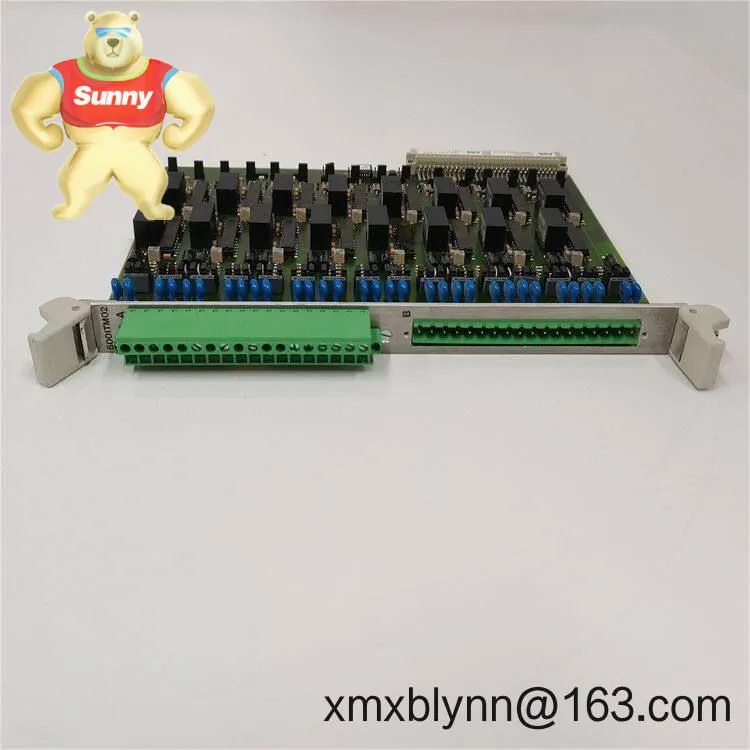

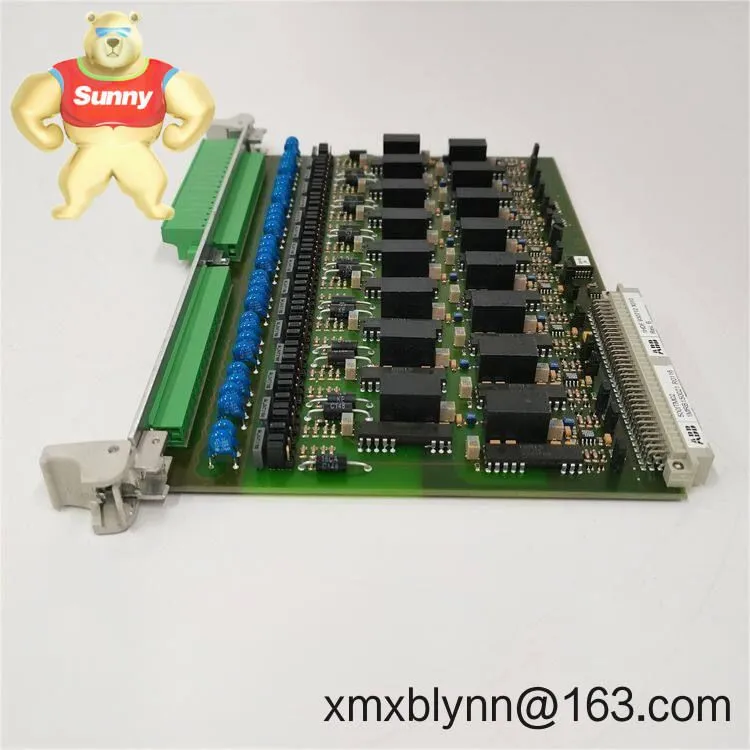

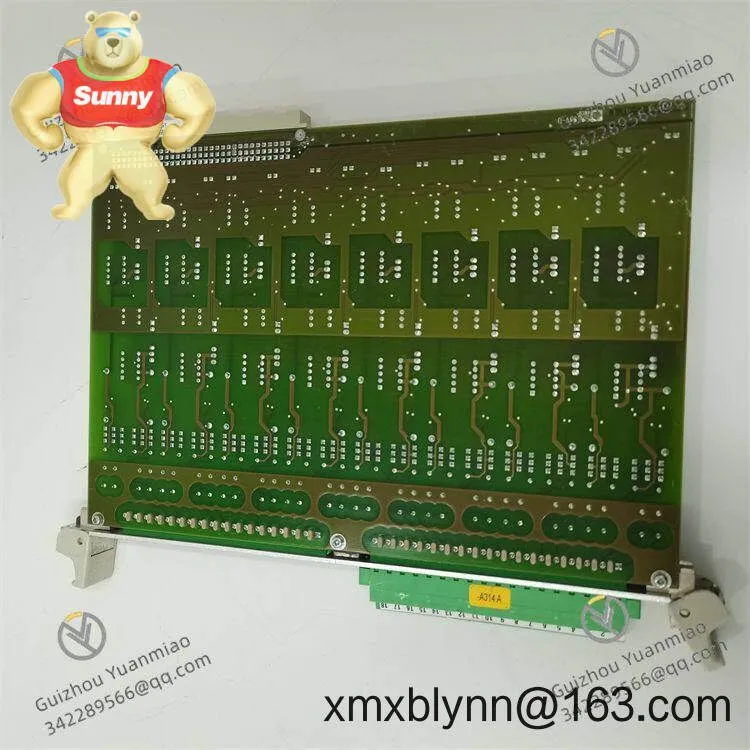

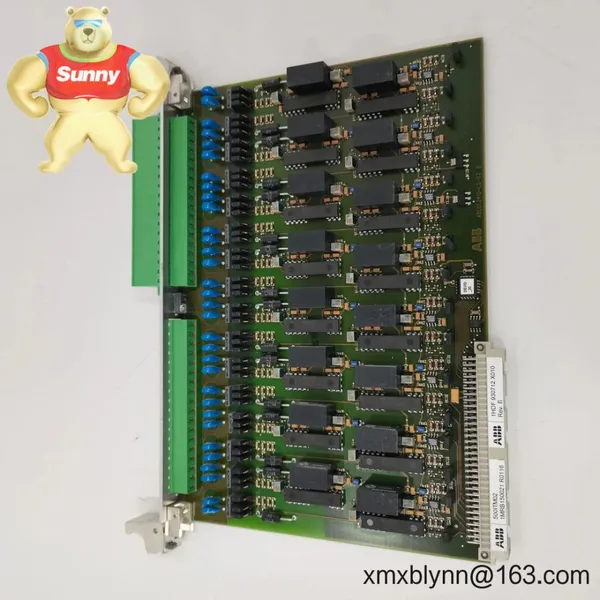

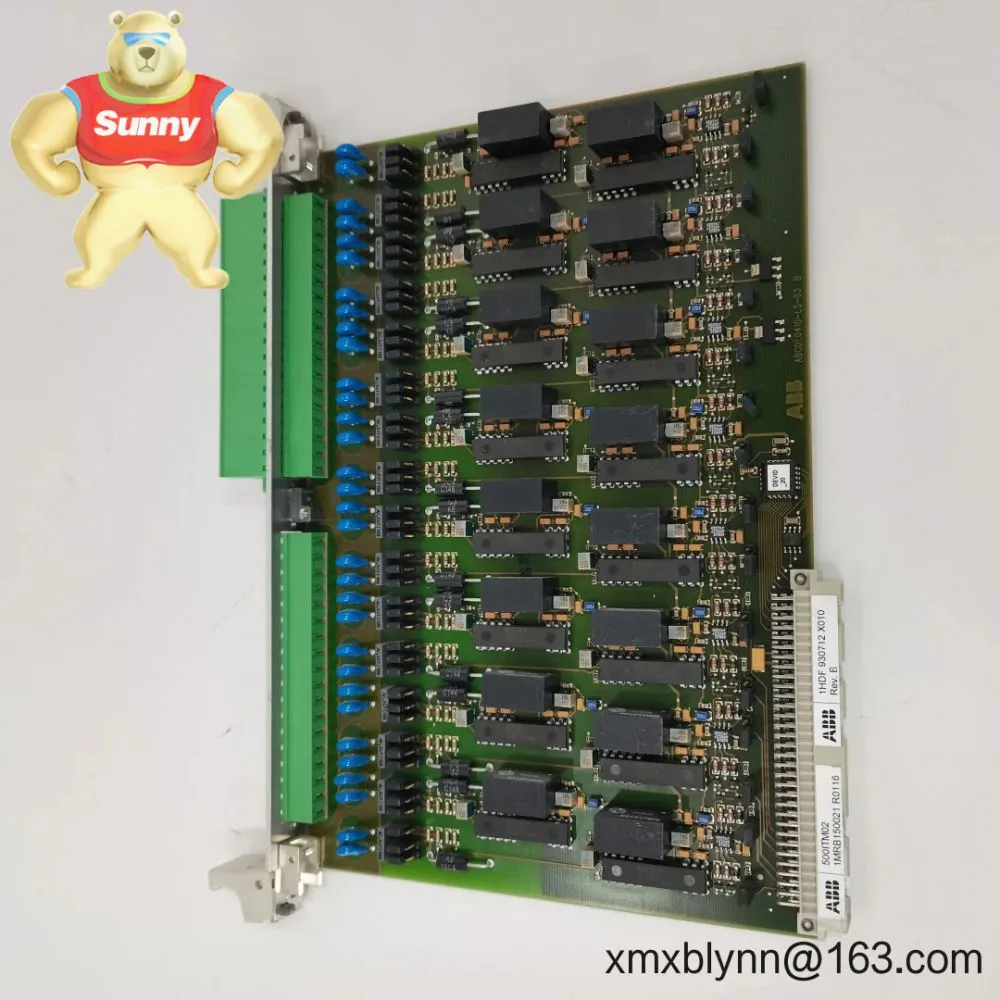

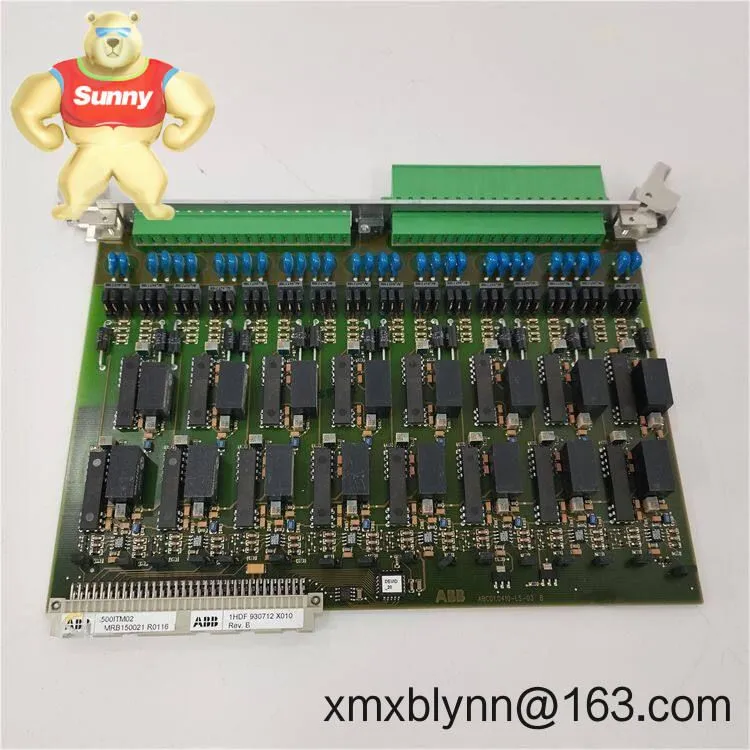

The ABB 500ITM02, part code 1HDF930712X010, is an interface/termination module designed to tidy up field wiring and link plant signals to ABB 500-series control hardware. From my experience, it suits brownfield expansions where you need reliable terminations, organized cable routing, and quick turnarounds without reworking the whole panel.
You might notice that sites adopt the 500ITM02 when they want consistent terminal layouts and a straightforward bridge between I/O modules and field devices. It typically helps reduce commissioning time and makes maintenance less of a guessing game.
Purpose-built field termination – Provides structured, labeled terminals to connect discrete and analog signals from the field to ABB 500-series I/O.
Clean separation of wiring – Typically supports good segregation between signal and power, helping reduce noise in many cases.
Service-friendly layout – Clear markings and accessible terminals make loop checks faster during commissioning.
Controller-side connectivity – Uses a backplane/ribbon-style interface (varies by panel design) for quick connection to the controller or I/O carrier.
Cabinet-ready form factor – Compact module design that fits common control cabinet depths, with mounting suited to panel or rail fixtures.
Stable in industrial environments – Designed for typical control-room or MCC conditions; works well with shielded cable practices and proper grounding.
Lifecycle-friendly – Often used in long-life ABB 500 installations, making spare parts and replacements predictable for maintenance teams.
| Brand / Model | ABB 500ITM02 |
| Manufacturer Part Code | 1HDF930712X010 |
| Power Requirements | Typically 24 VDC auxiliary for status/indication if equipped; passive termination function otherwise (verify per panel design). |
| Signal Input/Output Types | Field termination for discrete and analog I/O used with ABB 500-series modules; designed to route signals cleanly to the controller side. |
| Communication Interfaces | Backplane or ribbon/cable link to the controller or I/O carrier (implementation differs by cabinet layout). |
| Operating Temperature | Typical control-cabinet range 0 to 55 °C; non-condensing humidity environment recommended. |
| Installation Method | Panel-mounted within a protected control cabinet; supports structured cable routing and grounding practices. |
| Dimensions & Weight | Compact module form factor suitable for standard cabinet depths; lightweight for easy handling (check manual for exact figures). |
Plants running ABB 500-series controls tend to use the 500ITM02 in:
Process automation upgrades in chemicals, oil & gas, and water treatment where panel space is tight.
Power generation balance-of-plant cabinets that require consistent terminal arrangements.
Mining and metals applications needing robust, labeled terminations for mixed analog and discrete signals.
Food & beverage and pharmaceuticals, typically for line expansions and replacements with minimal downtime.
Reliability – Stable performance in control cabinets; fewer loose ends and less noise pickup when wired correctly.
Compatibility – Built for ABB 500-series ecosystems, which usually means quicker integration and predictable behavior.
Faster installation – Predefined terminal mapping typically cuts loop wiring hours and reduces rework.
Serviceability – Labeling and terminal access simplify fault finding, which saves maintenance time.
Spares strategy – Consistent hardware across panels makes stocking and replacement more straightforward.
“We swapped in 500ITM02 units during a phased migration. Terminations were cleaner, and our loop checks went about 30% faster than last time. It seems to be the right balance between structure and flexibility.” — Maintenance Supervisor, continuous process plant
Cabinet environment – Install in an enclosed control cabinet (IP54 or better in dusty areas). Keep within typical 0–55 °C and non‑condensing humidity.
Wiring practices – Use shielded twisted pair for analog; segregate low-level signals from power lines. Terminate shields at a single reference point to avoid loops.
Grounding – Maintain a low-impedance ground; follow ABB earthing guidelines to minimize EMI.
Torque and labeling – Tighten terminals to the recommended torque and keep terminal labels current for reliable maintenance.
Routine checks – Periodically inspect for loosened conductors, discoloration, or dust buildup; clean with dry air where appropriate.
Firmware/logic – If associated controller or I/O requires firmware updates, schedule during planned outages and verify mappings after any change.
Spares – Keep at least one spare module per cabinet or per critical area; store in anti-static, dry conditions.
CE marking applicable for industrial control environments.
RoHS compliance in most markets; confirm per lot.
UL/CSA recognition is typical for cabinet-installed control components, subject to panel listing.
Manufacturer warranty: commonly 12 months for new supply; terms may vary by region and procurement channel.
The 500ITM02 is intended for ABB 500-series control systems. For best results, pair it with approved I/O carriers and the recommended controller-side cable assemblies. Typical accessory needs include:
Mating ribbon/cable harness for the controller or I/O carrier (length as per cabinet layout).
Shielded terminal jumpers or shorting links if your loops require maintenance isolation.
DIN-rail or panel adapters, depending on cabinet standards.
Printed terminal markers to match your loop drawings and signal list.
