Help CenterABB 500BIO01 (1MRB200060/E) – Binary I/O Module for UNITROL-based Excitation and Turbine Control
Related Products
-
ABB 500BOM01 (1MRB150023R0002) – Binary Output Module for ABB 500-platform Drives and Control CabinetsNegotiableMOQ: 1 Combo -
ABB 500CMP04 HE401314/0001 – Control Processor Board for ABB DC Drive SystemsNegotiableMOQ: 1 Combo
-
ABB 500CPU03 (1HDF700003R5122) – Central CPU Module for ABB 500‑Series Control SystemsNegotiableMOQ: 1 Combo
-
ABB 500CSP04 (1MRB150051R2) – CSP Control Board for ABB 500‑series DC DrivesNegotiableMOQ: 1 Combo
-
ABB 500ITM02 (1HDF930712X010) – Interface/Termination Module for ABB 500-series Control SystemsNegotiableMOQ: 1 Combo

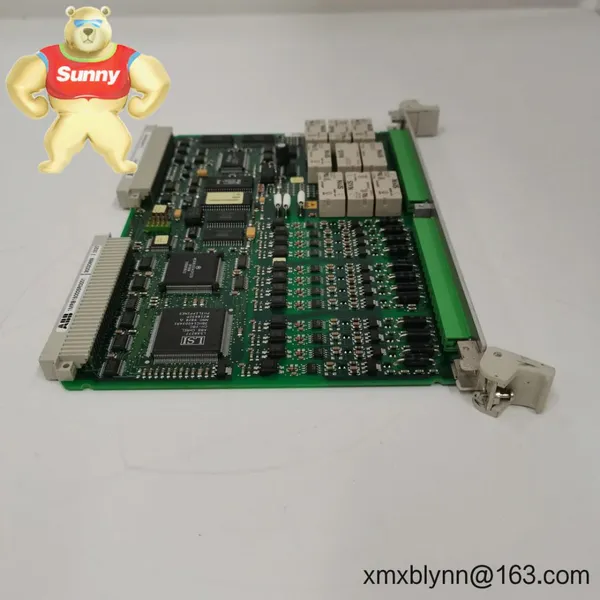

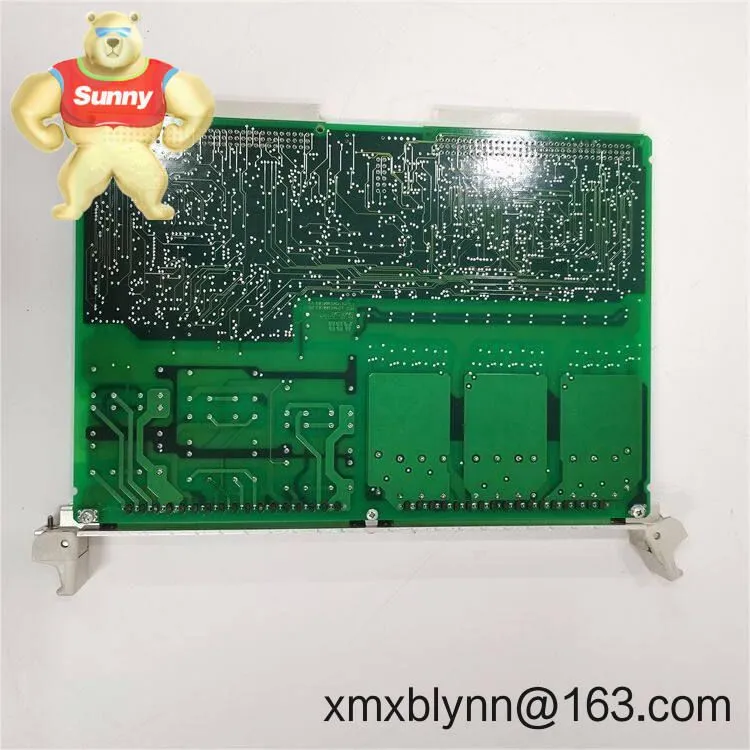

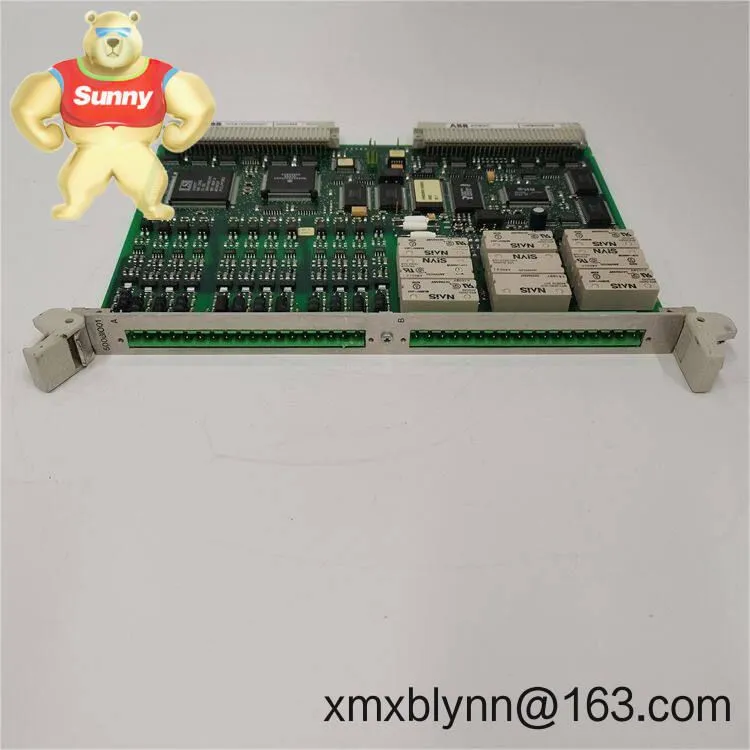

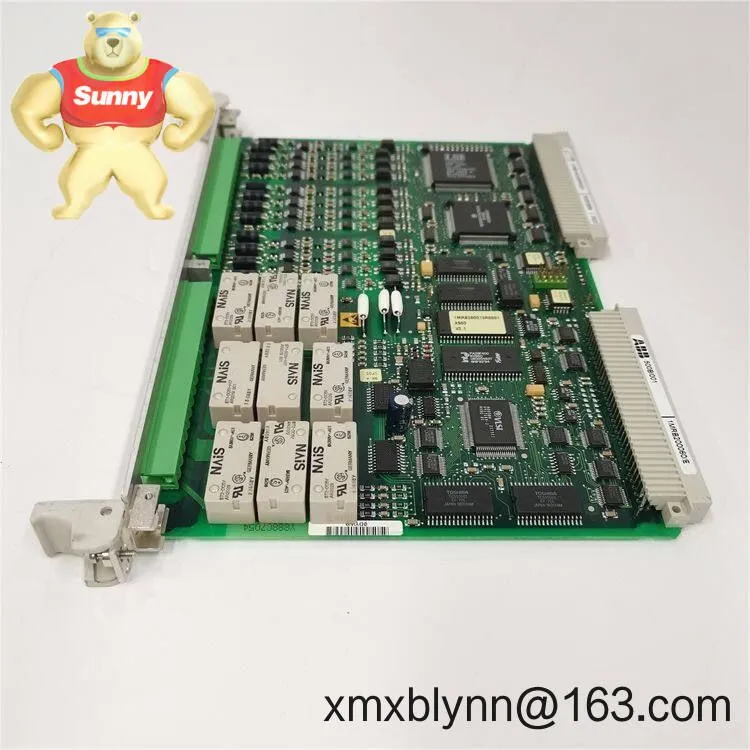

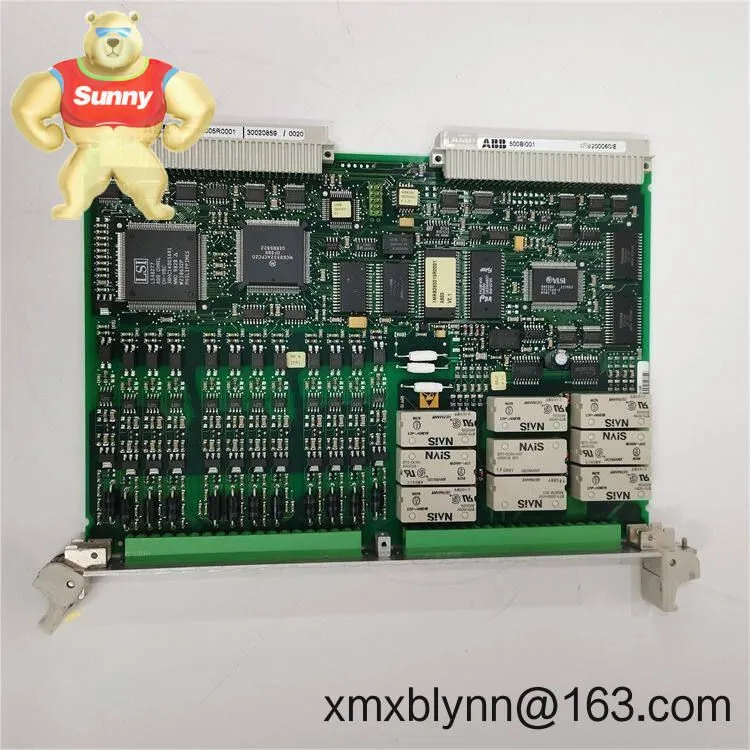

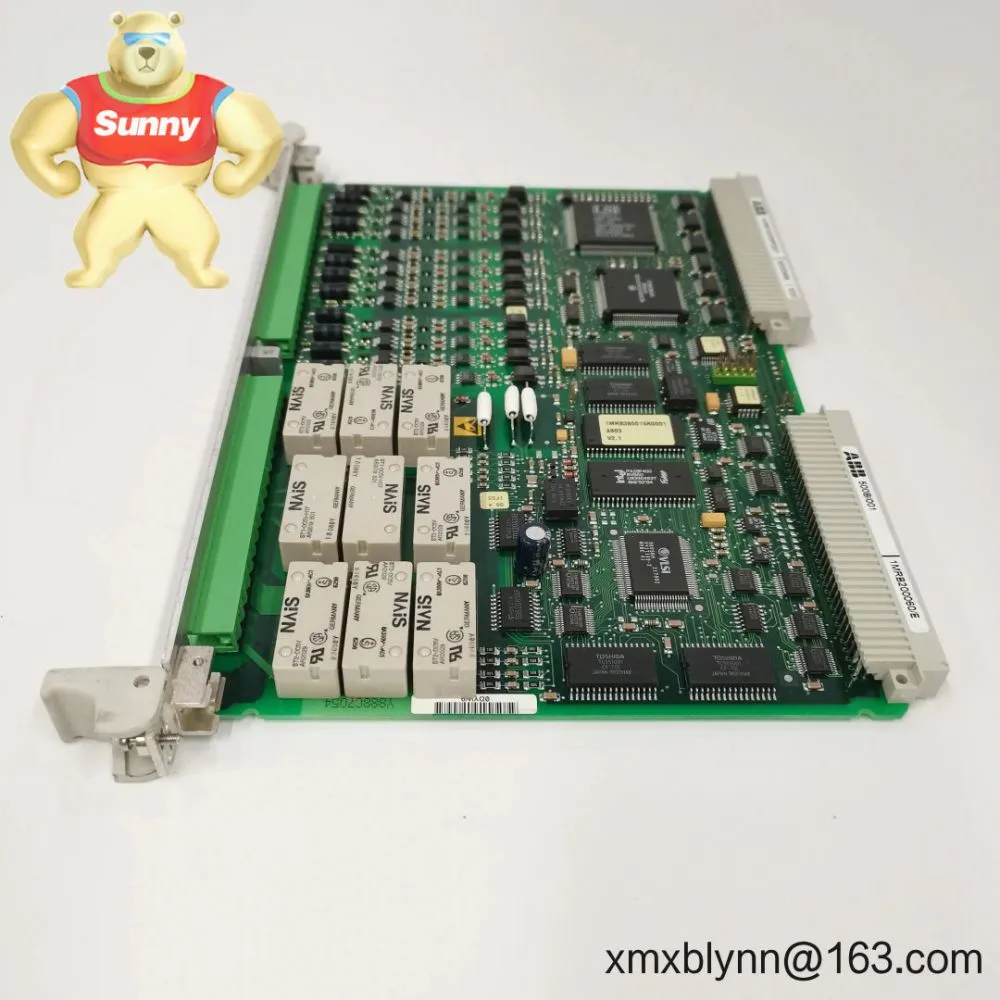

The ABB 500BIO01 1MRB200060/E is a binary input/output board typically used in UNITROL-series excitation systems and related ABB control racks. It handles cabinet-level digital interlocks, alarms, and permissives with the kind of electrical isolation you want in power and process environments. From my experience, it sits at the heart of generator excitation panels, tying the protection, breaker logic, and field forcing sequences together without fuss.
Binary I/O aggregation – Collects cabinet digital inputs (status, trips, permissives) and feeds digital outputs to relays, lamps, or interlock circuits.
24 VDC signaling, opto-isolated – In many cases you’ll see 24 VDC field wiring with opto-isolation to reduce noise coupling and ground loops.
Backplane integration – Communicates with the main controller via the ABB rack backplane; no separate network addressing on the module itself.
Rack plug-in design – Slide-in module for ABB control/excitation cabinets for quick replacement and minimal downtime.
Parameter-configurable behavior – Input debounce, output mapping, and alarm logic are typically configured from the system engineering tools.
Industrial EMC robustness – Designed for substations and generator rooms where switching noise and harmonics are common.
Revision E hardware – 1MRB200060/E indicates an updated hardware revision, which in many cases brings improved component lifetime and stability.
| Brand / Model | ABB 500BIO01 (Part No. 1MRB200060/E), Binary I/O Module |
| Module Type | Digital (Binary) Input/Output board for ABB control/excitation racks |
| Power Requirements | Powered via system backplane; logic typically referenced to 24 VDC I/O signaling |
| Signal I/O Types | Opto-isolated digital inputs; digital outputs (transistor/relay, depending on system configuration) |
| Communication | Internal backplane interface to the controller (no external fieldbus on the module) |
| Installation Method | Rack-mounted, plug-in card for ABB control/excitation cabinets |
| Operating Environment | Designed for control cabinets; typical industrial range 0–55 °C and 5–95% RH non-condensing |
| Compatibility | Used with ABB UNITROL-based excitation and ABB control racks in power generation and process plants |
| Form Factor | Slide-in board; standard ABB slot footprint (serviceable from the front) |
You’ll usually find the 500BIO01 sitting in generator excitation cabinets, auxiliary drives, and turbine control panels where deterministic binary logic matters. Typical sites include:
Power generation (hydro, thermal, gas, and combined-cycle) – breaker status, field flash permissives, emergency trip inputs.
Marine and offshore – generator protection interlocks and alarm fanouts in engine control rooms.
Oil & gas and petrochemical – cabinet interlocks for synchronous motors and excitation back-up logic.
Industrial utilities – tie-line control panels and plant-wide alarm marshaling.
Reliability in harsh rooms – Seems to be very tolerant of electrical noise and cabinet transients, which matters in generator halls.
Lifecycle continuity – As a standard ABB module, it supports long-term serviceability and spares stocking strategies.
Fast swap, minimal rework – Rack plug-in design keeps outage windows short; wiring stays on the cabinet terminals.
Configuration flexibility – I/O mapping and logic are typically handled in the engineering tool, keeping on-site adjustments straightforward.
Compatibility – Plays nicely with ABB excitation architectures, reducing integration risk versus third-party add-ons.
Cabinet requirements – Mount in a properly grounded ABB rack with adequate ventilation; keep ambient within typical control-room limits.
Wiring – Route 24 VDC digital I/O with clear separation from high-voltage/fast-switching cables; use ferrules and label every core for maintenance clarity.
ESD and handling – De-energize the rack, observe ESD precautions, and insert the board carefully to ensure full backplane engagement.
Commissioning checks – Verify input thresholds, output drive type, and mapping; run a simple loop-back or dry-run of trips and permissives before going live.
Routine maintenance – Yearly I/O proof tests, terminal retightening, and cleaning of dust with dry air; firmware configuration backups kept with the project files.
CE-compliant and RoHS-aligned industrial control module (typical for ABB excitation components).
Manufactured under ISO 9001 quality systems.
Manufacturer’s warranty: typically 12 months for new spare parts; extended service options available.
Customer note: a utility client who retrofitted their excitation panel said the 500BIO01 made I/O mapping “much cleaner” because they could keep legacy 24 VDC signals intact while shifting logic into the controller. That matches what we’ve seen on most upgrades.
