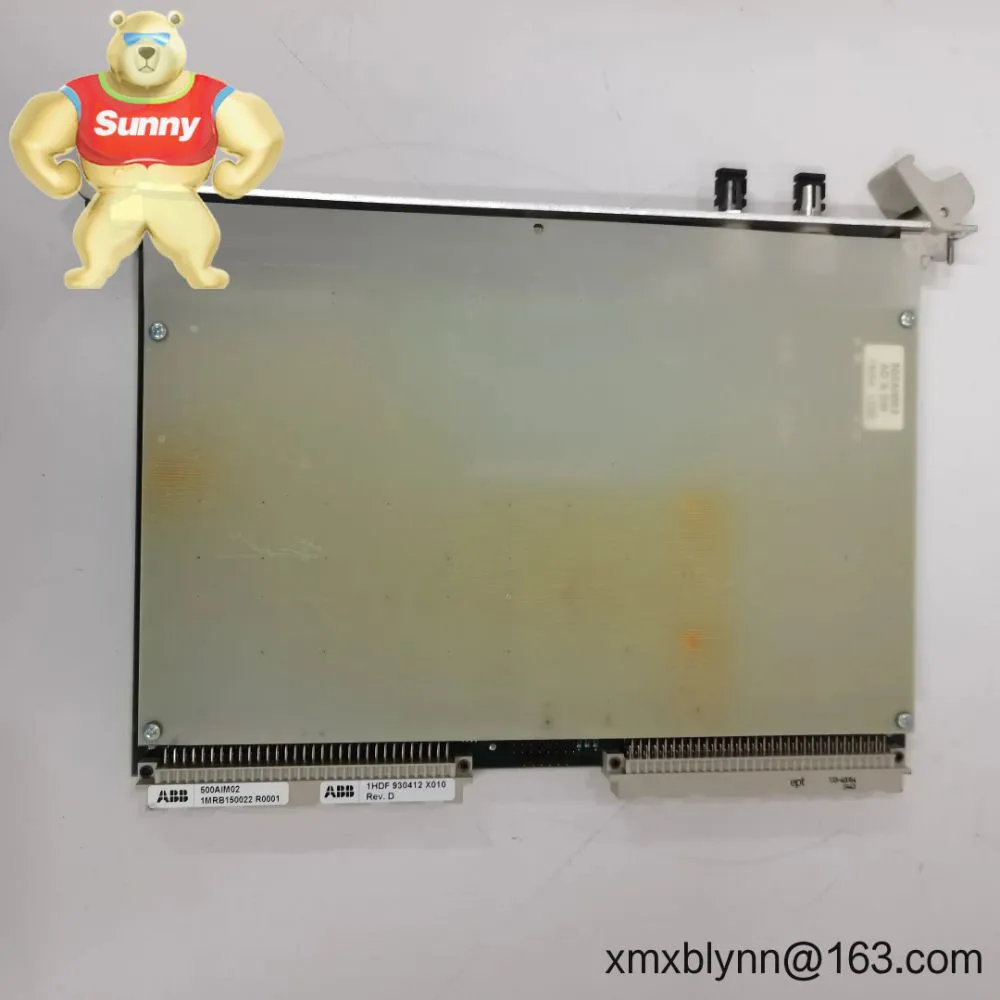

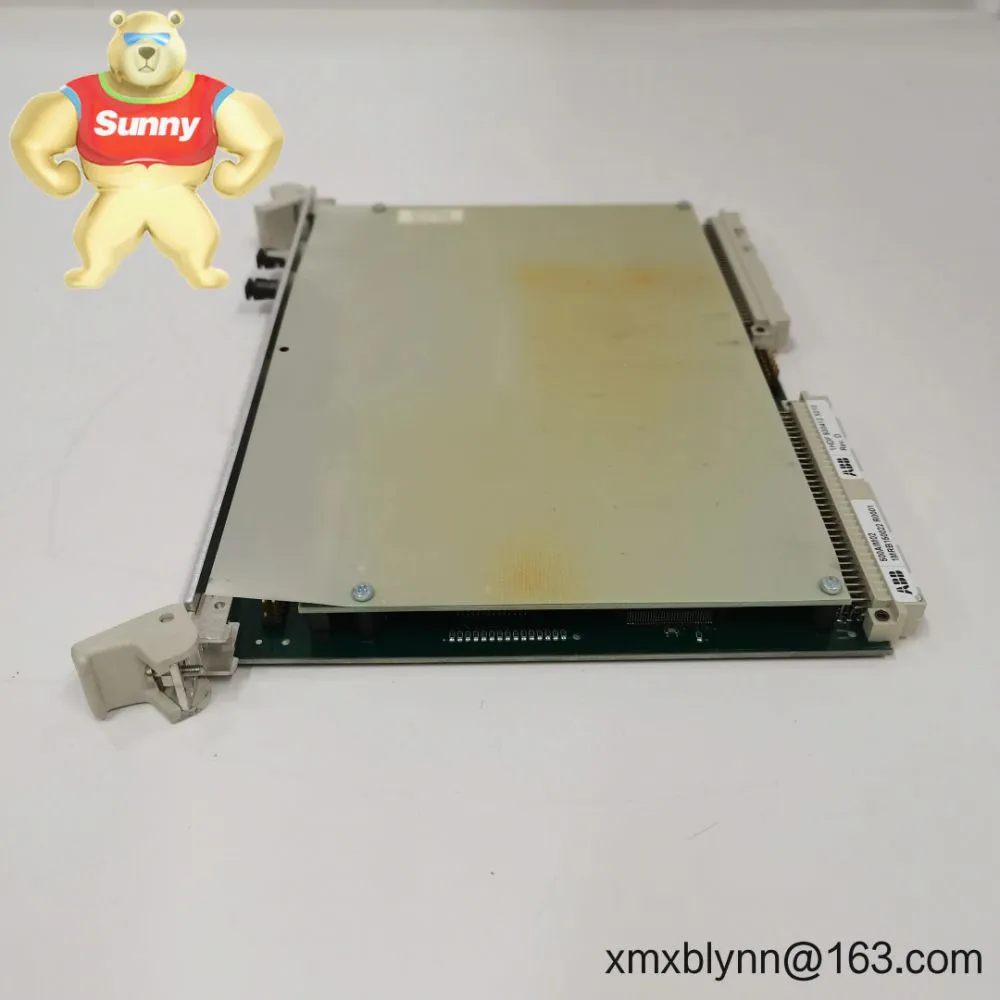

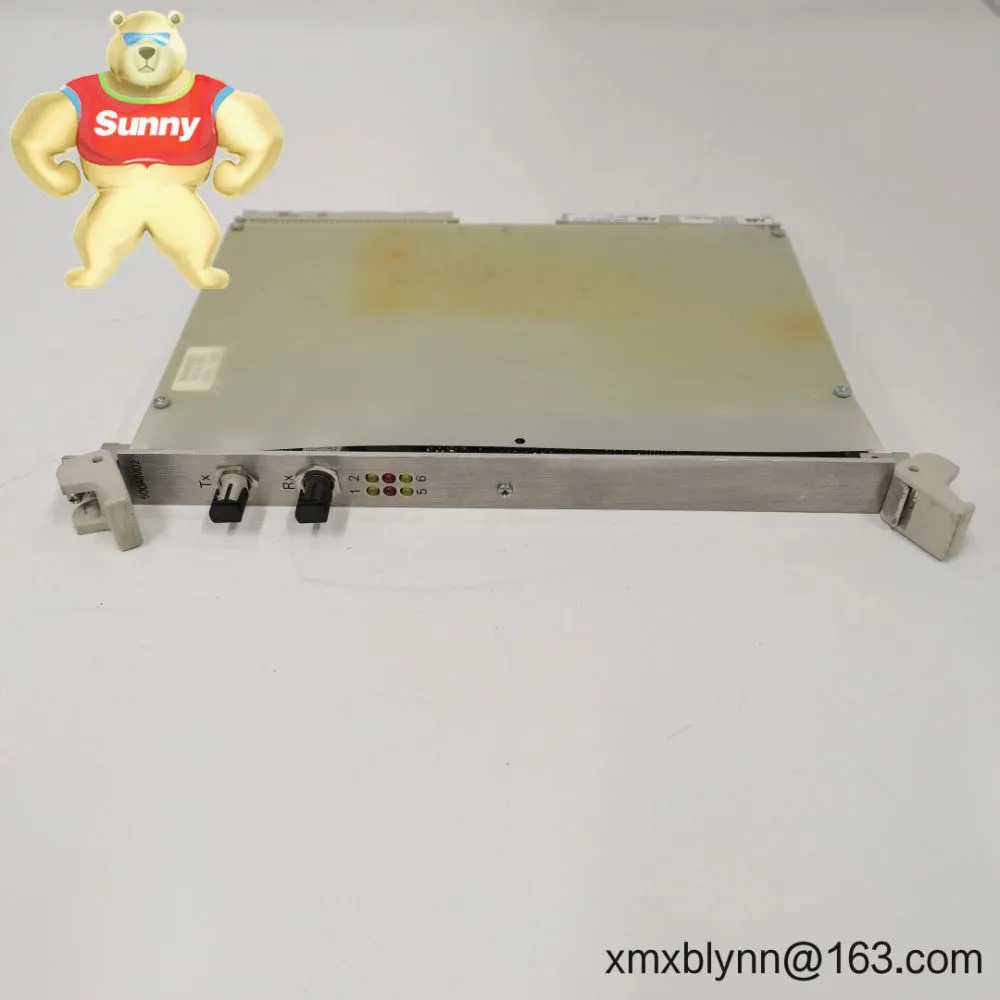

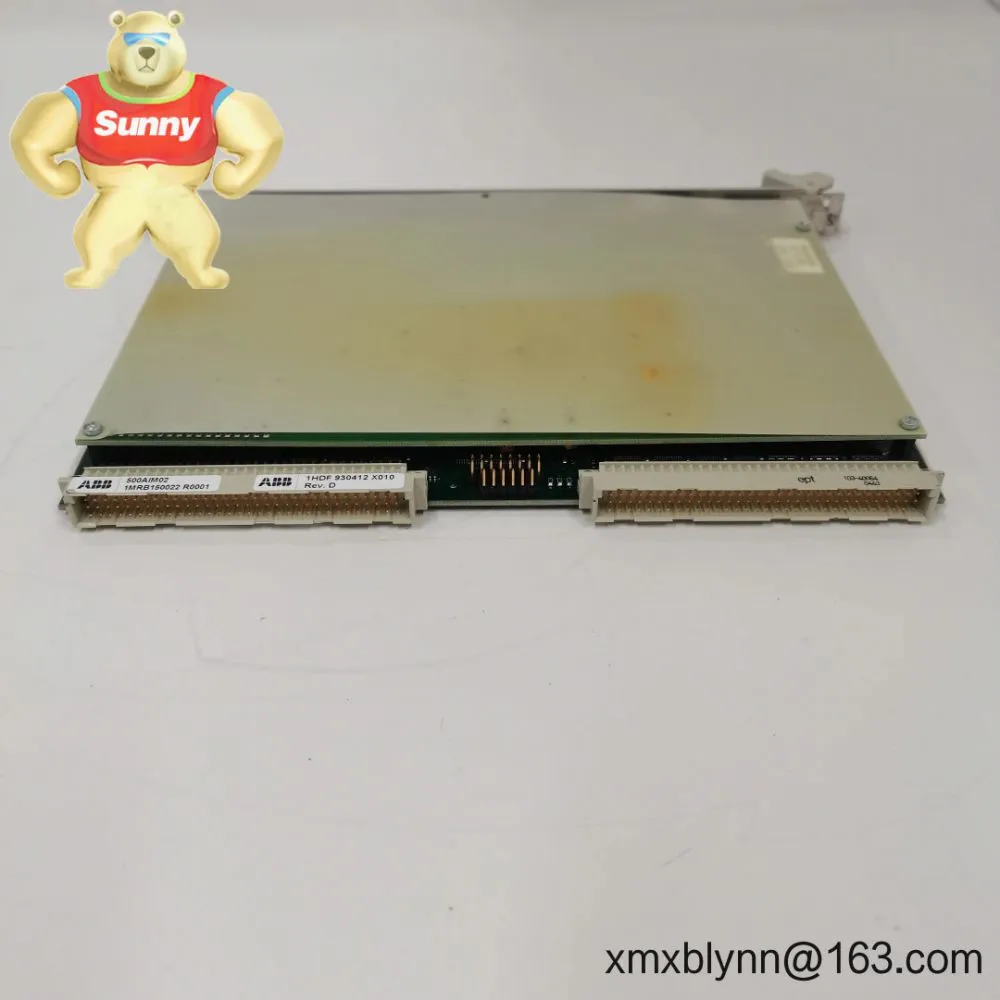

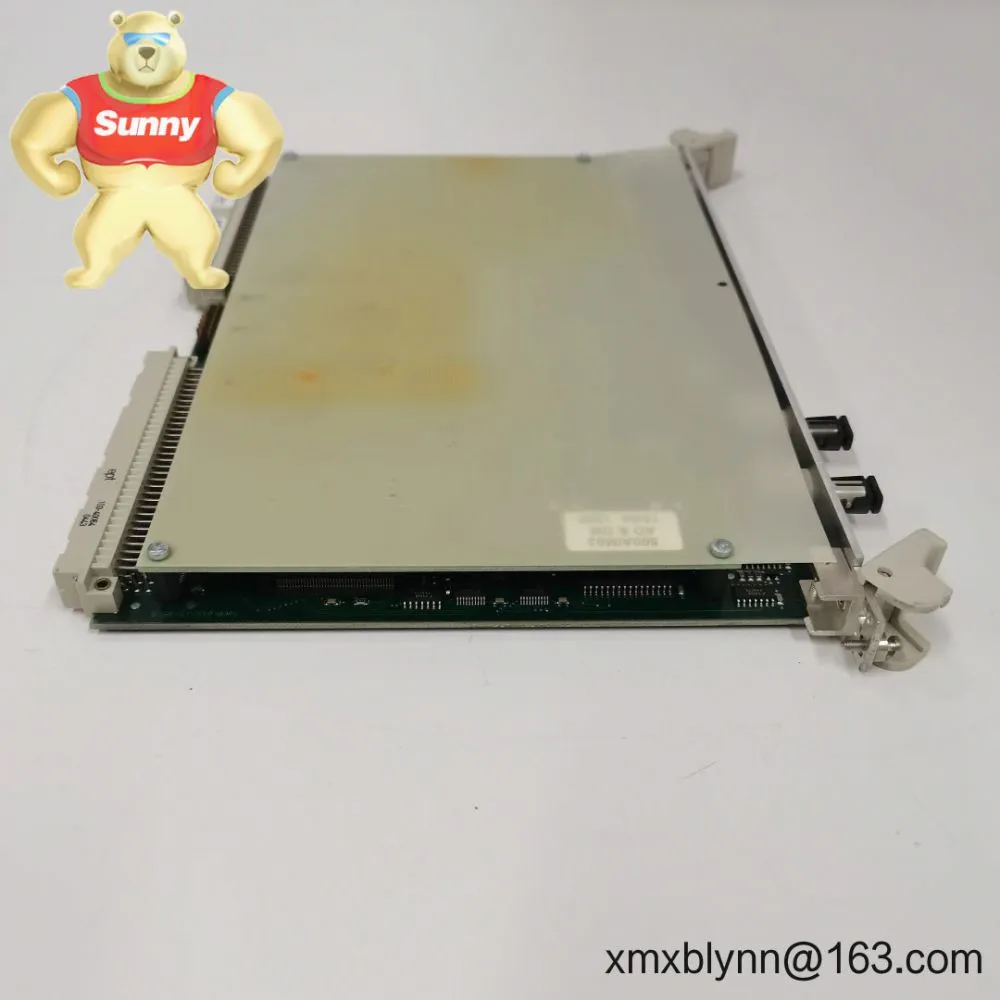

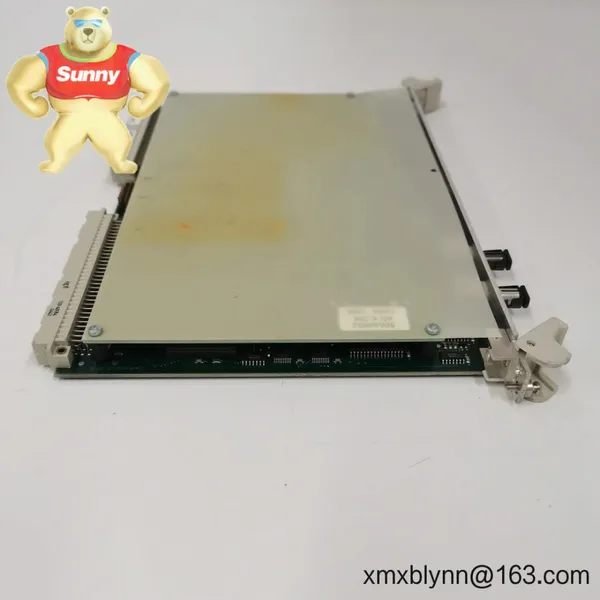

The ABB 500AIM02, order code 1MRB150022R001, is an analog input module designed for ABB 500‑series control system racks. It’s typically used to bring plant analog signals—such as 4–20 mA or voltage ranges—safely into the controller with stable conversion and robust isolation. From my experience, it’s a sensible drop‑in when you’re maintaining legacy cabinets or extending installed capacity without reworking the entire I/O scheme.
You might notice that it slots into standard 500‑series backplanes and follows ABB’s familiar wiring conventions. In many cases, that keeps commissioning time short and avoids tricky field rewiring, especially on brownfield upgrades.
Multi‑channel analog acquisition – Accepts common process signals (typically 4–20 mA and voltage ranges) for clean, consistent data into the controller.
Backplane integration – Communicates over the 500‑series rack bus; no external comms dongles or adapters required.
Galvanic isolation – Channel‑to‑backplane isolation helps reduce ground loops and noise pickup in electrified, high‑EMI areas.
High‑stability conversion – A/D performance is in the 12–16‑bit class typically seen in ABB process I/O, suitable for most control and monitoring loops.
Built‑in diagnostics – Channel health and module status indicators support quick fault finding during commissioning and maintenance.
Service‑friendly form factor – Plug‑in card for 500‑series racks; supports fast swap‑outs with minimal disturbance to the cabinet wiring.
Oil & Gas process units – Bringing transmitters (pressure, flow, level) into legacy ABB 500‑series DCS nodes without redesigning marshalling.
Power generation – Turbine balance‑of‑plant loops and auxiliary systems where stable analog acquisition is key.
Chemicals & refining – Continuous process control with high channel density and consistent scaling across units.
Pulp & paper and metals – Noise‑prone environments where isolation and robust backplane comms really matter.
Drop‑in compatibility – Keeps your existing cabinet layout and terminations; typically no change to loop sheets.
Lifecycle continuity – Ideal for sustaining installed 500‑series assets while planning phased modernization.
Stable measurements – Clean conversion helps reduce nuisance trips and “chasing the PID” in sensitive loops.
Predictable total cost – Reduced engineering hours and minimal rewiring usually translate to lower outage costs.
Support ecosystem – Works with standard ABB diagnostic tools and maintenance routines your team already knows.
Customer note: “We swapped in 500AIM02 cards during a tight outage. No wiring changes, and the loop checks went quicker than planned. Noise on two long runs was much improved after proper shielding and grounding.”
Cabinet environment – Mount in a clean, ventilated control cabinet; maintain airflow around the rack and avoid hot‑spots near power devices.
Wiring practices – Use shielded twisted pair for analog signals; ground shields at one end only. Separate analog from high‑voltage or variable‑frequency drive cables.
Termination hardware – Pair with the correct 500‑series terminal/termination unit; check channel mapping before landing wires.
Safety – Isolate power and de‑energize loops before insertion/removal. Observe ESD handling; use a grounded wrist strap when servicing.
Commissioning – Verify scaling and range (mA/Volt) in the controller. Perform a few loop‑backs or reference checks to validate calibration.
Routine maintenance – Inspect connectors yearly, clean dust with dry air, and review diagnostics. Firmware or configuration updates should follow site MOC procedures.
500‑series termination/terminal base for analog inputs (matching channel count and signal type).
Signal isolators or surge protectors on long field runs or mixed‑potential areas.
Shielded twisted‑pair instrumentation cable, 24 AWG or as per site standard.
Manufacturing quality in line with ABB process automation hardware standards.
CE/UL compliance is typical for ABB 500‑series I/O; RoHS applicability may vary by manufacturing date.
Warranty: covered under ABB’s standard hardware warranty policy for this part number (1MRB150022R001).
If you’re matching this module to an existing rack, feel free to send the rack type and the current I/O list. I can quickly confirm channel compatibility, suggested termination units, and any scaling notes that usually save time during start‑up.
