Home > Electrical & Electronics > Electrical Control System > TRICONEX DI6503 Digital Input Module

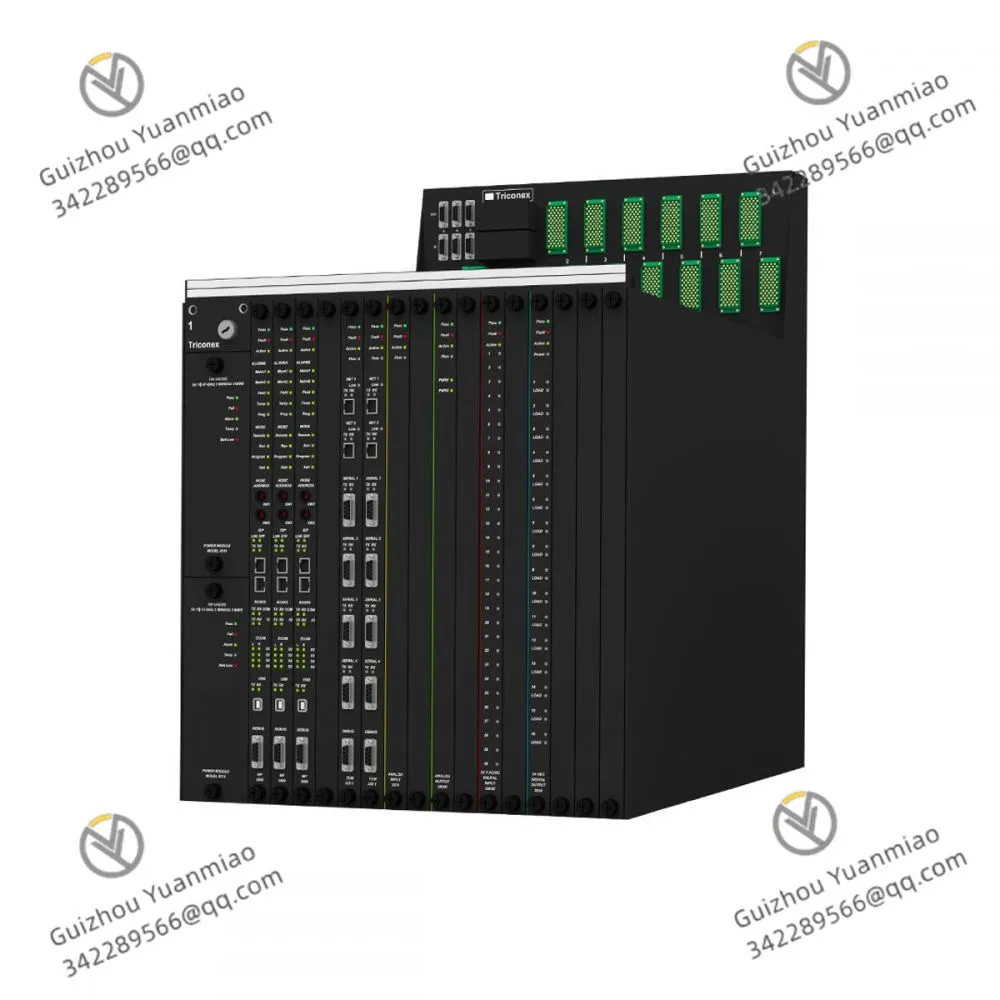

TRICONEX DI6503 Digital Input Module

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Other, Global universal model

Condition:

Other, Global universal model

Task:

Other, Global universal model

Contact Supplier Request Quote Chat Now

Guizhou Yuanmiao Automation Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

guizhou

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Other, Global universal model

Condition Other, Global universal model

Task Other, Global universal model

Mathematical Model Other, Global universal model

Signal Other, Global universal model

Customized Non-Customized

Structure Other, Global universal model

Operating Temperature -40°C ~ 70°C

Relative Humidity 5%~95% (non-condensing)

Dimensions 100mm×160mm×30mm

I. Overview

TRICONEX DI6503 is a high-density safety-grade digital input (DI) module dedicated to Triple Modular Redundant (TMR) Safety Instrumented Systems (SIS). Its core positioning is a "safety-grade multi-measurement-point switch signal acquisition unit - redundant fault detection carrier - fail-safe interface". It is mainly used for centralized acquisition of dry contact/wet contact switch signals in industrial sites (such as equipment status feedback, safety interlock contact signals). Through the TMR architecture of the TRICON system, it implements the full-process safety processing of "three-channel independent acquisition - 2-out-of-3 (2oo3) voting - fault isolation", ensuring the accuracy and continuity of multi-channel signal acquisition, and providing high-density and high-reliability input support for safety control logics such as Emergency Shutdown (ESD) and Fire and Gas System (FGS).

It is designed in strict compliance with the IEC 61508 functional safety standard (supporting up to SIL 3 level) and has three core advantages compared with ordinary high-density DI modules:

High-density redundant acquisition: A single module integrates 32 independent channels, each supporting TMR triple acquisition, balancing the number of measurement points and safety redundancy;
Hardware-level full-channel fault diagnosis: Built-in open-circuit, short-circuit, and channel drift detection circuits with a diagnostic coverage rate of ≥99.5%, enabling real-time localization of single-channel abnormalities;
Industrial-grade harsh environment adaptation: Adopting wide-temperature design, enhanced anti-interference capability, and corrosion-resistant materials, it is suitable for high-temperature, strong electromagnetic interference, and high-humidity scenarios. The Mean Time Between Failures (MTBF) reaches more than 2.2 million hours, making it a core acquisition component for multi-measurement-point safety monitoring scenarios.

II. Technical Parameters

Basic Specifications

Item	Parameter Details
Equipment Type	Safety-grade High-density Digital Input (DI) Module for TRICON System
Compatible Systems	TRICONEX TRICON Triple Modular Redundant Safety Instrumented Systems (e.g., TRICON CX, TS3000 Series)
Functional Safety Level	Compliant with IEC 61508 standard, supporting SIL 3 level (under TMR architecture)
Installation Method	Standard rack slot installation for TRICON (occupies 1 standard module slot)
Overall Dimensions	Standard size for TRICON modules (approximately 100mm×160mm×30mm, suitable for compact rack layout)
Protection Class	IP20 (Installed in the rack, protected against intrusion of solid foreign objects)
Operating Temperature Range	-40°C ~ 70°C (operation); -55°C ~ 85°C (storage)
Power Supply Requirement	Unified power supply from TRICON rack (+5V DC for logic power supply, rated current 0.9A; 24V DC for signal power supply, rated current 1.5A)

2. Performance Parameters

Signal Acquisition Characteristics

Item	Parameter Details
Channel Configuration	32 independent digital input channels, each supporting dry contact/wet contact signals (channel type configurable via software for individual channels)
Input Signal Type	- Dry contact: Passive contact (on/off state, triggered by contact closure/disconnection); - Wet contact: 24V DC active signal (high level ≥18V DC = "1", low level ≤5V DC = "0")
Input Impedance	- Wet contact mode: ≤800Ω (ensures signal driving capability and avoids excessive voltage drop); - Dry contact mode: ≥100kΩ (suppresses leakage current interference)
Response Time	The signal response time of each channel is ≤1ms (from signal change to module output state update), and the synchronous response time difference among 32 channels is ≤0.8ms
Debounce Time	Configurable via software (1ms ~ 200ms), supporting independent setting by channel (e.g., 50ms for high-frequency vibration scenarios, 1ms for stable scenarios)
Overvoltage Protection	Each channel has a built-in 30V DC Transient Voltage Suppressor (TVS) to absorb external transient overvoltage (e.g., 24V power supply fluctuating to 30V) and protect internal circuits

Redundancy and Safety Characteristics

TMR Redundant Architecture: Each input signal corresponds to three independent photoelectric isolation circuits, signal conditioning units, and status detection channels. The collected data is processed by the system's "2oo3" voting logic (valid results are output if the states of any two channels are consistent). A single-channel fault (such as damage to the optocoupler) does not affect the overall signal acquisition, and the remaining two channels still maintain normal voting;
Fault Diagnosis Capability: Capable of detecting 7 types of faults, including "channel open circuit" (no signal for dry contact, wet contact voltage
Safe Output State: When the module detects a severe fault (such as simultaneous failure of two channels or abnormal overall power supply of the module), a single channel automatically outputs a "fail-safe value" (presettable to "0" or "1", default "0", corresponding to the "equipment shutdown/interlock triggered" state) to ensure the correct action of downstream safety logic.

Anti-interference and Isolation Characteristics

Photoelectric Isolation: The signal circuit of each channel and the internal logic circuit of the module adopt photoelectric isolation (isolation voltage 2500V AC for 1 minute) to prevent external signal interference from propagating to the system core;
Electromagnetic Compatibility (EMC): Radiation emission complies with EN 55022 Class B standard; immunity complies with EN 61000-6-2 standard (Electrostatic Discharge ±8kV contact/±15kV air, Electrical Fast Transient ±2kV, Surge ±4kV);
Power Isolation: The 24V DC signal power supply and +5V DC logic power supply adopt an independent isolation design (isolation voltage 1500V DC) to prevent mutual interference from power fluctuations (e.g., 24V fluctuations do not affect the stability of the logic circuit).

III. Functional Features

1. High-density Redundant Acquisition and Safety Voting

32-channel Independent TMR Acquisition: The module integrates 32 channels in a compact size, and each channel is equipped with three independent optocouplers and signal processing circuits. For example, when collecting the "running/stopped" status of 32 pumps, the contact signal of each pump undergoes "2oo3" voting after being collected by three channels. Even if one acquisition channel fails, the real status can still be confirmed through the other two channels, avoiding misjudgment caused by a single-point fault (such as mistakenly judging "stopped" as "running"). At the same time, it meets the space-saving requirement for multi-measurement-point scenarios (reducing 1 slot occupation compared to 2 16-channel DI modules);
Channel Group Management: Supports grouping 32 channels by function (e.g., "Pump Group 1-8 Channels", "Valve Group 9-16 Channels") via TriStation 1131 software. Parameters such as debounce time and fail-safe value can be configured by group to adapt to different types of on-site equipment (e.g., setting 100ms debounce for pump channels with frequent vibration, 10ms debounce for stable valve channels), simplifying the parameter configuration process;
Fault Isolation and Channel Disablement: When a fault (such as a short circuit) is detected in a channel, the module automatically marks the channel as "faulty" and isolates it without affecting the operation of other channels in the same group. It also supports manual disablement of faulty channels (e.g., standby measurement points with long-term faults) via software to prevent them from occupying system resources or triggering invalid alarms.

2. Full-dimensional Fault Diagnosis and Intelligent Alarm

Hardware-level Real-time Fault Detection: Built-in independent fault detection circuits, each channel monitors the signal state and its own health status in real time. For example, when a wet contact channel detects a current >150mA, it is determined as a "short-circuit fault", triggers the channel status light to flash red within 50ms, and sends a fault code (e.g., F05 = Channel 5 Short Circuit) to the HMI. When a dry contact channel detects no signal but the cable continuity is normal, it is determined as "equipment not activated", avoiding false alarms of "open-circuit fault" and improving diagnostic accuracy;
Hierarchical Alarm Mechanism: Supports hierarchical alarms based on fault severity (e.g., "channel fault" is a local alarm, only prompting maintenance personnel for handling; "24V power supply abnormality" is a global alarm, triggering a system-level early warning). At the same time, the HMI displays the fault channel location, fault type, and occurrence time, facilitating quick localization (e.g., "Channel 22 Open Circuit" directly points to the on-site equipment corresponding to Channel 22);
Fault Logging and Tracing: Supports storage of up to 200 fault records (including channel number, fault type, signal value at the time of fault, and recovery time). Logs are stored in power-off protected flash memory (no battery required) and can be exported as Excel files via software for fault root cause analysis (e.g., counting frequent open circuits of channels in a certain area to investigate cable laying environment issues).

3. Industrial-grade Reliability and Environmental Adaptation

Wide-temperature and Harsh Environment Resistance: The operating temperature range of -40°C ~ 70°C covers outdoor cabinets in cold regions (e.g., SIS cabinets at wellheads of northern oilfields) and areas near high-temperature equipment (e.g., beside heaters in refining units), without the need for additional temperature control equipment. The PCB adopts a military-grade conformal coating (moisture-proof, corrosion-proof, dust-proof), extending the service life to more than 12 years in the humid environment (95% RH, no condensation) and oil-gas-rich scenarios of petrochemical workshops;
Enhanced Anti-interference Design: Dual protection of photoelectric isolation for signal circuits and independent isolation for power supplies, which can resist electromagnetic interference generated by frequency converters and high-voltage motors in industrial sites (e.g., no false state transitions of 32 channels under ±2kV electrical fast transient interference). The module housing is made of flame-retardant ABS material (UL94 V-0 grade), which self-extinguishes when exposed to fire, meeting industrial fire protection requirements;
Durable Material Selection: Uses long-life industrial-grade optocouplers (service life ≥100,000 hours @40°C), gold-plated terminals (plugging/unplugging times ≥1000, contact resistance

4. Convenient Operation & Maintenance and Compatibility

Visual Status Monitoring: The front panel is equipped with 32 channel status lights (green steady on = "1" state, green off = "0" state, red flashing = channel fault) + 2 power lights (yellow = +5V normal, blue = 24V normal) + 1 redundancy status light (white steady on = TMR normal). The status of each channel can be intuitively judged without accessing software (e.g., red flashing of Channel 10 indicates a fault in that channel). The channel lights are arranged in groups of 8 for easy quick localization;
Remote Configuration and Testing: Channel parameter configuration (type, debounce time, fail-safe value) and "channel testing" (software-forced input of "1"/"0" signals to verify downstream logic response) can be completed remotely via TriStation 1131 software, without on-site module disassembly or equipment wiring disconnection (e.g., testing Channel 25 corresponding to the "emergency stop button" without pressing the actual button);
Spare Part Compatibility and Hot-swapping: Compatible with other high-density DI modules in the TRICON series (e.g., DI6502), with consistent module size, interface definition, and communication protocol, enabling direct replacement and reducing spare part inventory costs. Some TRICON racks support hot-swapping, allowing module replacement without power-off, and the system maintains TMR operation to avoid production interruption.

IV. Operation, Maintenance and Troubleshooting

Daily Maintenance Points

Status Monitoring: Check the module's operating status via the TRICON HMI daily to confirm that the status of 32 channels is consistent with on-site equipment (no abnormal "1"/"0") and there are no fault alarms. Inspect the indicator lights on-site to ensure the power lights and redundancy light are steady on, and no channel lights are flashing red. Focus on channels corresponding to key equipment (such as the emergency stop button channel);
Wiring and Power Supply Inspection: Monthly check the 24V signal power supply terminals of the module and the wiring of 32 channels (especially the tightness of terminal block screws), and re-tighten the screws (torque 0.5-0.8N·m) to avoid loose wiring caused by vibration (increased contact resistance leading to false open-circuit alarms). Measure the 24V power supply voltage to ensure it is within the range of 22V ~ 26V DC, with a fluctuation ≤±5%;
Debounce and Fault Testing: Quarterly perform "channel debounce testing" (simulating contact bounce signals to verify whether the module filters correctly) and "fault injection testing" (simulating channel open-circuit/short-circuit to verify whether alarms are triggered) via software. Increase the testing frequency (once a month) for key channels (such as safety interlock contacts);
Environmental Control: Ensure the temperature inside the cabinet is within the range of -40°C ~ 70°C. Regularly clean the dust from the module's heat dissipation holes (blow along the heat dissipation direction with compressed air, avoiding vertical blowing to prevent dust from entering the interior). Check the cabinet's sealing to prevent oil, gas, and dust from entering the module terminals and affecting contact performance (e.g., in petrochemical workshops, check the terminal oxidation status quarterly and wipe with alcohol cotton).

Common Faults and Solutions

Fault Phenomenon	Possible Causes	Solutions
Red flashing of a certain channel light (reporting "open-circuit fault")	1. On-site equipment not activated (e.g., valve not closed); 2. Loose channel wiring/broken cable; 3. Lack of 24V signal power supply (wet contact)	Confirm the status of on-site equipment (e.g., manually trigger the valve to check if the contact is closed); 2. Use a multimeter in continuity mode to test the channel cable and re-tighten the terminal wiring; 3. Measure the 24V power supply of the channel. If it is
Multiple channels simultaneously reporting "short-circuit fault"	1. Short circuit of 24V signal power supply bus; 2. Fault in the module's internal power circuit; 3. Mixed cable connection in the junction box (common ground short circuit of multiple channels)	Disconnect the module's 24V power supply, measure the bus insulation resistance (should be ≥10MΩ), and locate the short-circuit point (e.g., damaged cable in the junction box); 2. Disconnect all channel wiring, power on the module independently. If the fault is still reported, it is an internal fault of the module and the module needs to be replaced; 3. Verify the junction box wiring diagram and correct the mixed channel cables (e.g., common line for Channel 10 and 11)
Frequent channel state transitions (debounce time normal)	1. Electromagnetic interference (e.g., proximity to frequency converters); 2. Cable shield not grounded; 3. Contact oxidation (dry contact)	Check the installation distance between the module and the interference source (should be ≥3m), install magnetic rings on the channel cables, or replace with twisted shielded cables; 2. Ground the cable shield at one end (only grounded at the module end, ground resistance ≤4Ω); 3. Disassemble the dry contact equipment contacts, polish the oxide layer with sandpaper, or replace the contacts
24V power light off (reporting "power supply fault")	1. Broken 24V power supply cable; 2. Faulty power supply module; 3. Tripped self-resetting fuse inside the module	Use a multimeter in continuity mode to test the power supply cable and repair the broken point (e.g., loose terminal, broken cable); 2. Replace with a spare 24V power supply module and measure the output voltage; 3. Disconnect the module's power supply, wait for 10s, then power on again, and wait for the self-resetting fuse to reset. If it cannot be reset, replace the module
Redundancy status light off (reporting "TMR fault")	1. Poor contact between the module and the rack backplane; 2. Abnormal +5V logic power supply; 3. System configuration error	1. Pull out the module and reinsert it into the rack, ensuring the contacts are clean and free of oxidation (wipe with alcohol cotton); 2. Measure the +5V logic power supply voltage (should be 4.75V~5.25V) and check the rack power supply; 3. Verify the TMR voting logic of the module in the system configuration
