JCL-CCR-200 MINI Constant Current Regulator

JCL-CCR-200 MINI Constant Current Regulator thumbnail-1
JCL-CCR-200 MINI Constant Current Regulator thumbnail-2
JCL-CCR-200 MINI Constant Current Regulator thumbnail-3
JCL-CCR-200 MINI Constant Current Regulator photo-1
JCL-CCR-200 MINI Constant Current Regulator photo-2
JCL-CCR-200 MINI Constant Current Regulator photo-3
Negotiable MOQ: 1 Combo (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other
Type:
Other
Certification:
CE
Contact Supplier Request Quote Chat Now
Shanghai Lansing Electronics Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Material Other
Type Other
Certification CE
Light Source Other
IP Rating Other
Trademark Lansing
Origin China

Description:

  The Mini Constant Current Regulator (Mini-CCR) is designed to regulate the output current of the airfield load and provide precision control of runway lighting circuits. The ferroresonant core creates a clean sine wave exceeding FAA efficiency requirements and the equipment can be supplied with a wide range of control and monitoring options. These regulators are air cooled and designed for

long life indoor service.

  The Mini CCR can be supplied by 190/250VAC and worked for helipads and small airports and sites where space is at a premium. It’s maximum load is 500W and output current is 2.8-6.6A with 5 levels brightness which can actuate whole category of airfield visual aids lights

  It is a proven reliable regulator, that provides a compact, lighting intensity controller for aeronautical ground lighting series circuits.



Features:

● Simplified design and portable, easy to install and operate;

● Five stage brightness(2.8A-6.6A) selection switch on CCR front panel for local control. Each

● Brightness step individually adjustable by internal potentiometer; and electrics current accuracy

● Suitable for small airports, heliport light constant current regulator, optional mini type for temporary airport lighting regulator;

● Internal with cooling system, reliable operation.

● Power drive circuit with over current and open circuit protection;

● The front panel photocell directly displays the current, which is visible and convenient to operate;

● Input voltage: 110V-230V AC, can self adapt to the input frequency of 47 to 63Hz;

● The output current of each light level can be manually adjusted, and the current difference is

● Applicable for maintenance and measuring of lighting fixtures in Airport lighting stations;

● Electrical isolation deployed on the device, which can be directly connected to halogen lights and

● LED lights by secondary style 7 receptacles;

● Ambient temperature range 0°C to +55°C

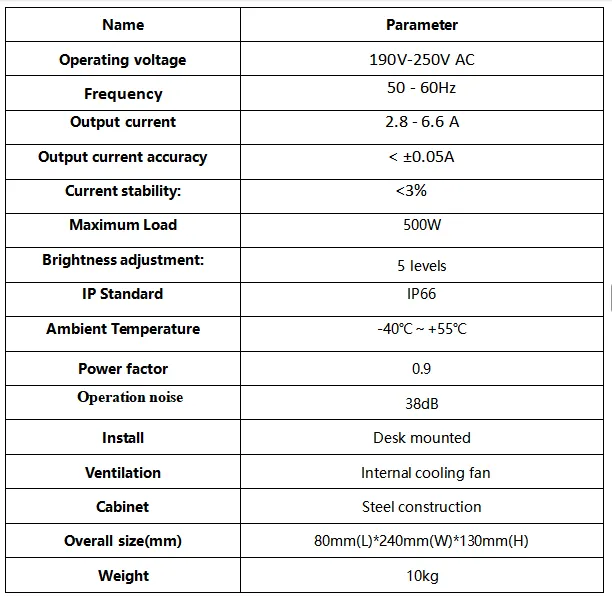

Specification:
