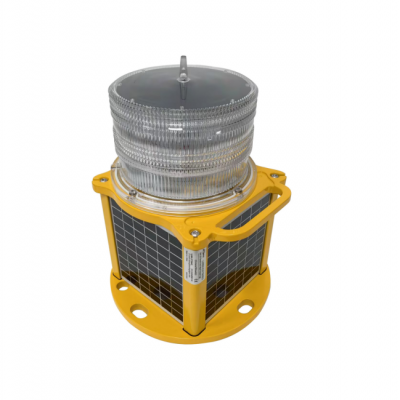

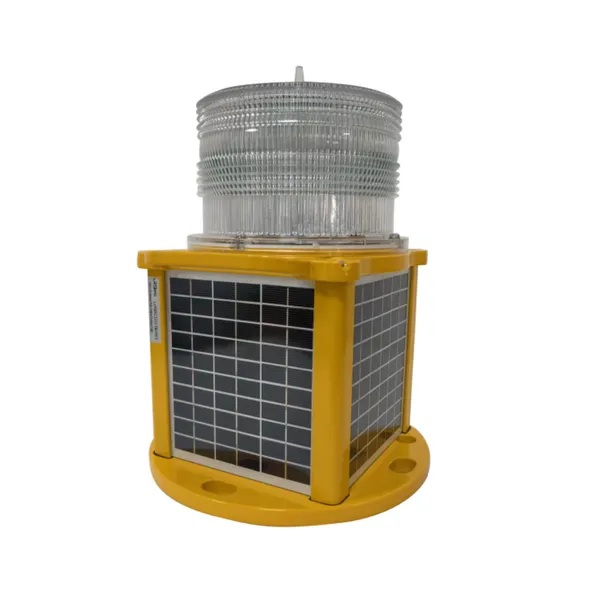

ZS60 LED Solar Elevated Helipad Perimeter Light

Description:

  ZS60 Solar LED Helipad perimeter Light is a solar-powered, completely self-contained LED heliport light designed to meet the standards of ICAO Annex 14 Touchdown and Lift-off perimeter lights and FAA Engineering Brief 87 Heliport Perimeter Light for Visual Meteorological Conditions.

  The fixture is a constant green light upright installing light. Emitting omnidirectional green light at night  with low visibility to indicate the perimeter of heliport take off and land area, to indicate the safe landing area for helicopter pilot. It is controlled by switch in the heliport control cabinet.

  The solar powered helipad light has four 5 watt (20 watt total) premium-grade solar modules integrated into the solar chassis, and mounted to collect sunlight at all angles, which makes it a care-free light unit and with MPPT (Maximized Power Point Tracking) micro-controller enables this model to maximize solar power output and gives over 80 hours of continuous operation at ICAO Annex 14 Touchdown and Lift-off perimeter light intensities.

  The unit is made from tough, impact resistant powder coating aluminum in aviation yellow, providing good protection against harshest environments. . A premium grade solar module is integrated into the assembly and mounted to collect sunlight. The solar array charges the 10Ah battery during daylight hours,and at dusk the light will automatically begin operation,and ZS60 is also available with an on/off switch for storing and protect battery from over-charging and over-discharging.

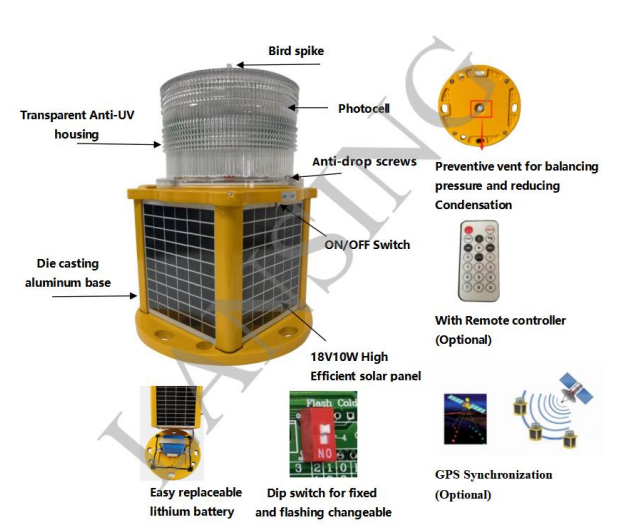

Major functions & features

• Ultra-bright LEDs, reliable light source ensures long lifespan

• Four-side solar panels and integrated MPPT maximize sunlight collection

• Integrated MPPT (Maximized Power Point Tracking) for maximizing sunlight collection

• Automatic night activation

• Integrated SBM (Smart Battery Management) for saving energy to extend autonomy

• Fresnel optical lens provides excellent light distribution

• Lens made from durable, UV-stabilized LEXAN polycarbonate

• Steady burning blue color, horizontal 360º omnidirectional light;

• Over 7 days of continuous operation at ICAO Annex 14

• Aluminum base with powder painted, corrosion-resistant

• Automatically off after being packed for 18 hours

• A handle on the light shoulder makes carrying and lifting easier for deployment

• Protective vent for expelling battery gas and reduce condensation

• Bird spike against birds landing and nesting

• No regular maintenance

• Excellent shock and vibration resistant

• Convenient ON/OFF switch

• Install in minutes

• IP67 compliant

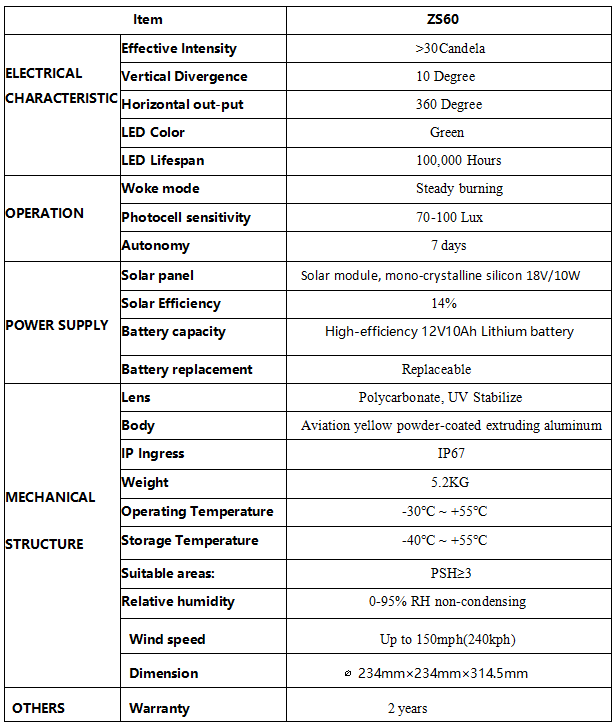

Specifications

Advantage:
