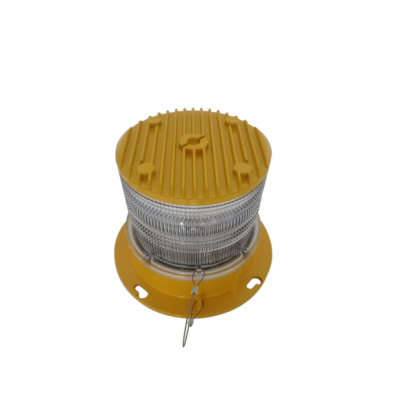

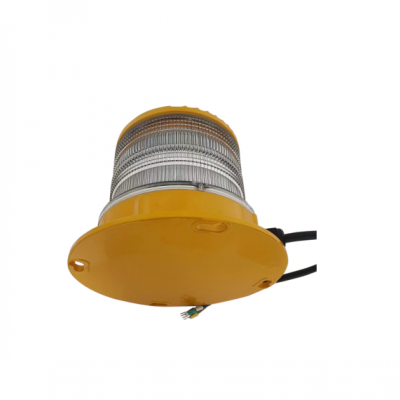

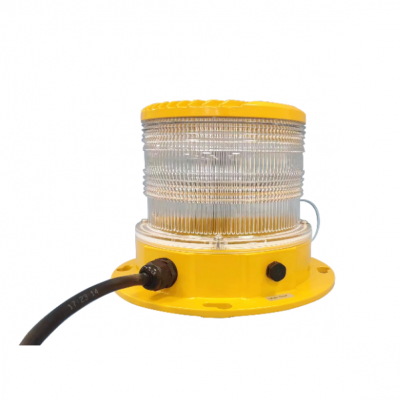

ZG2K L-864 Single Medium Intensity Obstruction Light(Type B or C)

Description:

  ZG2K is a new generation medium intensity OB light. It utilizes state-of-theartoptical design to achieve the most compact, efficient

device in its class. The optical part is based on Fresnel lens, a transformed convex lens which can concentrate light to a small specific angel to meet with ICAO requirements.

  This light integrates a robust mechanical structure, modular electronics  and controls creating the cleanest installation. Its robust,

low power design will provide years of maintenance free service (includes 2 years performance warranty).

  The L-864 has extremely low RF interference, ideal for difficult environments, including “hot” AM towers. This fixture also is capable of accepting AC or DC input power and offers the first ever optional power supply available in the beacon.

  It can work independently with self-controlled configurations (e.g., built- in photocell, alarmrelay, flasher) as an economical

solution. In most cases, one or more ZG2K units group with multiple levels of low intensity obstruction lights as an OB system,

controlled and monitored by a control box.

  This steady or flashing red LED beacon obstruction light is the perfect solution for buildings Wind turbines, towers(cell/broadcast

/other), and similar obstructions.

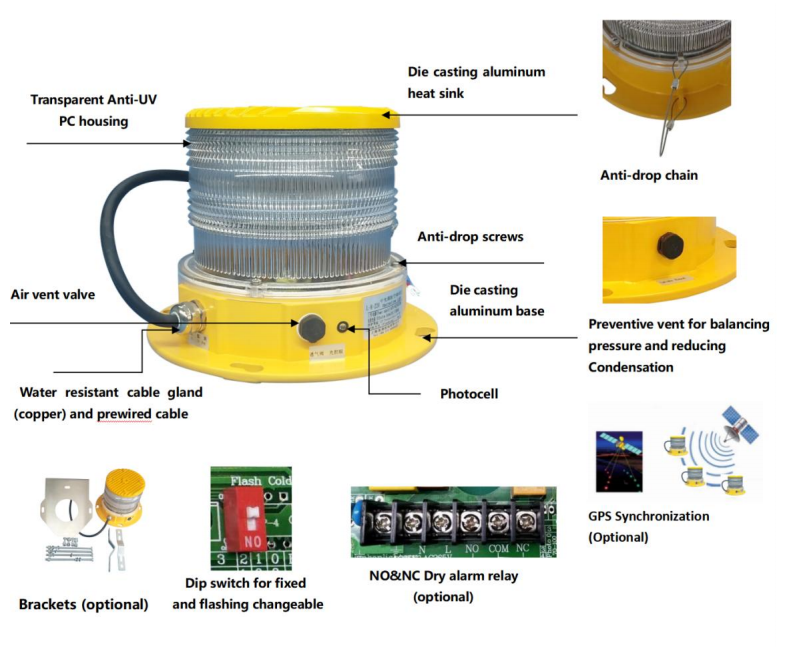

Features& Benefits:

• Based on Led Technologies with low consumption

• Modular design, easy access to all components

• Flash rate adjustable, steady/20-60FPM

• Lens made from durable, UV-stabilized LEXAN polycarbonate

• Aluminum base with powder painted, corrosion-resistant

• Fresnel optical lens provides excellent light distribution

• Internal LED driver and constant current regulator make the light illuminate steadily

• Aluminum heatsink provides excellent thermal dissipation performance

• Protective vent for balancing pressure and reduce condensation

• Stainless steel safety rope protects light head from fall-off during maintenance

• Photocell option for automatic activation at night

• No regular maintenance

• Uses 96% less power than an incandescent light

• With surge protection up to 15KV

• Excellent shock and vibration resistant

• No RF Radiations, EMC Compliant

• Protection: Polarity reverse, overvoltage and short-circuit

• Optional GPS synchronization

• Both NO and NC dry alarm contacts are available, and it will give an alarm in case of power and light failure(optional).

• Simpler cable installation

• 2 years warranty

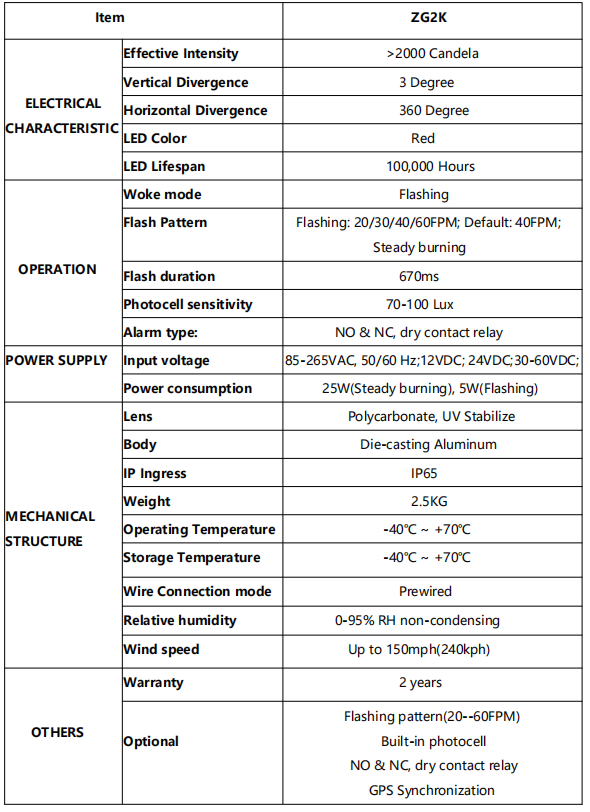

Specifications

Advantages
