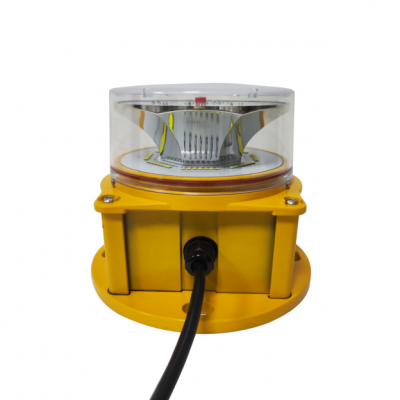

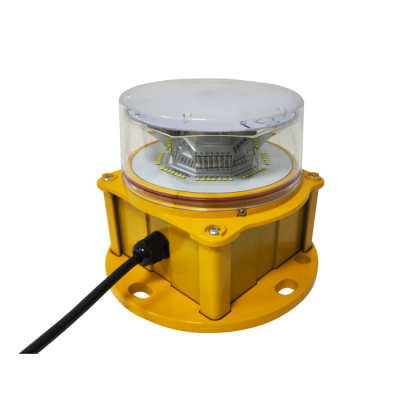

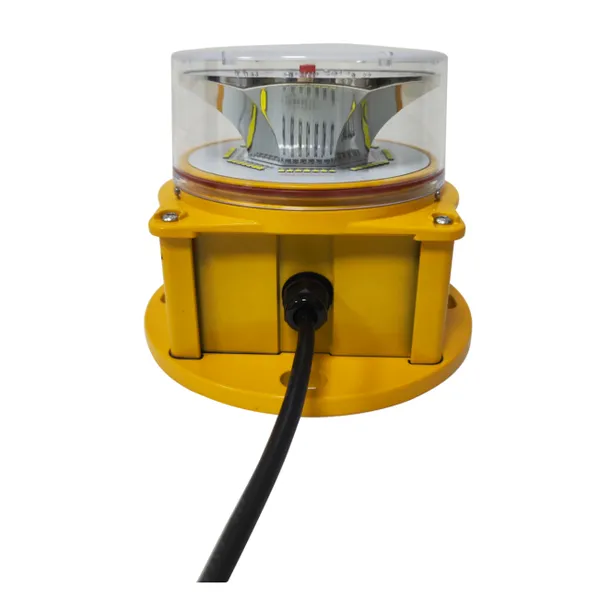

QT2AT L-865 Single Medium Intensity Obstruction Light (Type A)

Description:

  L865 is a dual white/white LED medium intensity beacon and illuminates white light 20,000 candelas at daytime and white light 2,000 candelas at night. L865 model is compliant to ICAO medium intensity type A. It is the perfect solution for ensuring the safety of tall structures. This high-quality obstruction light is specifically designed to provide visual indication to aircraft pilots and ensure they are aware of potential obstacles in their flight path.

  Constructed with durable materials, the obstruction light is built to withstand harsh weather conditions and operate reliably for an extended period of time. With its sleek and low-profile design, it is a discreet addition to any tall structure, while still providing the necessary visibility for aircraft pilots.

  This Type A obstruction light is compliant with ICAO regulations and features a high intensity LED light that ensures maximum visibility, even in low visibility conditions. The light is omnidirectional, emitting a powerful red signal that is easily distinguishable by pilots approaching from any direction.

  Installation of this fixture is straightforward, with easy-to-follow instructions that allow for efficient setup. Once installed, this obstruction light requires minimal maintenance, saving time and resources.

  Ideal for tall structures such as towers, chimneys, cranes, and other high-rise buildings, the light is designed to enhance aviation safety and prevent potential accidents. Whether for industrial, commercial, or residential use,it is a reliable and cost-effective solution for ensuring compliance with aviation safety regulations.

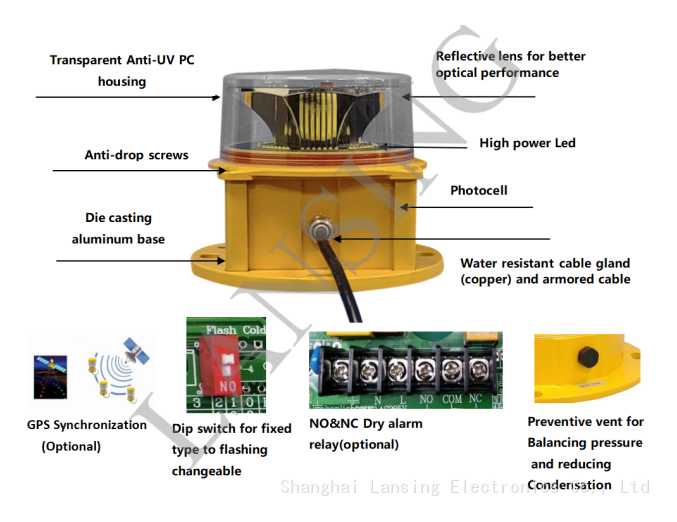

Features& Benefits:

• Based on Led Technologies with low consumption

• Modular design, easy access to all components

• White flashing 20,000cd at day and auto transfer to red flashing 2,000cd at night

• Lens made from durable, UV-stabilized LEXAN polycarbonate

• Aluminum base with powder painted, corrosion-resistant

• Fresnel optical lens provides excellent light distribution

• Internal LED driver and constant current regulator make the light illuminate steadily

• Aluminum heatsink provides excellent thermal dissipation performance

• Protective vent for balancing pressure and reduce condensation

• Stainless steel safety rope protects light head from fall-off during maintenance

• Photocell option for automatic activation at night

• No regular maintenance

• Uses 96% less power than an incandescent light

• Built-in 6KA surge protector module to protect the light from induction lightning strike

• Excellent shock and vibration resistant

• No RF Radiations, EMC Compliant

• Protection: Polarity reverse, over-voltage and short-circuit

• Optional GPS synchronization

• Both NO and NC dry alarm contacts are available, and it will give an alarm in case of power and light failure(optional).

• Simpler cable installation

• Flash rate adjustable, steady/20-60FPM

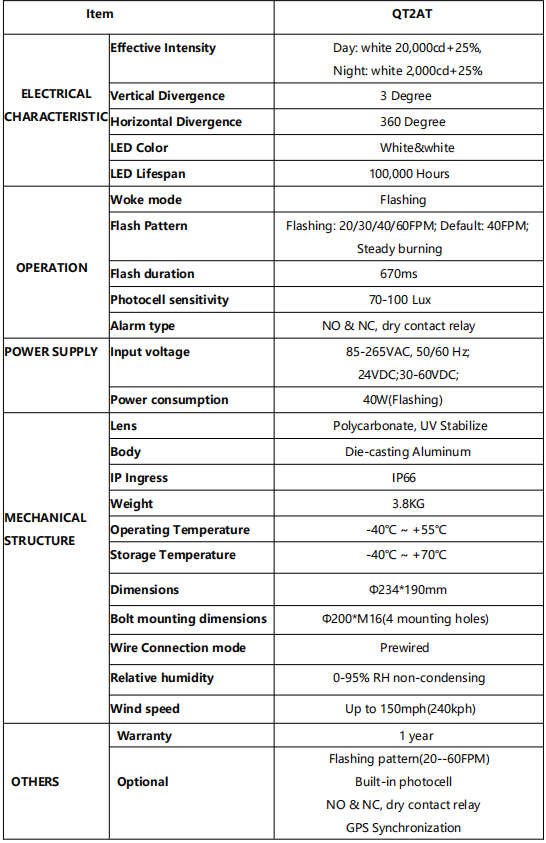

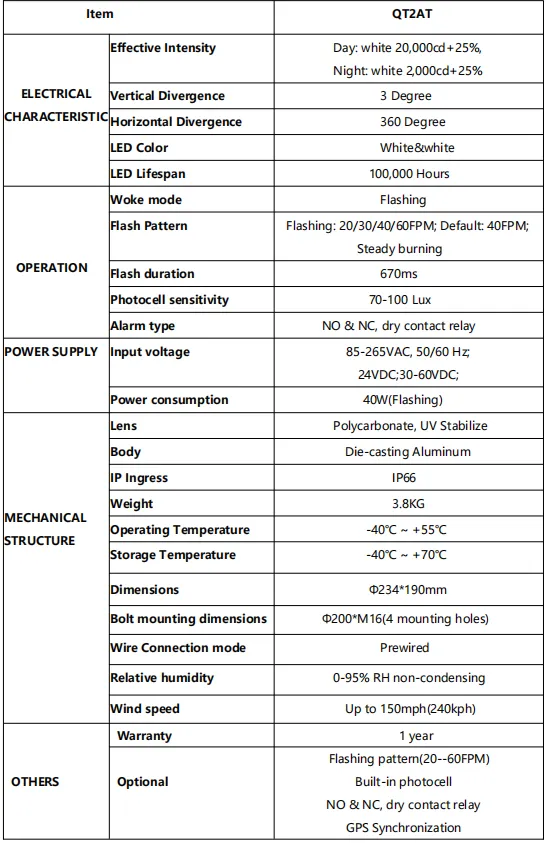

Specifications

Advantages

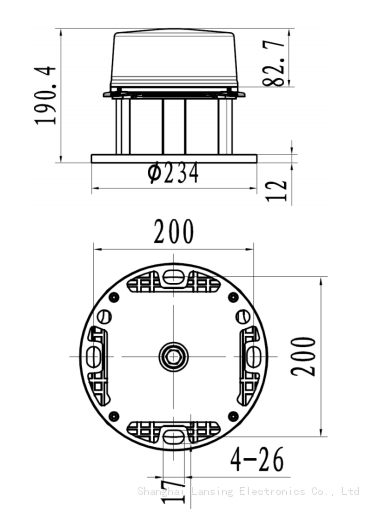

Mounting dimension(mm)
