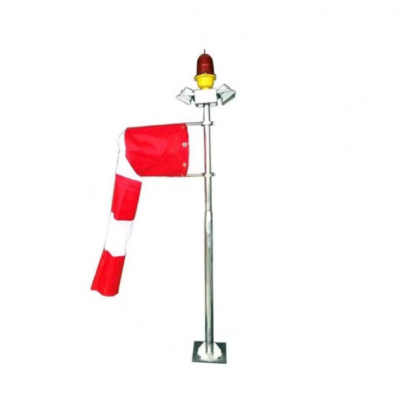

ZS120-L L806 Externally Illuminated Wind Cone

Description:

  Our ZS120-L L806 externally illuminated wind cone is the perfect solution for heliport wind direction indication. This innovative product is designed to provide clear and visible wind direction information to helicopter pilots, ensuring safe and efficient take-offs and landings.

  The wind cone is equipped with high-quality LED lights that provide bright and uniform illumination, making it easily visible even in low light conditions. The use of LED lights ensures energy efficiency and long-lasting performance, reducing maintenance and operational costs.

  It is constructed with durable and weather-resistant materials, making it suitable for outdoor installation in various environmental conditions. Its robust design ensures reliable performance and longevity, even in harsh weather conditions.

  Installation of the Wind Cone is quick and straightforward, requiring minimal maintenance once in place. The product is designed to withstand the rigors of outdoor use, providing a reliable wind direction indication for heliports without the need for frequent adjustments or replacements.

  Our wind cone is designed to meet the specific requirements of heliport operations, providing accurate and visible wind direction information to pilots. Its high-visibility illumination and durable construction make it an essential tool for ensuring the safety and efficiency of heliport operations.

  In addition to its functional benefits, our wind cone also offers a sleek and modern design that complements the aesthetics of heliport facilities. Its low-profile and unobtrusive appearance make it a seamless addition to any heliport environment.

  Each wind cones can be custom designed for various heights, basket sizes and windsock colours, converted for portable applications, outfitted with visible and infrared obstruction lights as required. We also provide various options of customization, such as the integration of a specific logo, a specific size or a specific colour.

Features& Benefits:

● Compliance to FAA and ICAO standard

● The windsock Frame is illuminated internally by an LED lamp to give 75,000-hour life at low energy consumption.

● Weatherproof sealed bearings for smooth rotation and true wind readings

● Dis-mountable windsock and support pole, convenient for transportation and storage.The mast sections are joined by bolts; no welding is required to assemble. The sectional design also means no lifting equipment is required to install the mast.

● Dismantling: a dismantling device on the top of the base, to prevent the damage to the aircraft in case of accident hit to the aircraft.

● Optional fuse bolts for frangibility

● The lamp is shielded from the mouth of windsock to prevent pilot glare, using a stainless-steel shield that rotates with the windsock. Lighting is available for 220V, 120V AC, 48V DC or 6.6A application.

● The illumination is fixed, with the windsock frame and shield rotating around it, for maximum reliability. We do not use a slip ring to transfer power to a rotating light fitting.

● An ICAO-compliant Red LED Low Intensity Obstruction Light can be mounted at the top of the mast.

● The illumination is controlled by a switch mounted on the base post, fitted with a small neon light to help locate it in the dark, a photocell is available if required. The optional obstruction light is controlled directly by a switch to allow it to be left on at all times if required.

● The windsock frame is a low-mass design, fabricated entirely from stainless steel, rotating at 360 degree freely, rugged, reliable and proven operation; The basket-type frame supports the windsock fully open under zero wind conditions.

● All cabling is contained within the mast for protection.

● The mast can be safely raised and lowered by one person using an auto-braked winch. This is fitted as standard to masts 4m or higher, to avoid damage to the windsock when lowering the mast for maintenance.

● A mast lock secures the mast in the upright position once raised, in addition to the winch.

● No special tools or stitching are required to fit or replace the windsock.

● A range of standard sizes from 1.5m to 7m overall height; Other heights available to suit local requirements.

● 100% polyester custom-made material, light, high strength and waterproof, available in standard aviation orange, or in ICAO layout 3 colour and 2 white bands. Other colours or striped/banded versions in different colors and sizes are available.

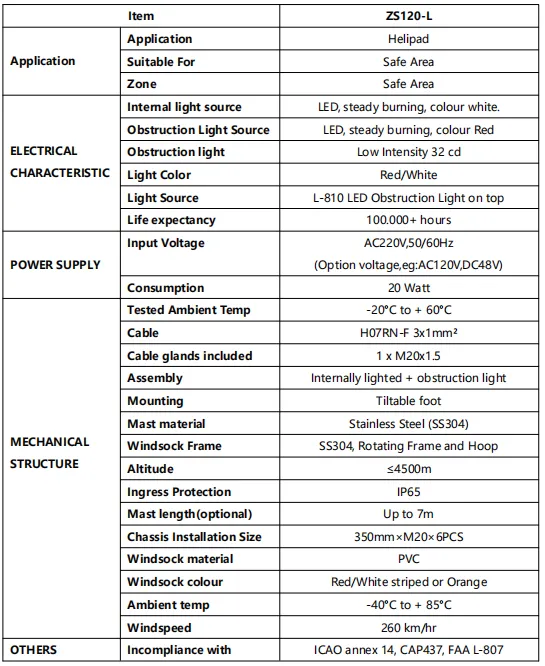

Specifications
