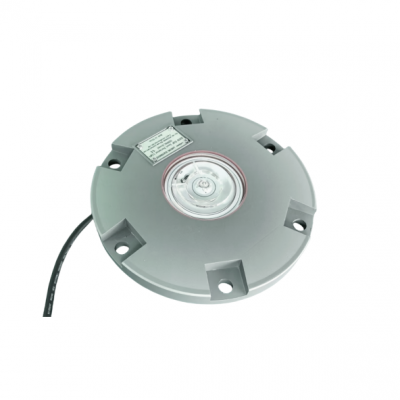

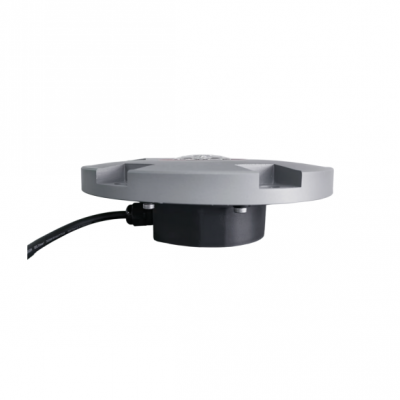

ZS270 Inset Heliport Perimeter Light

Description:

  ZS270 TLOF Insert Perimeter Light shell adopts die casting aluminum, and it is good at waterproof and heat dissipation. The light resource adopt high quality LED and cooperate with advanced optical glass design ,emitting angle meet FAA standard .They are used to mark and illuminate the TLOF as well as to help the pilot locate the pad and safely land during night operations and inclement weather conditions.

  The Inset light is used in place of an elevated heliport perimeter light at locations where the lights are frequently knocked down by aircraft and or maintenance vehicles. These lights are strong enough to drive over without damaging the light.

  The fixture can be powered by the use of a constant current regulator, CCR, the same type used for airfield lighting. However, it is more common to see helipads powered by 230/120 volts AC. This option simplifies and the supply voltage required is available from the local power infrastructure. Should there be a requirement for the fixtures to be powered from a 24VDC supply this option is available upon request

  The new design of this Ground perimeter light is the latest addition to the FEC Heliports line of high quality LED lights. Perimeter and Obstruction lights are one of the most important safety features on your heliport. They are used to mark and illuminate the perimeter of your landing area (TLOF/FATO) to help the pilot locate the pad and safely land during night operations and inclement weather conditions.

  TLOF lighting system is composed by green omnidirectional lights located on the TLOF boundaries: minimum of 14 lights for round areas or minimum 4 lights for square areas (maximum distance between beacons must not exceed 3 meters).

Features& Benefits:

• Hermetically sealed optical assembly to mitigate condensation

• With work stability, strong anti-interference ability and shock resistance

• Engineered and designed to be universally compatible with any existing heliport lighting system

• Mil-spec anodized cast aluminum body suitable for the harshest environments

• With the anti-surge protection device.

• White light - Steady burning

• Pre-wired for quick and easy installations

• Adopt independent encapsulation of high-power LED light source, which has the specific of high light brightness, long service life.

• IP68 compliant, water resistant fixture can be submerged in water for several days and still function properly.

• Impenetrable, factory epoxy potted LED driver and LED board cavity maximizes LED life.

• Waterproof gel wire connectors eliminate the need for crimping tools.

• Low profile, reduces the risk of damage to the fixture.

• Sturdy aluminum construction, stands up to heavy use.

• Standard hard anodized finish extends fixture service life.

• No RF-radiations

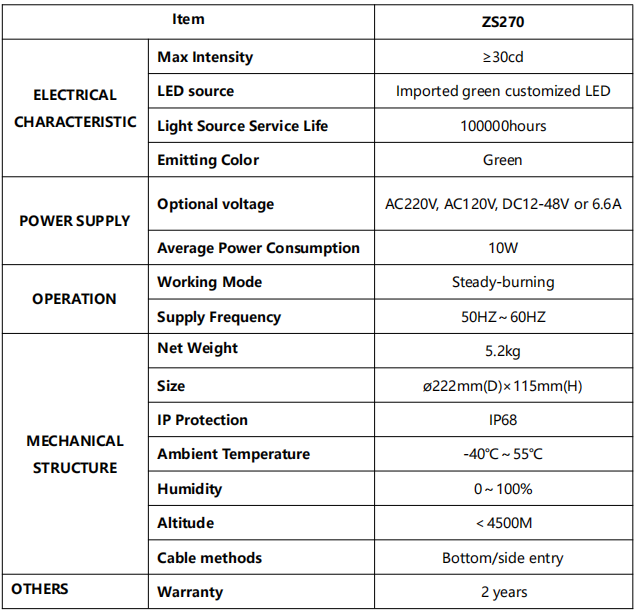

Specifications

Mounting Dimension(mm)

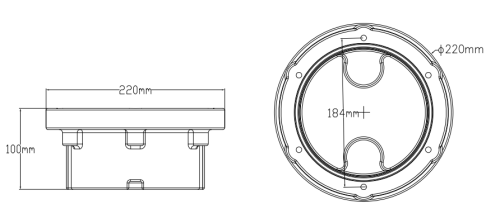

SIDE ENTRY

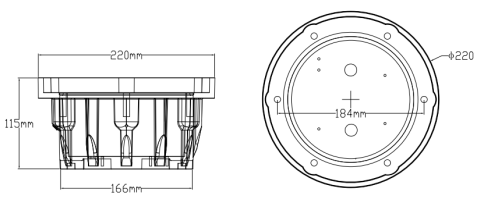

  BOTTOM ENTRY
