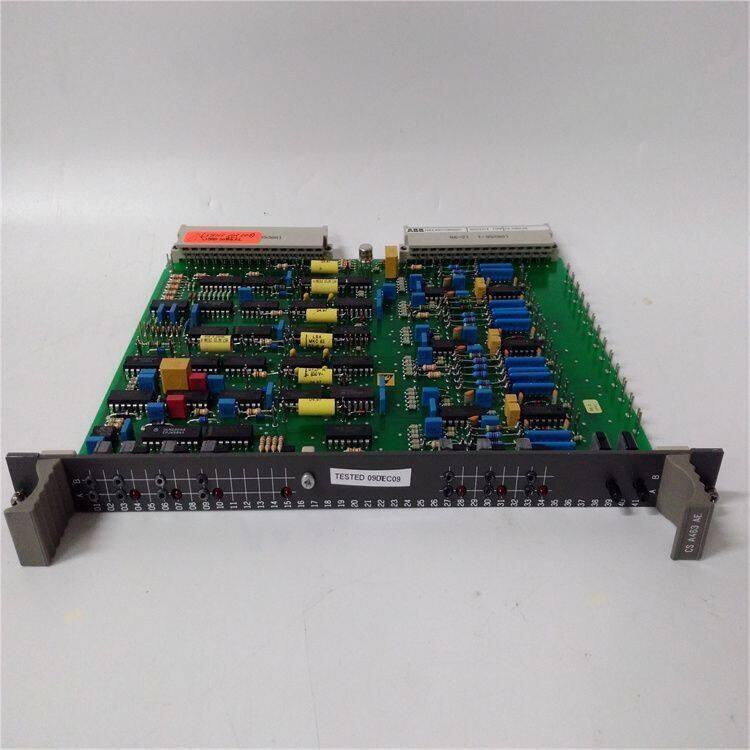

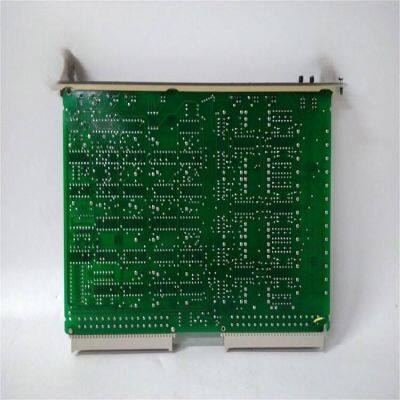

ABB CSA463AE HIEE400103R0001 – Controller/Communication Module for Legacy ABB DCS Racks

The ABB CSA463AE (ordering code HIEE400103R0001) is a plug-in controller/communication module used in classic ABB distributed control systems, typically within Procontrol/Advant era racks. It is commonly applied as a system-bus interface or controller-side communication card, helping bridge central processors with I/O subsystems and plant networks. In many cases it’s selected as a like-for-like replacement to keep installed systems running reliably without re-engineering.

• Proven rack-mount Eurocard design – Slide-in card fits ABB DCS backplanes for quick swap-outs, minimizing downtime during maintenance.

• Deterministic system-bus handling – Coordinates controller communications with stable cycle times, which is crucial for process integrity.

• On-board diagnostics – Status LEDs and self-check routines make fault localization faster; technicians typically confirm health at a glance.

• Backplane-powered – Draws low voltage DC from the rack power supply, reducing external wiring complexity.

• Long lifecycle support – Often used for plant life-extension programs where full DCS migrations aren’t practical yet.

• Compatible with established ABB architectures – Works within legacy ABB controller families where HIEE-series modules are specified.

From my experience, CSA-series modules like this sit at the heart of continuous process industries where uptime matters more than feature novelty. You’ll typically see them used in:

• Power generation (boiler/turbine islands, balance of plant coordination)

• Oil & gas (refining, gas treatment skids, compressor stations)

• Chemicals and petrochem (reactor trains, utilities, tank farms)

• Metals & mining (furnace areas, rolling mills auxiliaries)

• Pulp & paper (stock preparation and recovery boiler sections)

A plant engineer recently mentioned they swapped a CSA463AE into a redundant pair over a scheduled outage; the controller failover was seamless, and commissioning time ended up shorter than planned.

• Reliability that fits legacy fleets – Keeps brownfield ABB systems stable while you plan phased upgrades.

• Compatibility with existing racks – No cabinet redesign or field rewiring in most cases; that’s where the real cost savings come from.

• Predictable performance – Deterministic bus behavior supports tight process loops and trip logic.

• Serviceability – Front-panel indicators and standardized form factor help technicians replace and verify quickly.

• Lifecycle strategy – Ideal as a spare part for critical assets, mitigating obsolescence risks.

• Cabinet and rack: Install in the designated ABB backplane slot; follow the rack’s keying to avoid misplacement. Maintain adequate ventilation; most sites keep cabinet ambient below 40 °C for margin.

• Power and grounding: Ensure the rack PSU is within spec (typically 24 VDC bus) and cabinet grounding is intact to minimize noise on system lines.

• ESD handling: Use wrist straps and antistatic bags. These boards are usually conformal-coated, but sensitive components can still be stressed.

• Commissioning: After seating the module, check front-panel LEDs and controller diagnostics. Load or verify the correct firmware/configuration for your system revision if applicable.

• Routine maintenance: Visual dust inspection every 6–12 months; clean with dry air. Review system logs for intermittent comms alarms. Schedule firmware/config audits annually when site procedures allow.

• Spares strategy: Keep at least one tested spare on the shelf for redundant nodes; it seems to be the most economical insurance for continuous-process plants.

• Compliance: ABB industrial control modules in this family commonly carry CE and EMC compliance; UL/CSA recognition may apply depending on the exact rack system and revision.

• Manufacturing standards: Produced under ABB quality systems (ISO 9001). RoHS applicability varies for legacy hardware; check your specific revision if this is mandatory.

• Warranty: Manufacturer coverage follows ABB policy for the product generation; many industrial distributors provide 12‑month warranty on supplied parts—confirm terms for your purchase.

Users often pair the CSA463AE with the corresponding rack power supply unit, controller CPU cards in the same family, and the I/O interface modules on the same backplane. If you’re planning a refresh, it’s worth checking backplane connectors, retention hardware, and any front-panel cable assemblies so the swap goes smoothly.
