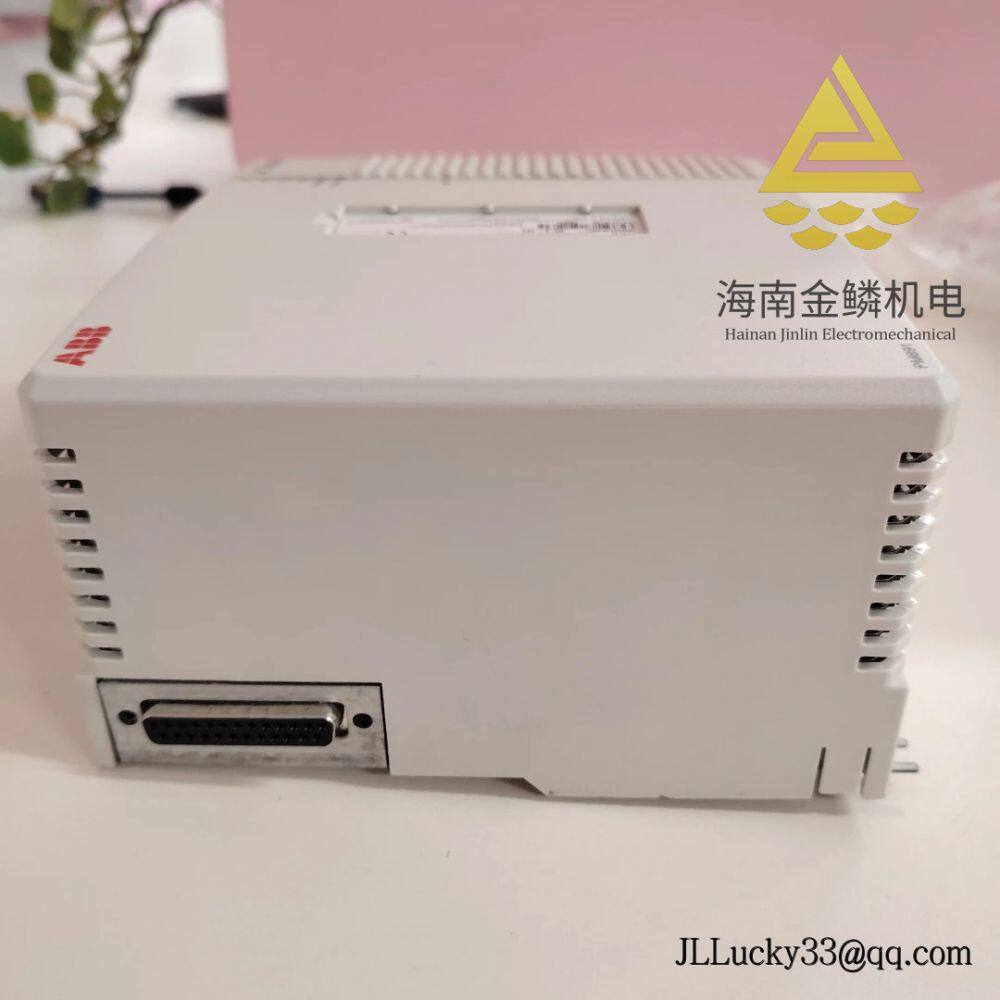

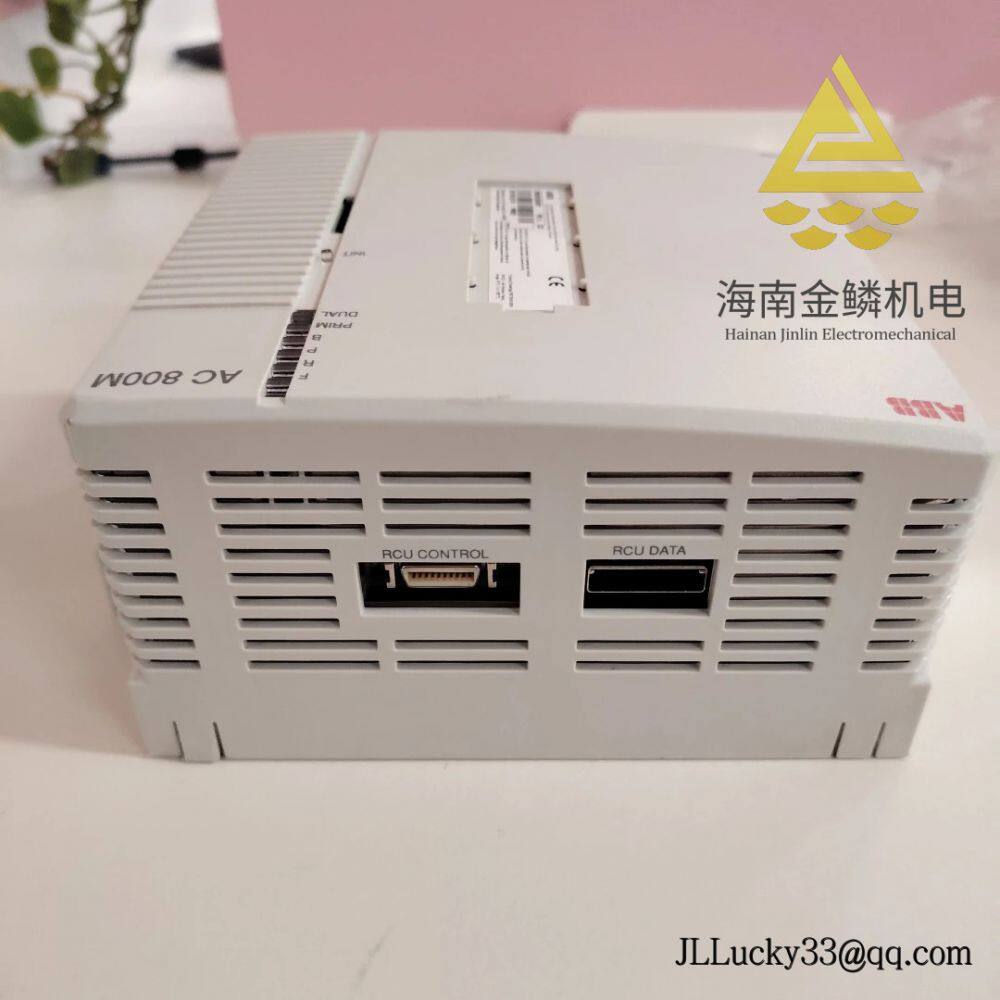

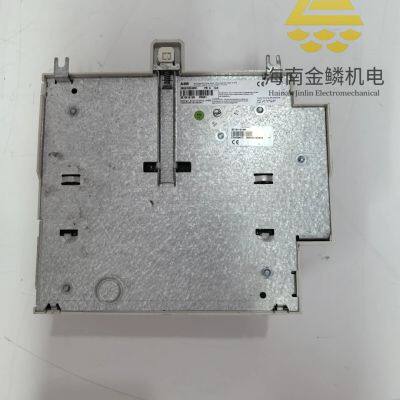

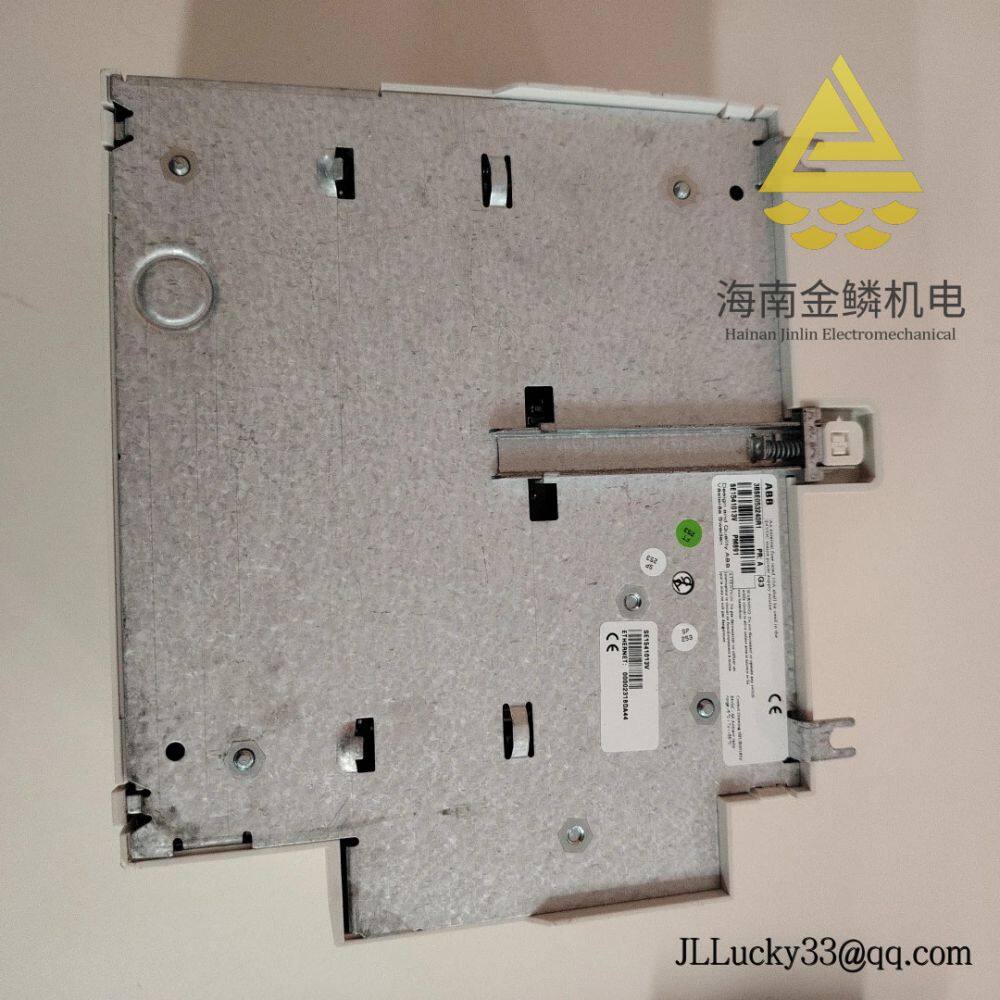

ABB AC 800M PM891 (3BSE053240R1) – High‑performance CPU Module for Demanding 800xA Control Tasks

The PM891 is the top-tier controller CPU in the ABB AC 800M family, designed for heavy process control, high-speed logic, and large application footprints. It’s typically chosen when you need controller redundancy, fast cycle times, and a broad mix of fieldbus integrations in 800xA environments. From my experience, plants use PM891 to consolidate multiple mid-range CPUs into one high-availability node.

• High-performance CPU for AC 800M – Handles large control applications and tighter scan cycles without stability trade-offs.

• Controller redundancy support – Hot-standby pairing for high availability; switchover is typically seamless for process I/O.

• Dual Ethernet (10/100Base‑T) – For 800xA system integration, engineering access, and plant network segmentation; supports redundant network topologies.

• Serial service port – Convenient commissioning, diagnostics, and local maintenance.

• Flexible I/O architecture – No onboard I/O; connect S800/S800L/S900 remote I/O and drives via ModuleBus and optional communication interfaces.

• Expandable via CEX-bus modules – Add interfaces like PROFIBUS DP, Modbus (TCP/RTU), PROFINET, or EtherNet/IP using ABB communication modules.

• Deterministic control – Designed for stable execution cycles in continuous and batch process control.

• Rugged design – Industrial temperature rating and noise immunity for cabinet or MCC environments.

• CompactFlash application storage – Simplifies firmware management, backups, and quick recovery.

• Time synchronization – NTP/SNTP support to align process events and sequence-of-events records.

PM891 is typically deployed in continuous process industries where uptime is the baseline: oil & gas, petrochem, bulk chemicals, pulp & paper, power generation, and water treatment. It’s also a solid fit for large batching systems and high-speed material handling where deterministic scan times matter. You might notice it particularly shines when a single controller needs to coordinate multiple fieldbuses and thousands of I/O points.

“We replaced two older CPUs with a redundant pair of PM891s. Engineering downloads were faster than expected and our batch cycle time dropped by ~12%.” — Maintenance Supervisor, specialty chemicals (shared feedback)

• Higher headroom – Room to grow applications without re-architecting the controller layout.

• Lifecycle continuity – Designed for 800xA, keeping engineering, diagnostics, and asset libraries consistent across the site.

• Flexible networking – Built-in Ethernet plus modular comms to slot into most plant topologies.

• Reliability – Redundancy options reduce unplanned downtime; robust firmware and long service life in most cases.

• Procurement efficiency – Standard AC 800M ecosystem components; easier spares, training, and support alignment.

• Cabinet & mounting – Install on the AC 800M base unit with proper DIN-rail alignment. Allow front clearance for CompactFlash access and wiring.

• Power & grounding – Use a regulated 24 V DC supply with protective earth. Keep clean power separated from high-noise loads.

• Ventilation – Maintain airflow; avoid hotspots. Typical ambient 0–55 °C; keep below dew point to prevent condensation.

• Wiring – Shield and segregate Ethernet/serial from high-voltage cables. For redundancy, route primary/backup networks in different paths.

• Commissioning – Load firmware and application via Control Builder M; verify NTP time sync and controller identity before enabling I/O.

• Routine maintenance – Periodic backups of the CompactFlash, verify diagnostics, review CPU load/scan time, and plan firmware updates during scheduled windows.

• Spare strategy – Keep at least one tested spare PM891 and a pre-imaged CompactFlash for quick swap, especially on redundant systems.

•


• CE compliant; typically cULus Listed for industrial control equipment

• RoHS compliant; manufactured under ISO 9001 quality systems

• Standard manufacturer warranty applies; extended service and lifecycle support available through ABB channels

• AC 800M power/base units and accessories (24 V DC)

• Communication modules (e.g., PROFIBUS DP, Modbus TCP/RTU, PROFINET, EtherNet/IP via CEX-bus)

• S800 or S900 remote I/O families for flexible field wiring

• Industrial Ethernet switches with redundancy support (RNRP-ready networks in 800xA architectures)
