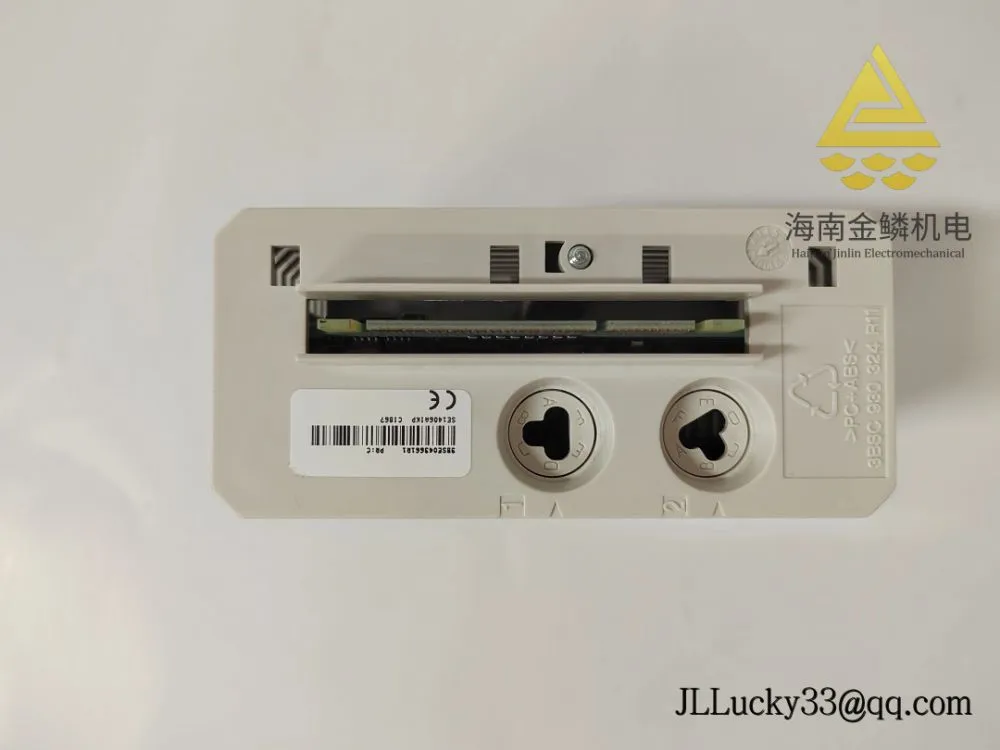

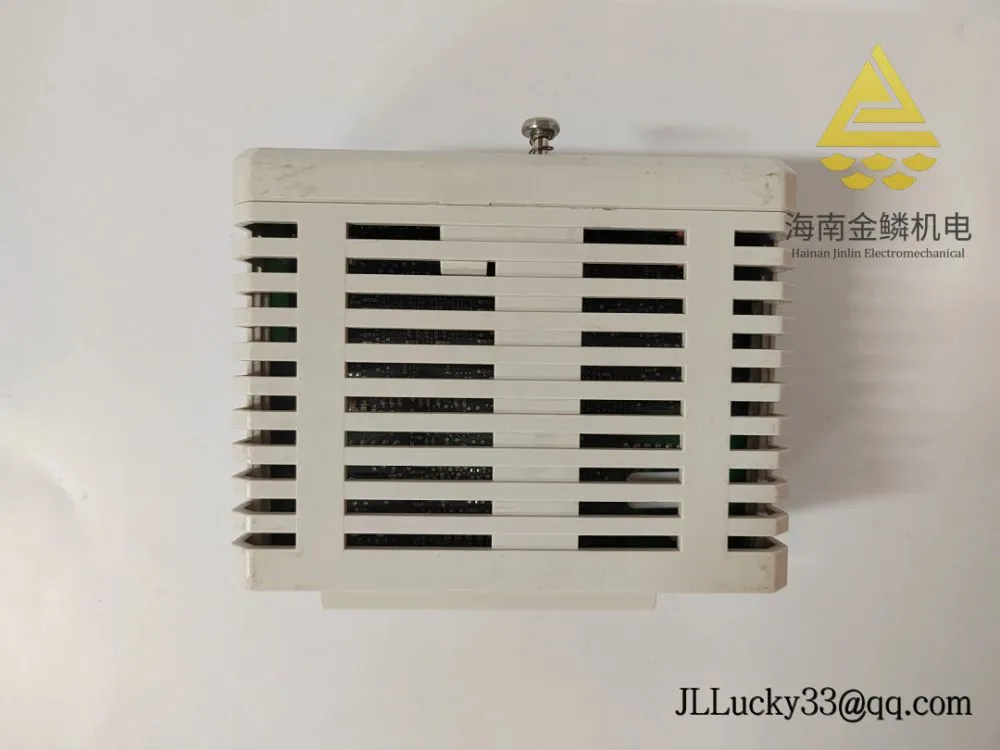

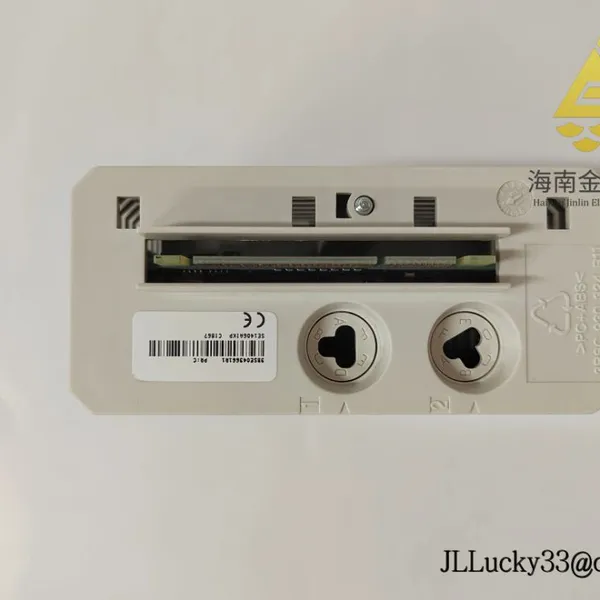

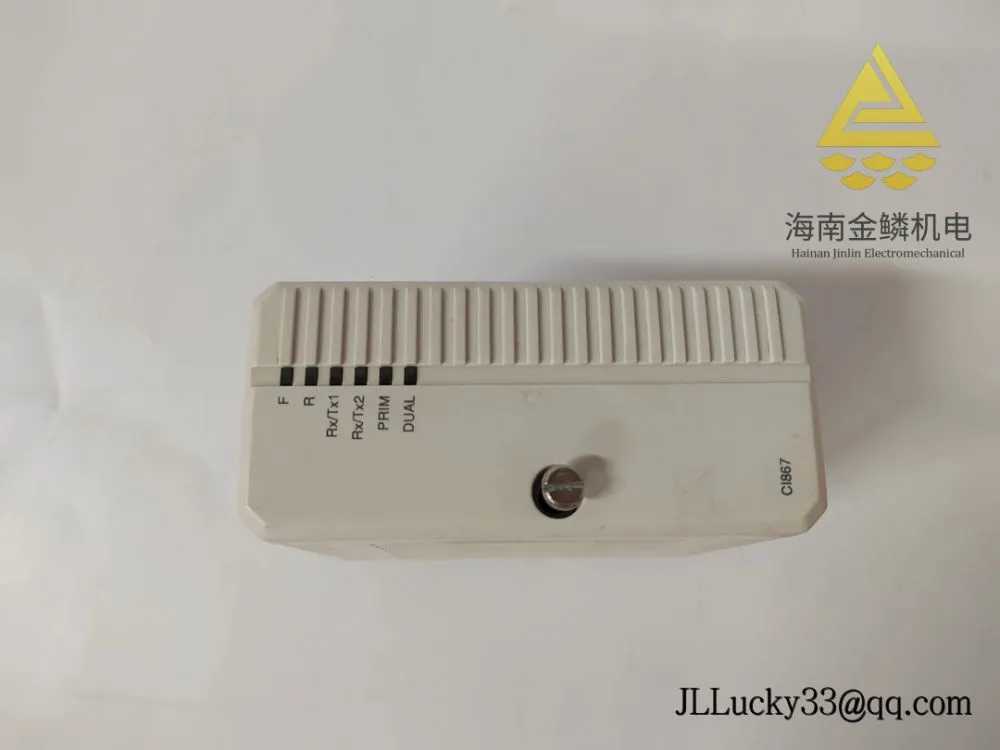

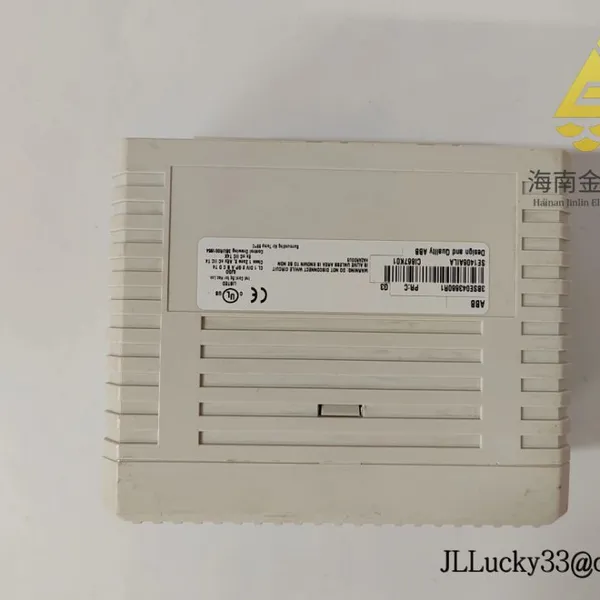

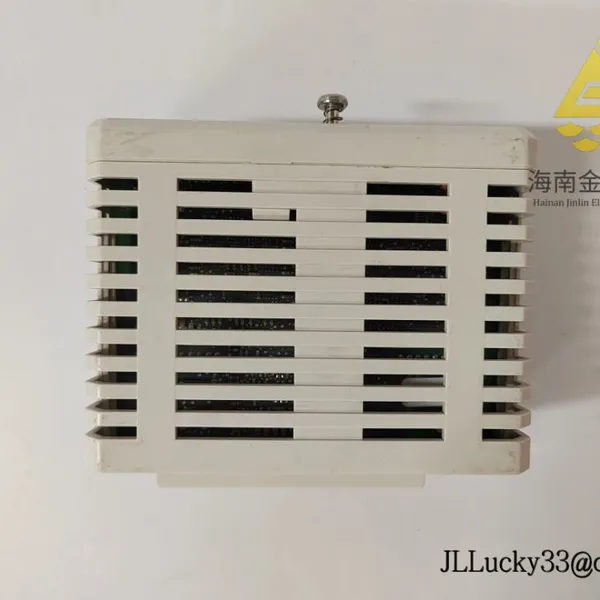

The ABB CI867 (part no. 3BSE043661R1) is a CEX-bus communication interface module for the AC 800M controller family. It’s designed to bridge the controller to plant networks and field devices—typically Ethernet- or fieldbus-based—so you can exchange real-time process data and diagnostics with third‑party PLCs, drives, and HMIs. From my experience, it’s a straightforward way to expand an AC 800M into mixed-vendor systems without re-architecting your existing I/O.
CEX-bus plug-in for AC 800M – Installs directly on the controller’s CEX-bus, no external power supply required.
Industrial network connectivity – Used to link AC 800M with plant networks (commonly PROFINET/fieldbus variants); ideal for interoperating with third‑party PLCs, HMIs, and drives.
Deterministic I/O exchange – Supports cyclic data exchange and device diagnostics for stable control performance in most cases.
Integrated diagnostics – Status LEDs and engineering tool messages help you pinpoint wiring, addressing, or device faults quickly.
Engineering-friendly – Configured in Control Builder M; device descriptions (e.g., GSD/GSDML for the respective network) simplify mapping signals.
Supports controller redundancy – Typically compatible with AC 800M redundant CPU configurations when the overall system is engineered for redundancy.
Lifecycle stability – Proven hardware platform with long-term availability and global ABB service coverage.
| Brand / Model | ABB CI867, part number 3BSE043661R1 |
| System Platform | AC 800M controller (CEX-bus expansion) |
| Power Requirements | Supplied via CEX-bus from the controller; no external power |
| Operating Temperature | Typically 0 to +55°C (within a ventilated control cabinet) |
| Signal I/O / Protocol | Industrial network interface; protocol and connectors depend on CI867 firmware/variant used in your system |
| Communication Interfaces | Network port(s) as per variant; engineered via Control Builder M |
| Installation Method | Plug-in module on AC 800M CEX-bus, mounted in standard control cabinet with DIN-rail controller assembly |
The CI867 suits plants that need the AC 800M to talk to external devices over a standardized plant network. I typically see it in water & wastewater SCADA interfaces, pulp & paper machine sections, metals rolling lines, food & beverage packaging cells, and mixed-vendor modernization projects where the AC 800M must coexist with existing PLCs or drives.
Linking AC 800M sequences to third‑party PLC-based skids or OEM packages
High-speed I/O exchange with drives and HMI/SCADA nodes on the plant network
Gradual migration projects—keeping legacy networks alive while adding new islands of automation
Redundant control architectures needing networked I/O with diagnostic feedback
Reliability in harsh environments – Built for 24/7 operation in industrial cabinets; the thermal rating covers most plant rooms.
Compatibility – Works within the AC 800M ecosystem; integrates cleanly with Control Builder M and standard device description files.
Faster commissioning – Clear diagnostics and a predictable engineering workflow reduce startup time, which in many cases saves days.
Lifecycle & support – ABB’s global service footprint and spare availability helps maintenance planning and reduces supply risk.
Cost control – No extra power supply, minimal panel change, and reuse of existing networking where feasible.
Customer note: “We dropped the CI867 into an existing AC 800M rack and mapped signals to a third‑party drive system. The diagnostics caught a grounding issue in minutes. Commissioning went smoother than expected.” – Maintenance Lead, metals plant
Installation & MaintenanceCabinet & environment – Install in a ventilated control cabinet; maintain ambient temperature within 0…+55°C and avoid direct heat sources.
Wiring & grounding – Use shielded industrial cables as required by the network; bond shields at designated points and maintain proper grounding to reduce noise.
Separation – Route network cables away from high-voltage and high-current wiring; respect bend radius and connector strain relief.
CEX-bus handling – Power down or place the controller in a safe state before inserting/removing modules. Observe ESD precautions.
Engineering – Import the correct device description (GSD/GSDML as applicable). Verify firmware compatibility in Control Builder M.
Routine checks – Inspect connectors and LED status during PM rounds; clean dust, verify cabinet fans/filters, and keep firmware aligned with site standards.
Spare strategy – Keep at least one tested spare for critical lines; label with current firmware to match the running system.
CE compliant; typically cULus listed for industrial control equipment
RoHS compliant hardware
Additional marine/industry approvals may apply depending on hardware revision
Manufacturer warranty: typically 12 months on new units (site policies may extend with service agreements)
If you’d like me to verify the exact protocol and connector set for your CI867, a quick photo of the module label or your Control Builder M hardware tree helps. You might notice that firmware variants dictate whether you get Ethernet-based or classic fieldbus behavior—sorting that early saves rework during I/O mapping.
