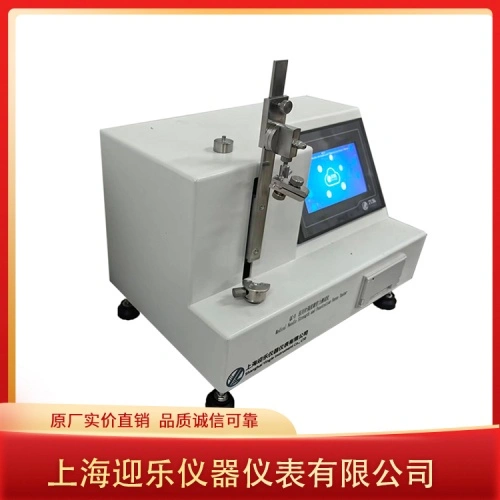

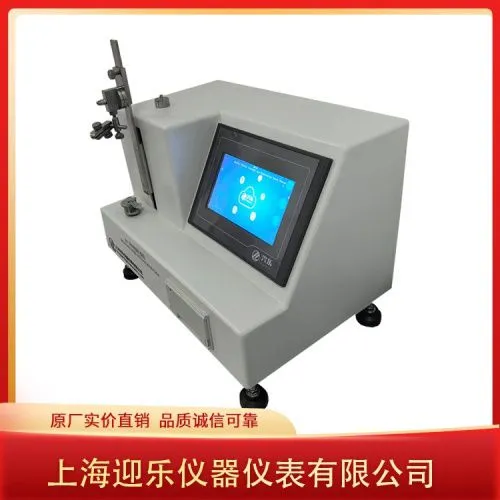

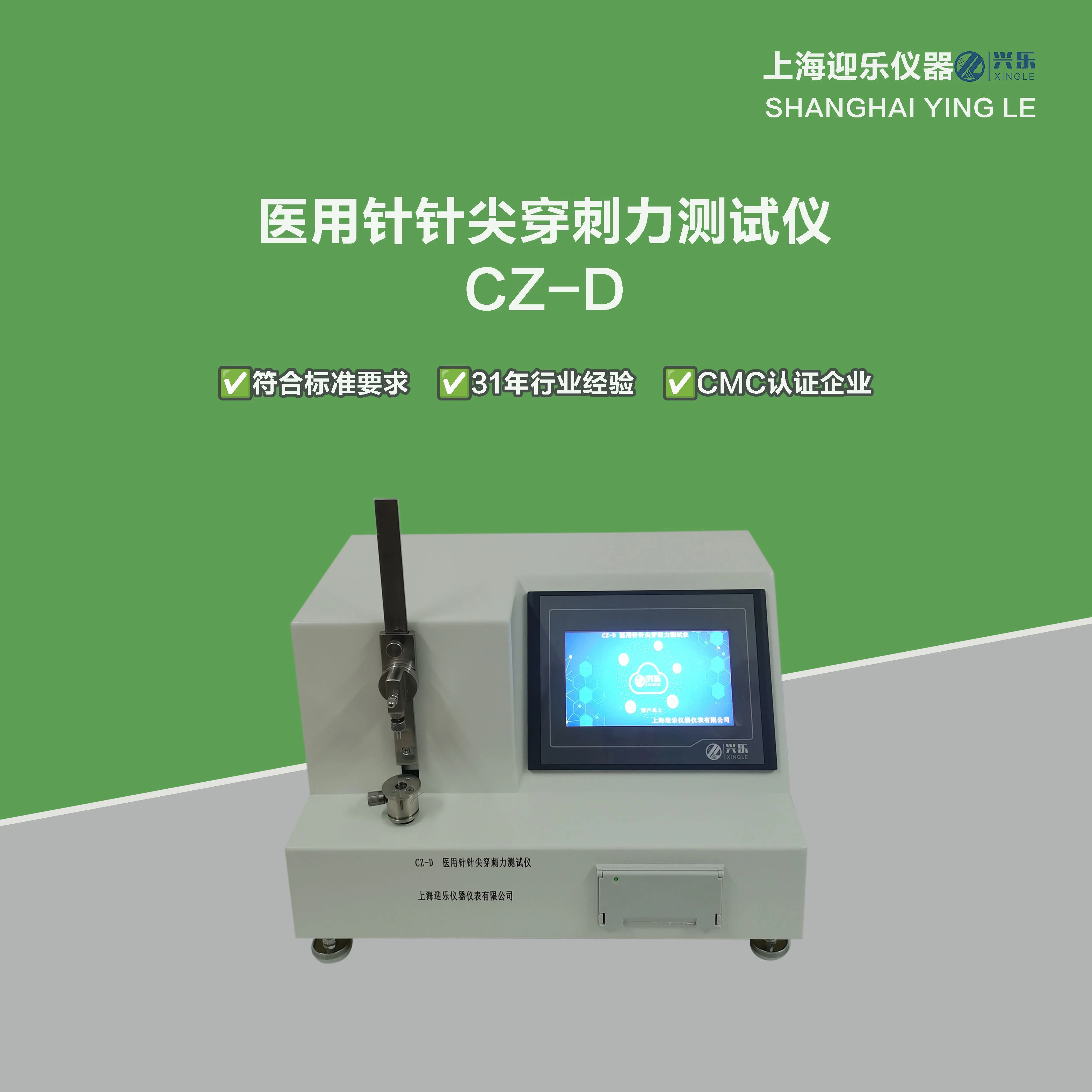

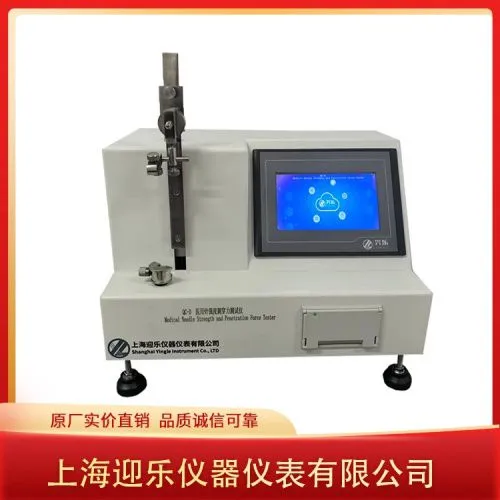

Medical suture needle strength puncture force tester
Technical Specifications:
Operation Interface: Simplified Chinese/English
Test Standard: YY0043-2016 "Medical Surgical Needles"
Display: Utilizes a 7-inch K600+ core/matrix 65-color touch screen with a resolution of 800*480, dynamically displaying the load force value through PLC control system; Optional operation interface: Chinese/English/Bilingual switch; Digital closed-loop control, AD acquisition speed of 500KHz, internal code of 500,000; High-precision clock chip, power-off storage; Overload alarm shutdown protection; Touch control operations: nominal specifications, test items, load to be applied, print, test, up, down, time, calibration, etc.
Programmable Logic Controller: PLC+ARM,
Sensors: High-precision force sensors with hardware and software protection functions
Test Items: Strength, penetration force;
Nominal Specifications: Customizable from 0.2 to 2.4mm; (Can be freely selected)
Set Load: Customizable from 0.01 to 2.0N, error not greater than ±1%
Hole Diameter: 5mm
Loading Rate: Loading speed ≤ 10mm/s when reaching the set value
Steel Block Hardness HRC≥60
Test Consumables: Aluminum foil
Printing Method: Micro needle printer
Test Data: Automatically collects strength and penetration force test data on board and can automatically calculate the average value, etc.
Power Supply: AC90V-240V/50Hz
Net Weight: 12kg
Dimensions: 400×240×240 (mm)
Manufacturer introduction: Shanghai Yingle Instrument Co., Ltd. (formerly Shanghai Xingle) is located in Shanghai, the manufacturing capital. The company was founded in 1993. It is a manufacturer of physical performance testing equipment for medical consumables integrating design, research and development, and sales. The company's products mainly serve third-party testing institutions, medical consumables production unit quality laboratories and R&D centers, etc.; the company has more than 30 years of industry experience, and is the first domestic disposable medical device physical performance testing instrument manufacturer. It is also the first company to obtain CMC certification. The company mainly produces medical stainless steel needle tube testing equipment, medical syringe testing equipment, medical infusion set testing equipment, medical suture needles, thread testing equipment, 6% Luer connector testing equipment, etc. Technical indicators are updated at any time with the industry standards for medical pharmaceutical packaging materials to ensure that the company's products serve customers with the latest standards.
