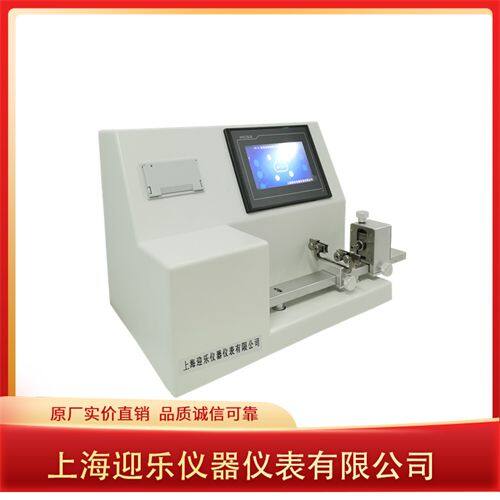

ZY-D ISO 7886 Sterile hypodermic syringes leak tester with axial force
ZY-D Syringe Positive Pressure Tightness Tester is suitable for testing the tightness of syringe body.
The positive pressure tester is designed and manufactured according to ISO7886-1-2017 "Disposable Sterile Syringe" standard.An instrument used to test positive pressure for the tightness of a syringe.
It is composed of intelligent controller, force measuring mechanism, ranging mechanism, printer, etc. The intelligent controller consists of CPU, motherboard, LCD, keyboard, power supply and other parts.
The screen is displayed in Chinese/English window, and the keyboard controls the cursor to select, operate and set. You can follow the prompts without training.
Technical Indicators:
Operation Interface: Simplified Chinese/English
Test Standards: GB15810-2019 "Disposable Sterile Syringe"
ISO7886-1-2017 "Disposable Sterile Syringe"
Display: 7-inch K600+ core/65-color dot-matrix 800*480 resolution touchscreen display, dynamic display of load force values with PLC control system; Optional operation interface: Chinese/English/Chinese-English switch; Digital closed-loop control, AD acquisition speed of 500KHz, internal code of 500,000; High-precision clock chip, power-off storage; Overload alarm shutdown protection; Selection can be made via the touchscreen display menu, including the nominal capacity of the syringe, the lateral force used in the leakage test, the axial pressure, and the display of lateral force, axial pressure, and the acting time on the core rod during the testing process.
Programmable Logic Controller: PLC+ARM,
Sensor: High-precision force value sensor with hardware and software protection functions
Lateral Force: 0.25N～3N, error not exceeding ±1%;
Axial Pressure: 100Kpa～400Kpa, error not exceeding ±5%;
Nominal Capacity: Customizable from 1ml to 60ml, arbitrary selection;
Test Time: Customized 999S±1S, error not exceeding ±1S.
Printing Method: Micro needle printer
Test Data: Automatically collect test data on board and print test results on board
Overall Power: 400W
Power Supply: AC90V-240V/50Hz
Net Weight: 12kg
Dimensions: 485×345×300 (mm)
Shanghai Yingle Instrument & Instrument Co., Ltd. is a technology enterprise with 31 years of professional experience the production and research and development of instruments and meters, covering multiple fields including industrial automation, laboratory instruments, scientific research monitoring, medical detection equipment, etc. The company's product are rich, including injection needle test instrument, syringe test instrument, infusion needle test instrument, infusion set test instrument, suture needle test instrument, suture line test, 6% Luer cone joint comprehensive test instrument, indwelling needle test instrument, blood collection needle test instrument, acupuncture needle test instrument, needle tube rigidity test instrument, toughness test instrument, firmness test instrument, air tightness positive and negative pressure test instrument, sealing leakage test instrument, etc., meeting the needs of different. The company has always paid attention to product quality and customer service, and is the first domestic manufacturer of physical performance test instruments for disposable medical devices, and is also the first (ou) company to obtain CMC certification. We have a strict quality control system to ensure the stability and reliability of products. At the same time, we also provide professional pre- consultation and after-sales service to meet customer needs and solve problems.
FAQ
Are you a manufacturer or trading company?
We are a Chinese manufacturer based in Shanghai, China, focusing on medical testing equipment for more than 30 years. We mainly produce medical needle testers, medical syringe testers, infusion set testers, suture needle testers, suture testers, Luer syringe connector comprehensive testers, and medical device flow testers.
How about the installation?
The user's manual specifies the installation requirements with details. We will advise the relative information in advance, such as power supply, space, required temperature, humidity, etc.
Do you have after-sales service?
We will carry out the equipment inspection before delivery. If the machine does not work properly, we can make a remote control service to help dealing with the failure. We promise to reply within 24 hours and provide solutions within 2 working days.
How about the warranty?
Our warranty is 12 months, lifelong free of charge! User just bear the materials cost and express charge out-of-warranty period.
How long does the delivery time?
For the regular machine, 5-7 working days. For the customized one, 30 days or so.
