I. Overview

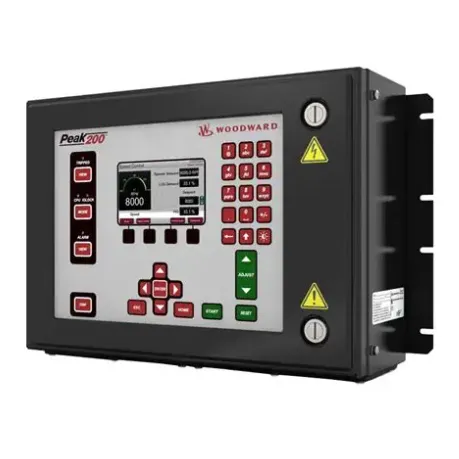

WOODWARD 8200-1500 is a Peak200 series digital controller for steam turbines, with its core positioning as the core unit for precise control and safety protection of steam turbines. Designed specifically for the operation control scenarios of steam turbines, this product integrates comprehensive functions such as speed regulation, load control, and safety protection. It enables full-process digital control of single-inlet valve steam turbines, providing core technical support for the stable, efficient, and safe operation of steam turbines in industrial production.
With mature digital control technology and a robust design, the 8200-1500 features excellent adaptability to industrial environments and operational reliability. It is widely used in industrial fields such as energy, chemical engineering, and oil refining, and is suitable for various steam turbine application scenarios including steam regulation in biomass power plants, syngas compressor control, and wet gas compressor drive. It can accurately respond to operational requirements under complex working conditions, and avoid operational risks through a sound safety protection mechanism, thus safeguarding the safety of equipment and personnel.
II. Product Features
Precise Turbine Control Capability: Equipped with high-precision speed regulation and load control functions, it can stably maintain constant turbine speed under variable load conditions and distribute loads accurately, ensuring that the operating parameters of steam turbines meet process requirements and improving energy utilization efficiency.
Comprehensive Safety Protection Mechanism: Integrating multiple safety functions such as overspeed protection and overtemperature protection, it can monitor the operating status of turbines in real time. When dangerous working conditions (such as overspeed) are detected, it responds quickly and triggers protective actions, ensuring the safe operation of equipment and reducing fault losses.
Flexible Communication Adaptability: Supporting Modbus communication protocol and RS485 communication interface, it can seamlessly connect to the Distributed Control System (DCS) of the plant, realizing the upload of operating data and the reception of remote control commands, and facilitating integration into the industrial automation management and control system.
Industrial-grade Stable Operation Design: Adopting an industrial-grade reinforced hardware architecture and high-quality components resistant to harsh environments, it has strong anti-electromagnetic interference capability and environmental adaptability, and can operate stably for a long time in high-temperature, high-humidity, and high-interference industrial scenarios.
Convenient Configuration and Maintenance: It comes with a complete original operation manual and supports parameter configuration and debugging through dedicated service tools. The modular design simplifies the maintenance process, enabling quick troubleshooting and component overhaul, and shortening downtime.
Sound Data Acquisition and Interaction: Equipped with rich I/O interfaces, it can collect real-time operating parameters of turbines (such as speed, pressure, and temperature) and sensor signals, and upload the processed data to the upper-level control system through the communication interface, providing accurate data support for operation and maintenance decision-making.
Compliant Safety Certification Guarantee: It complies with relevant industrial control safety standards and has reliable Electromagnetic Compatibility (EMC) performance, ensuring no interference to and no interference from the complex industrial electromagnetic environment, and guaranteeing the stable execution of control logic.
III. Technical Parameters
1. Core Basic Parameters
Product Model: WOODWARD 8200-1500
Product Type: Peak200 Series Digital Controller for Steam Turbines
Manufacturer: Woodward
Core Functions: Speed regulation, load control, safety protection, data acquisition, and communication interaction for steam turbines
Compatible Equipment: Single-inlet valve steam turbines
Application Fields: Energy (biomass power generation), chemical engineering (ammonia syngas compressor), oil refining (FCCU wet gas compressor), and other industrial fields
2. Electrical Performance Parameters
Supply Voltage: 24V DC (typical value, refer to the official manual for details)
Communication Interface: RS485
Communication Protocol: Supports Modbus protocol
I/O Interface: Equipped with multiple configurable discrete input/output interfaces (refer to the official manual for the specific number)
Signal Acquisition: Supports input of various sensor signals such as speed, pressure, and temperature
Response Time: ≤100ms (typical value, control command response)
3. Environmental and Physical Parameters
Operating Temperature: -20℃~+60℃ (industrial-grade wide temperature operating range)
Storage Temperature: -40℃~+85℃
Relative Humidity: 5%~95% RH (no condensation)
Electromagnetic Compatibility: Complies with relevant EMC standards and has strong anti-interference capability
Installation Method: Bulkhead Mount
Protection Grade: Industrial-grade protection capability (refer to the official manual for details)
IV. Working Principle
The core working principle of the WOODWARD 8200-1500 digital controller for steam turbines is to achieve precise control of the operating status of steam turbines through a closed-loop process of signal acquisition - logic operation - control output - status feedback. The specific working process can be divided into four core stages:
Stage 1: System Initialization and Parameter Loading StageAfter the controller is powered on, it automatically completes system initialization, performs hardware self-test and software loading, and reads preset control parameters (such as speed threshold, load range, and protection threshold) at the same time. It establishes a connection with the upper-level control system through the communication interface and completes protocol handshake to ensure the smoothness of the data interaction link.
Stage 2: Operating Parameter Acquisition and Status Monitoring StageThe controller collects real-time operating parameters of the steam turbine through the built-in I/O interface, including core data such as speed, inlet steam pressure, exhaust temperature, and load, and monitors the working status of sensors and actuators at the same time. It performs preprocessing such as filtering and verification on the collected data to eliminate invalid data and ensure data accuracy.
Stage 3: Control Logic Operation and Command Output StageThe controller performs logic operation based on the preprocessed operating data and preset control parameters to determine whether the current operating status meets the requirements. If adjustment is needed, it generates control commands such as speed regulation and load distribution, and drives the action of actuators (such as inlet steam valves) through the output interface to achieve precise control of the turbine's operating status.
Stage 4: Safety Protection and Status Feedback StageThe controller compares the operating data with the safety protection threshold in real time. If dangerous working conditions such as overspeed and overtemperature are detected, it immediately triggers the safety protection mechanism and issues shutdown or alarm commands to avoid equipment damage. At the same time, it uploads real-time operating status, control command execution results and other information to the upper-level control system through the RS485 interface, forming a complete control closed loop.
V. Common Fault Troubleshooting
1. No Response from Controller / Failure to Start
Phenomenon: No indicator light is on after the controller is powered on, and it cannot complete initialization; the upper-level control system cannot identify the controller; no operating parameters are collected or output.
Causes: Abnormal supply voltage or poor contact of the power supply line; power module failure; controller hardware damage; loss or error of initialization parameters.
Solutions: 1. Use a multimeter to detect the supply voltage to ensure it meets the rated power supply requirements of the controller, check whether the power supply line connectors are tight, and repair loose or damaged lines. 2. Replace with a spare power module for testing to rule out power module failure. 3. If there is still no response when the power supply is normal, try to restart the controller. 4. If the restart is ineffective, the controller hardware may be damaged or the initialization parameters may be lost, and it is necessary to contact Woodward official after-sales service for maintenance or parameter recovery.
2. Communication Interruption / Abnormal Data Interaction
Phenomenon: The controller cannot establish communication with the upper-level control system; operating data cannot be uploaded or control commands cannot be issued; frequent packet loss and lag occur during data transmission.
Causes: Loose, damaged or incorrectly wired RS485 communication line; mismatched configuration of communication parameters (address, baud rate); abnormal adaptation of Modbus protocol; communication interface failure; excessive electromagnetic interference in the industrial environment.
Solutions: 1. Cut off the power supply, check the connection status of the RS485 communication line, verify the wiring method, and repair or replace the damaged line. 2. Check the communication parameters of the controller and the upper-level system to ensure the consistency of address and baud rate, and restart the communication link after reconfiguration. 3. Check whether the communication interface is loose or damaged, and replace the interface components if necessary. 4. Troubleshoot the electromagnetic interference sources in the industrial environment, perform shielding treatment on the communication line and ground it reliably to enhance the anti-interference capability.
3. Insufficient Speed/Load Control Precision
Phenomenon: Turbine speed fluctuation exceeds the allowable range; uneven load distribution; slow response after the execution of control commands, failing to reach the preset operating state quickly.
Causes: Unreasonable configuration of control parameters; inaccurate data collection caused by sensor failure; jamming or abnormal response of actuators (such as inlet steam valves); mismatched control algorithm parameters of the controller.
Solutions: 1. Re-calibrate the control parameters through dedicated service tools and optimize the parameter settings related to speed regulation and load distribution. 2. Check the working status of speed, pressure and other sensors, use professional tools to detect the sensor output signals, and replace faulty sensors. 3. Check the working status of the actuator, clean the jammed foreign objects, and repair or replace the faulty actuator. 4. Check the control algorithm parameters of the controller, and restore the factory settings before reconfiguration if necessary.
4. False Alarm / Abnormal Triggering of Safety Protection
Phenomenon: The controller frequently issues fault-free alarms; the safety protection mechanism is abnormally triggered when the dangerous working conditions are not reached, resulting in turbine shutdown; the protection action is not triggered in a timely manner under dangerous working conditions.
Causes: Unreasonable configuration of safety protection threshold; sensor signal distortion or drift; internal logic failure of the controller; signal misjudgment caused by electromagnetic interference.
Solutions: 1. Check the safety protection threshold settings and adjust them to a reasonable range according to the turbine operation requirements. 2. Calibrate the sensors, check whether the signal lines are interfered, and perform shielding treatment on the lines. 3. Restart the controller to clear the internal operation cache. 4. If the problem persists, there may be an internal logic failure of the controller, and it is necessary to contact the official after-sales service for maintenance.
