EMERSON 5X00846G01 8 Channel Analog Input Module

Guizhou Yuanmiao Automation Equipment Co., Ltd.

1Yr

EMERSON 5X00846G01 8 Channel Analog Input Module thumbnail-1

EMERSON 5X00846G01 8 Channel Analog Input Module thumbnail-2

EMERSON 5X00846G01 8 Channel Analog Input Module thumbnail-3

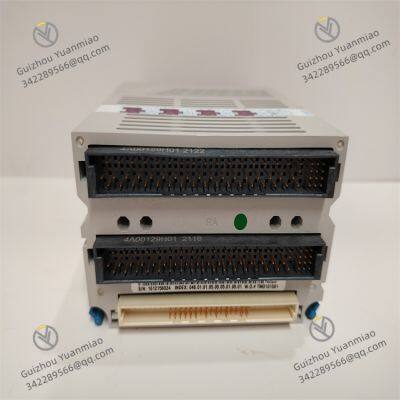

EMERSON 5X00846G01 8 Channel Analog Input Module photo-1

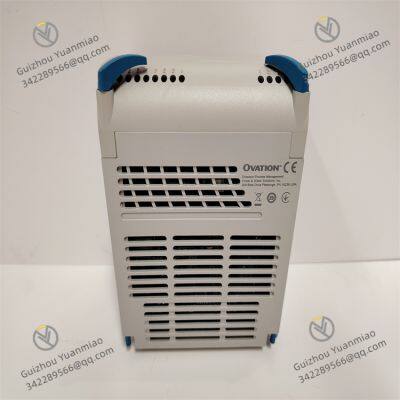

EMERSON 5X00846G01 8 Channel Analog Input Module photo-2

EMERSON 5X00846G01 8 Channel Analog Input Module photo-3

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Other, Global universal model

Condition:

Other, Global universal model

Task:

Other, Global universal model

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Other, Global universal model

Condition Other, Global universal model

Task Other, Global universal model

Mathematical Model Other, Global universal model

Signal Other, Global universal model

Customized Non-Customized

Structure Other, Global universal model

Power Supply 24VDC

Operating temperature -40℃ to 70℃

Dimensions 19 x 8.5 x 6.3cm

I. Overview

EMERSON 5X00846G01 is an important analog output module in the control system, undertaking key signal output tasks in the process of industrial automation control. It can convert the digital control signals sent by the central processing unit of the control system into corresponding analog signals (such as current signals or voltage signals) and accurately output them to actuators, such as control valves, frequency converters, servo motors, etc., thereby realizing precise regulation and control of various parameters in the industrial production process.

With Emerson's exquisite industrial control technology and strict quality control, this module has the advantages of high output precision, strong stability, and excellent anti-interference ability. It can adapt to the complex and changeable industrial on-site environments in industries such as electric power, chemical industry, and metallurgy, providing a strong guarantee for the stable and efficient operation of industrial production processes. It is an important part of the Ovation control system for realizing analog control.

II. Technical Parameters

Output Channels: Equipped with 8 independent analog output channels, each of which can independently output signals, capable of controlling multiple actuators at the same time, meeting the output needs of medium-scale industrial control scenarios.

Output Signal Types: Supports multiple types of analog output signals, mainly including 4-20mA DC current signals and 0-10V DC voltage signals. It can be flexibly selected according to the signal requirements of different actuators, with strong compatibility.

Output Precision: The precision of the output signal is high, usually reaching ±0.1% of full scale, which can ensure the accuracy of the output signal, provide a reliable basis for the precise action of the actuator, and guarantee the control precision of the industrial production process.

Load Capacity: For current output signals, the maximum load is usually 750Ω; for voltage output signals, the minimum load is generally 10kΩ, which can drive most actuators in industrial sites and ensure the stability of signal transmission.

Isolation Performance: Optoelectronic isolation technology is adopted between each output channel and between the channels and the internal circuit of the module. The isolation voltage is usually 2500V AC, which effectively avoids signal interference between channels and improves the working reliability of the module.

Response Time: The response time of the output signal is short, generally within 10ms, which can quickly follow the control instructions issued by the control system, adjust the output signal in time, and ensure the real-time performance of control.

Power Requirements: Adopts DC power supply, with a standard working voltage of 24VDC, and the allowable voltage fluctuation range is ±10% to adapt to changes in power supply voltage in industrial sites. The power consumption in normal working state is low, usually within 10W, which will not cause excessive pressure on the system power supply.

Working Environment: The operating temperature range is -40℃ to 70℃, and it can operate stably in extreme temperature environments; the relative humidity is 5%-95% (no condensation), with good moisture-proof performance; it can withstand a certain degree of vibration and impact, meeting the environmental adaptability standards of industrial equipment.

III. Functional Features

High-Precision Signal Output: Relying on advanced digital-to-analog conversion technology and precise circuit design, this module can accurately convert digital signals into analog signals with high output precision and good linearity. It ensures that the actuator can act precisely according to the instructions of the control system, improving the control quality of the industrial production process.

Independent Channel Control: The 8 output channels are independent of each other, and the output signal of each channel can be set and adjusted individually without affecting each other. This design enables the module to independently control multiple different actuators at the same time, improving the flexibility and pertinence of system control.

Strong Anti-Interference Ability: Through various anti-interference measures such as optoelectronic isolation and electromagnetic shielding, the module can effectively resist electromagnetic interference and power supply interference in industrial sites, ensuring the stability and accuracy of output signals and avoiding misoperation of actuators caused by interference.

Comprehensive Self-Diagnosis Function: It has comprehensive self-diagnosis capability, which can real-time monitor the output status of each channel of the module, power supply status, and the working condition of internal circuits. When problems such as channel failure and power supply abnormality occur, it can send out alarm signals in time and upload fault information to the control system, facilitating maintenance personnel to quickly locate and eliminate faults and reduce system downtime.

Convenient System Integration: As a standard module of the Ovation control system, it can be seamlessly connected with other modules and the central processing unit in the system, and the integration process is simple and convenient. The module supports the communication protocol with the system, and the output parameters of each channel can be configured and monitored through system software, improving the integration efficiency and management convenience of the system.

IV. Common Faults and Solutions

Abnormal Output Signal
Fault Phenomenon: The analog signal output by the module has a large deviation from the set value of the control system, or the signal is unstable and fluctuates violently, resulting in abnormal action of the actuator.
Possible Causes: Poor contact, disconnection, or strong electromagnetic interference of the connecting line between the module and the actuator; failure of the internal digital-to-analog conversion circuit of the module; damage to the output channel; unstable power supply voltage.
Solutions: First, check the connecting line to ensure that the line is firmly connected without disconnection or damage. For interfered lines, shielding measures can be taken or shielded cables can be replaced. Use a multimeter and other tools to measure the power supply voltage to ensure that the voltage is within the specified range and stable. If both the line and the power supply are normal, try connecting the actuator to another standby channel. If the signal returns to normal, it indicates that the original channel is damaged, and professional maintenance personnel should be contacted to repair the module or replace the faulty channel.

No Output from Channel
Fault Phenomenon: One or more output channels have no signal output, the actuator does not act, and the control system shows that the channel output is normal but there is no response on site.
Possible Causes: Damage to the internal circuit of the output channel; complete disconnection of the line between the channel and the actuator; failure of the actuator to receive signals normally.
Solutions: Check the line between the channel and the actuator to confirm whether the line is unobstructed and the wiring is correct. Connect the actuator to other normally working channels for testing. If the actuator still does not act, it indicates that the actuator is faulty and needs to be repaired or replaced. If the actuator is normal, it can be judged that the output channel of the module is damaged, and the manufacturer or professional maintenance organization should be contacted to repair or replace the module.

Module Communication Fault
Fault Phenomenon: The module cannot communicate normally with the central processing unit of the control system, the system cannot configure parameters and monitor the status of the module, and displays communication timeout or communication error.
Possible Causes: Loose or broken communication line between the module and the system bus; damaged communication interface; wrong setting of module address or conflict with other modules; mismatched communication protocol.
Solutions: Check the connection of the communication line, re-plug the connecting line to ensure a firm connection, check whether the line is damaged, and replace the communication line if necessary. Check the module address setting to ensure that the address is unique and consistent with the system configuration to avoid address conflict. Check the communication protocol settings to ensure that the module and the control system use the same communication protocol. If the above measures are ineffective, try replacing the communication interface of the module or replacing the module for testing to determine whether it is a hardware fault of the module.

Product Tags: EMERSON , 5X00846G01
