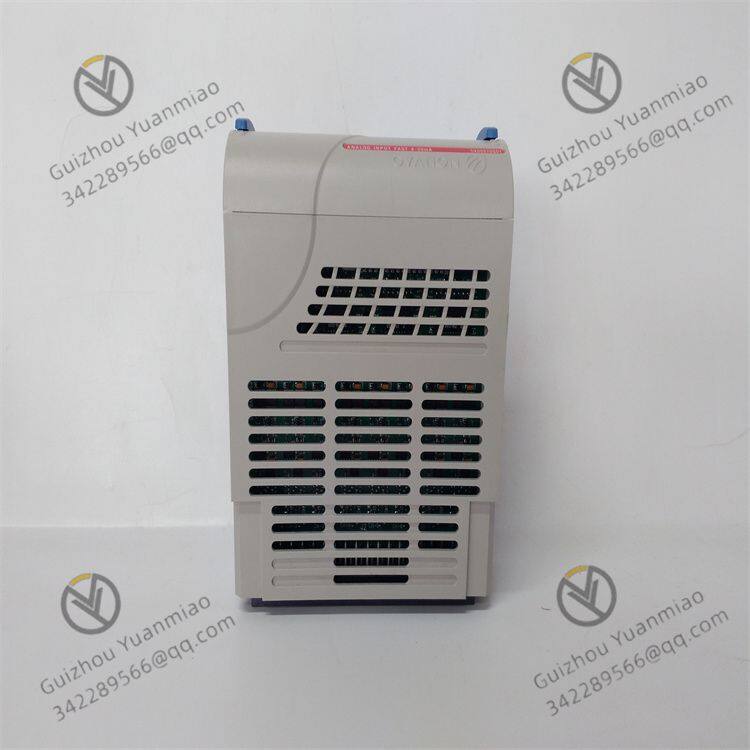

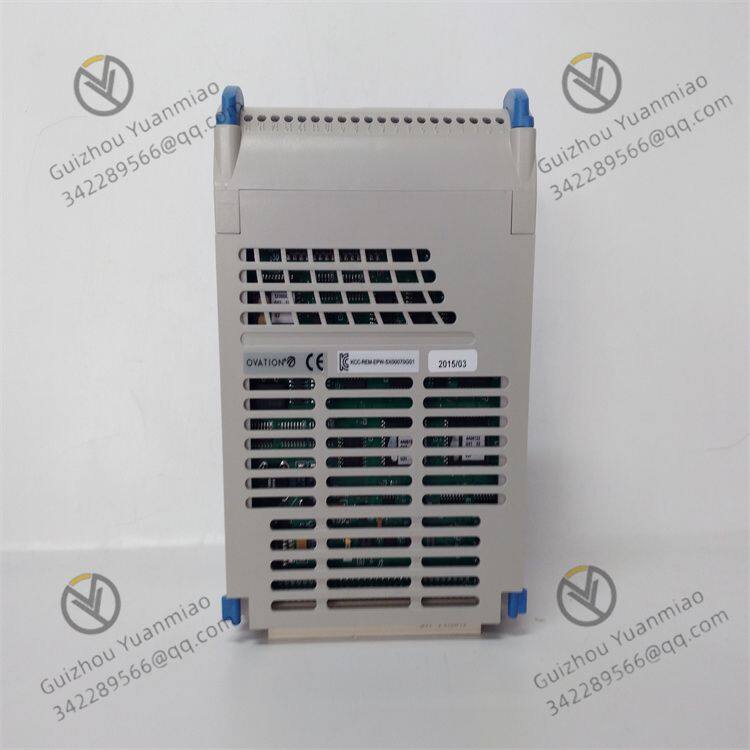

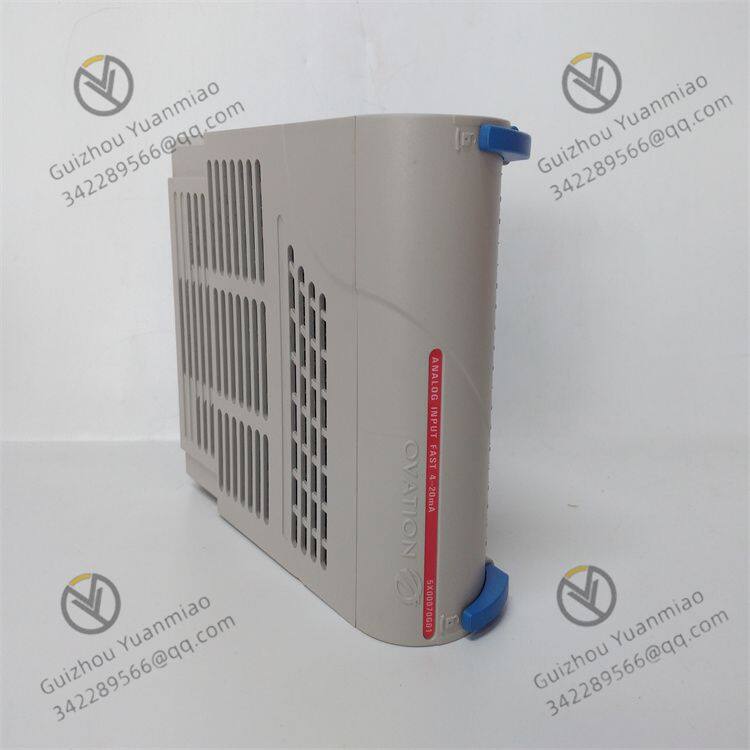

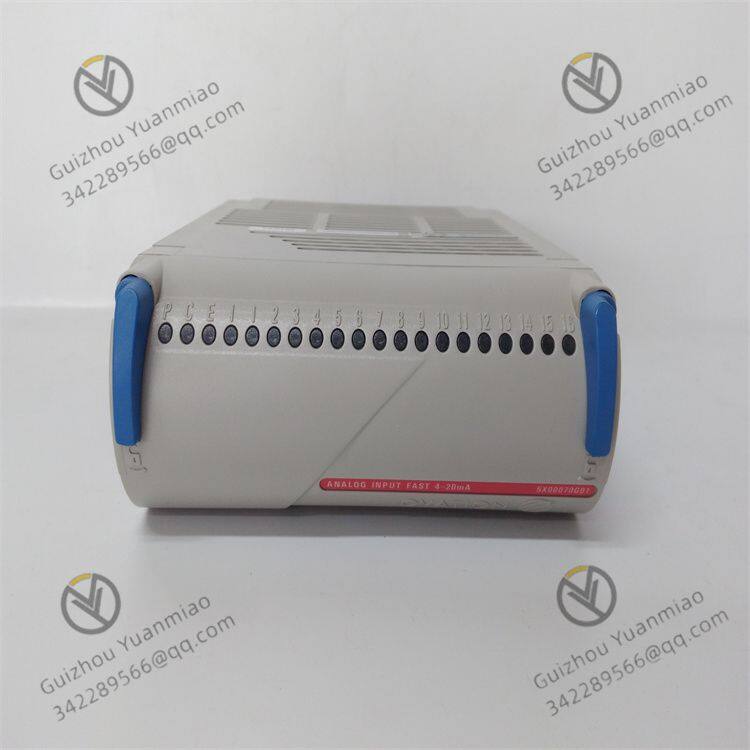

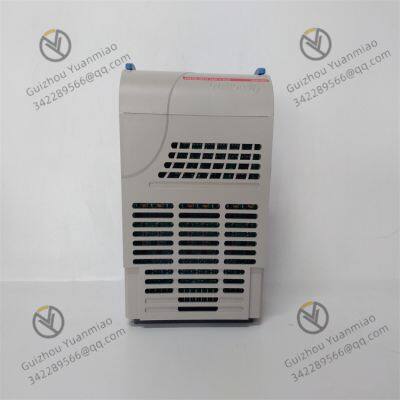

Emerson 5X00070G01 Analog Input Module

Emerson 5X00070G01 Analog input module

Common Questions and Answers about 5X00070G01 module

I. Hardware connection and installation issues

Q1: What should I do if the module cannot be powered on or the indicator light is not on?

A:

Check whether the power supply meets the module requirements (such as voltage range and polarity), and confirm that the power adapter or backplane power supply is normal.

Check if the power cord or back panel connection is loose. You can try reinserting and unplugging the module and ensure good contact.

If the module is equipped with a fuse, check whether it has blown due to overload (some models support on-site fuse replacement).

Q2: What environmental requirements should be noted during installation?

A:

The working temperature should be controlled within the range of -40℃ to 70℃ to avoid performance degradation caused by high or low temperature environments.

The installation location should be far away from strong electromagnetic interference sources (such as frequency converters and motors), and ensure good ventilation to prevent poor heat dissipation.

The module needs to be fixed through guide rails or back plates to ensure a firm mechanical installation and avoid vibration affecting the internal circuit.

Ii. Signal Output and Accuracy Issues

Q3: How to troubleshoot when the output value of the analog quantity does not match the instruction and the deviation is large?

A:

Confirm whether the input digital quantity is correct. Refer to the conversion formula: Analog output value = Digital input value × (full-scale value / 16384).

Check whether the load is within the allowable range (for example, if the current output supports a load of 0-600Ω), overload may cause abnormal output.

Check if there is any interference in the signal lines (such as poor grounding or unshielded cables). It is recommended to use twisted-pair shielded wires and ground them at a single point.

If the accuracy declines after long-term use, it can be calibrated through the system calibration function or an external standard source.

Q4: What are the reasons for the fluctuation or instability of the output signal?

A:

Power supply voltage fluctuation: The auxiliary power supply of the module needs to be independent and stable. Fluctuations in the main power supply may affect the output (it is recommended to use a voltage stabilizer).

Channel isolation issue: If the isolation between the module channel and the logic circuit fails (such as damage to the 1000V photoelectric isolation), it may be affected by interference.

On-site equipment failure: If the internal circuit of the actuator (valve, motor) is abnormal, the load test module can be disconnected to check if the no-load output is stable.

Iii. Diagnosis and Fault Alarm

Q5: The alarm indicator light of the module is on. How to locate the fault?

A:

Read the fault code through the main controller. Common codes include:

Out-of-range alarm: The input digital quantity exceeds the module's range (for example, the input value of a 14-bit module is greater than 16383).

Communication interruption: Abnormal backplane bus connection or incorrect communication configuration of the main controller.

Open-loop feedback failure: The output loop is disconnected (such as cable breakage, loose equipment terminals). The on-off status of the loop can be checked through the register.

Q6: The fuse frequently blows. How to solve it?

A:

Check whether the output has been short-circuited or overloaded for a long time (such as the load impedance being lower than the rated value), and eliminate the faults of the on-site equipment.

Confirm whether the fuse specifications match. Some modules support users to replace repairable fuses, but the specified model should be used (refer to the manual).

Iv. Protocol Compatibility and System Integration

Q7: Can it be integrated with non-Ovation systems?

A:

The 5X00070G01 is deeply integrated with the Ovation system in design (such as redundant bus communication). If it needs to be connected to other systems, it requires:

Confirm whether the electrical characteristics of the backplane interface (such as voltage and data transmission protocol) are compatible.

When converting protocols through third-party communication gateways (such as Modbus, Profibus), it may be necessary to customize the driver program.

Q8: Is HART protocol extension supported?

A:

The module does not integrate the HART function by default. However, the superposition of 4-20mA signals and digital communication can be achieved by superimposing an external HART modem (such as the FSK frequency shift keying module). Please note:

The external module needs to be configured synchronously with the main controller to avoid signal conflicts.

The HART communication rate may be affected by the channel update rate (such as 24ms/channel), and the communication parameters need to be optimized.

V. Maintenance and Upgrade Suggestions

Q9: Does the module require regular maintenance? How to extend the service life?

A:

Regularly clean the dust on the surface of the module to prevent dust accumulation from affecting heat dissipation (it is recommended to do this once every quarter).

In high-temperature environments (such as above 50℃), it is recommended to add forced cooling fans to prevent component aging.

When idle for a long time, it should be stored in a dry environment (humidity<85% RH) to avoid circuit corrosion caused by moisture.

Q10: Can modules be hot-swapped for replacement?

A:

If the module supports hot plugging (please refer to the manual for confirmation), operation should be carried out when the power is off or the system allows it to avoid damaging the circuit by plugging or unplugging while the power is on.

Non-hot-swapable models need to be replaced after the machine is shut down, and it is necessary to ensure that the main controller has stopped data interaction to prevent configuration loss.

Based on the above answers, the common problems of the 5X00070G01 module can be quickly located. If further support is needed, it is recommended to refer to the product manual or contact the manufacturer's technical support to obtain a customized solution.
