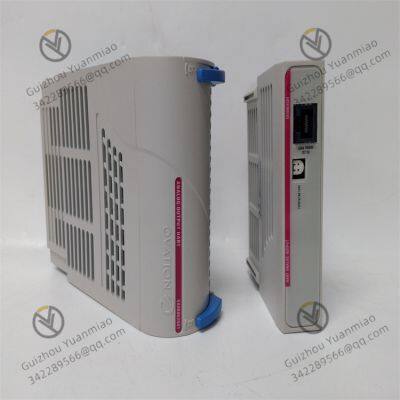

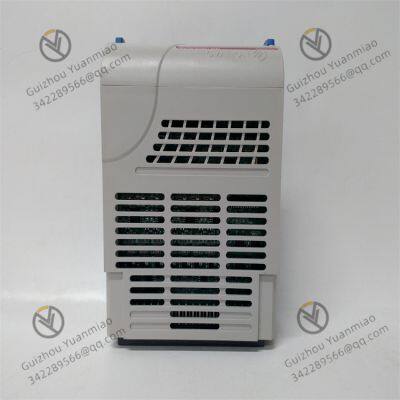

Emerson 5X00062G01 Analog Output Module

Emerson 5X00062G01 Analog output module

Functional features:

Signal output: It can output analog control signals to control the operating status of external devices, such as motor speed, valve position, etc.

High resolution: It features high-resolution analog output, enabling precise control and meeting the requirements of applications with high control accuracy.

Multi-channel design: Usually supports multiple analog output channels, possibly up to 8 channels. It can simultaneously output multiple analog signals to meet the control requirements of multiple devices.

Programmability: It has certain programmable functions, allowing users to set specific output parameters and control logic as needed.

Communication interface: It may support communication interfaces with other devices or systems to achieve data transmission and monitoring. Some modules support the HART protocol.

Flexible configuration: It features flexible configuration options that can be customized and configured according to actual needs to adapt to different application scenarios.

Strong stability: The performance is stable and reliable, suitable for long-term stable operation, and has good anti-interference ability.

Easy to maintain: The design is simple, and installation and maintenance are relatively easy, facilitating system upgrades and maintenance.

Technical parameters:

Number of channels: 8 channels.

Signal type: Supports current and voltage signals.

Accuracy: up to ±0.1%.

Power supply voltage: Usually 24V DC.

Operating temperature range: -40°C to + 85°C.

Size: Standard rack-mounted module.

Application field:

Power system: In power plants, it can be used to control the fuel supply of boilers and the opening degree of the steam inlet valve of steam turbines, thereby precisely regulating the power generation and ensuring stable power output. It can also be used to control the excitation current of the generator, maintain the stability of the generator terminal voltage, and control the related equipment in the substation, such as adjusting the output of the reactive power compensation device and optimizing the power quality.

In the oil and gas industry: During the oil extraction process, the motor speed of the oil pumping unit can be controlled, and the oil extraction efficiency can be adjusted according to the actual situation of the oil well. In natural gas transmission pipelines, the opening degree of valves can be adjusted to control the gas flow and pressure, ensuring the safe and stable transmission of natural gas. It can also be used in oil refineries to precisely control parameters such as temperature, pressure and flow rate of distillation columns, ensuring the efficient and stable operation of the oil refining process.

Chemical industry: In chemical production facilities, parameters such as the temperature, pressure and feed flow rate of the reaction vessels can be precisely controlled to ensure that chemical reactions proceed under set conditions, thereby enhancing product quality and output. It can also be used to control the rotational speed of the chemical material conveying pump, precisely conveying materials according to production needs. It can also adjust the relevant parameters in the separation processes such as distillation and evaporation to achieve effective separation and purification of materials.

Industrial automated production lines: On various types of automated production lines, the movement speed and position of mechanical arms, as well as the running speed of conveyor belts, can be controlled, making the production process more precise and efficient. For instance, in an automotive manufacturing production line, it can be used to control the spray painting flow and pressure of the spray painting robot to ensure uniform and consistent spray painting quality.

Environmental monitoring and governance: In sewage treatment plants, the operating parameters of sewage treatment equipment can be controlled, such as adjusting the aeration volume of the aeration tank and controlling the flow rate of the sludge return pump, to ensure that the sewage treatment effect meets the discharge standards. In the air purification system, the rotational speed of the fan can be controlled, the air flow can be regulated, and the relevant parameters in the waste gas treatment equipment can also be controlled to achieve the standard discharge of waste gas.

In the food and beverage industry, during the food processing, the temperature and time of food baking equipment, as well as the filling volume of filling equipment, can be controlled to ensure food quality and production efficiency. For instance, on a beverage production line, the filling flow rate and volume of beverages can be precisely controlled to ensure that the capacity of each bottle of beverage meets the standards.
