Home > Electrical & Electronics > Electrical Control System > Emerson 5X00070G03 Industrial Grade Analog Output Module

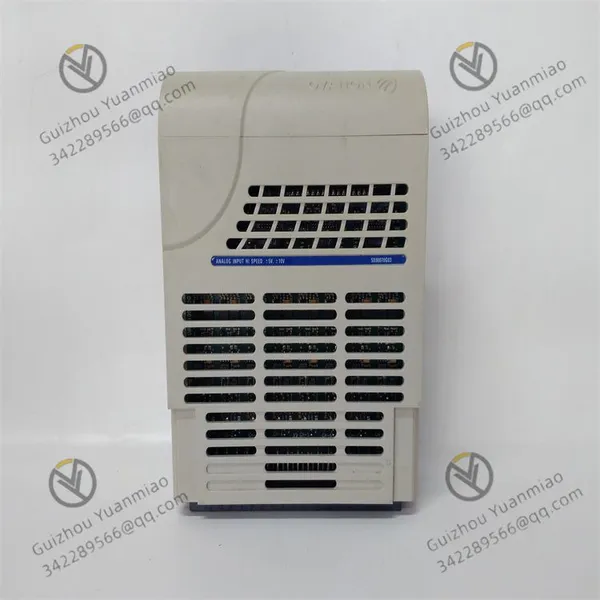

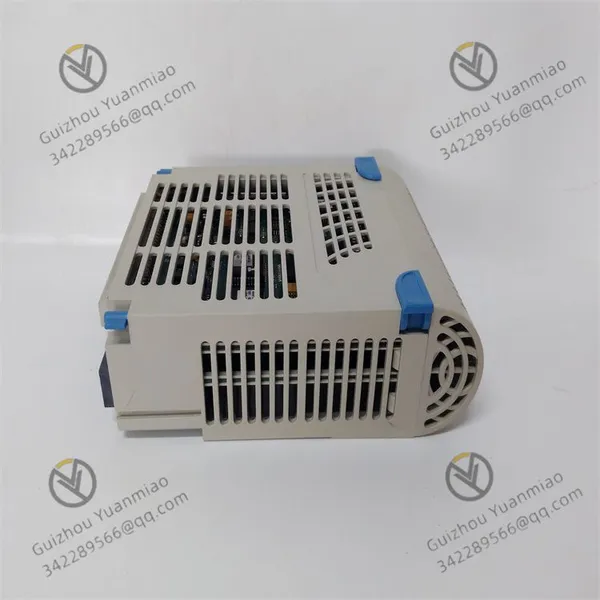

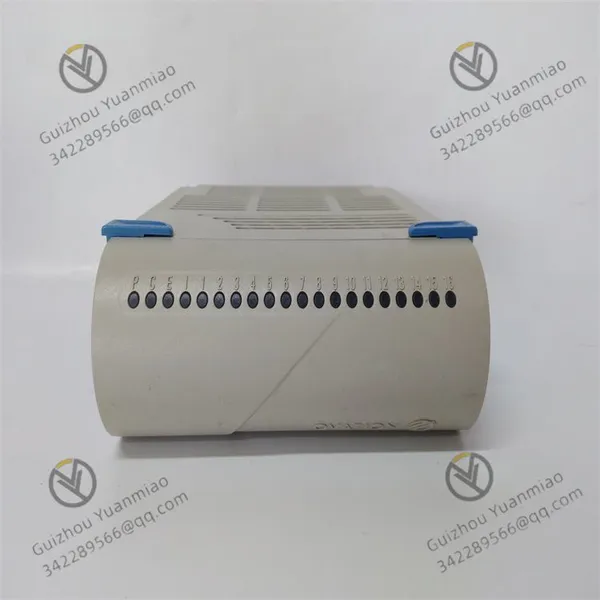

Emerson 5X00070G03 Industrial Grade Analog Output Module

Emerson 5X00070G03 Industrial Grade Analog Output Module thumbnail-2

Emerson 5X00070G03 Industrial Grade Analog Output Module thumbnail-3

Emerson 5X00070G03 Industrial Grade Analog Output Module photo-1

Emerson 5X00070G03 Industrial Grade Analog Output Module photo-2

Emerson 5X00070G03 Industrial Grade Analog Output Module photo-3

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Other

Certification:

Other

Function:

Other

Contact Supplier Request Quote Chat Now

Guizhou Yuanmiao Automation Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Other

Certification Other

Function Other

Task Other

Mathematical Model Other

Signal Other

Customized Other

Structure Other

Emerson 5X00070G03 industrial grade analog output module

Detailed Introduction to 5X00070G03 ModuleI. Module Positioning and Basic Functions

The 5X00070G03 is an industrial-grade analog output module primarily used to convert digital signals from controllers into analog signals, driving field actuators (such as control valves, frequency converters, and display instruments). As a key interface component in industrial automation systems, its core functions include:

Digital-to-Analog Signal Conversion: Converts digital quantities output by controllers (e.g., PLC commands) into standard analog signals (current/voltage) through a high-precision DAC (Digital-to-Analog Converter).
Signal Driving and Isolation: Supports multiple independent outputs, with each channel featuring signal amplification and optoelectronic isolation to ensure stable signal transmission and anti-interference capability.
System Integration Adaptation: Connects with mainstream control systems (e.g., DCS, PLC) via backplane buses or communication protocols to enable real-time output of remote control commands.

II. Core Performance Indicators

Parameter Dimension	Specific Indicators
Number of Output Channels	Typically 8 or 16 channels (subject to confirmation based on the specific model), supporting simultaneous multi-channel output.
Output Signal Types	- Current: 4-20mA, 0-20mA, 0-24mA - Voltage: 0-5V, 0-10V, ±10V - Special signals: Some models support 0-10mA or custom ranges
Resolution	16-bit (theoretical accuracy up to ±0.01% of full scale), with accuracy maintained within ±0.1% of full scale during actual operation.
Conversion Rate	Single-channel update time ≤1ms, meeting high-speed control scenarios (e.g., fast-response flow regulation, motor speed control).
Isolation Characteristics	Optoelectronic isolation (typically 1000V AC/DC) between channels and between channels and the system to prevent crosstalk and external interference.
Load Capacity	- Current output: Maximum load resistance 500Ω (when powered by 24V DC) - Voltage output: Minimum load resistance 10kΩ
Operating Environment	- Temperature: -40°C to 70°C (industrial grade) - Humidity: 5% to 95% (non-condensing) - Vibration resistance: Complies with IEC 61000 standards.

III. Unique Design and Functional Advantages

Flexible Output Configuration and Protection

Software-configurable output mode: Supports independent selection of signal types (current/voltage) and range for each channel through system parameter settings, eliminating the need for hardware adjustments and adapting to different actuator requirements.
Fault-safe output: Built-in "safe value hold" or "preset value output" function (configurable). When the module is powered off, communication is interrupted, or a fault is detected, it automatically maintains the last output value or switches to a preset safe value (e.g., 4mA, 0V) to prevent abnormal device operation.

Efficient Diagnosis and Real-time Monitoring

Full-channel status monitoring: Continuously detects faults such as output disconnection, out-of-range values, and load anomalies, providing real-time feedback to the main control system via LED indicators (power, communication, channel fault) and registers.
Hardware protection mechanisms: Each channel is equipped with overcurrent and short-circuit protection circuits to avoid module damage caused by actuator failures (e.g., current overload due to valve jamming), enhancing system reliability.

Modularity and Communication Expansion

Supports mixed installation with same-series analog input and digital I/O modules, enabling data sharing via backplane buses to simplify control cabinet layout.
Optional HART communication function (with FSK signal superimposition) transmits digital commands while outputting analog quantities, supporting remote parameter configuration for actuators (e.g., setting valve opening limits).

IV. Installation and Wiring Specifications

Physical Installation

Adopts DIN rail mounting, supporting horizontal/vertical installation. The module spacing should be ≥25mm to ensure heat dissipation; the detachable terminal design facilitates on-site wiring and maintenance.
When installing, distinguish between power terminals (e.g., 24V DC), communication interfaces (backplane bus), and output signal terminals to avoid incorrect connections.

Electrical Connection Precautions

Use shielded cables for analog output lines, keeping them away from power cables to reduce electromagnetic interference; when outputting current, ensure the load resistance is within the rated range (e.g., 4-20mA corresponds to ≤500Ω).
For voltage output, confirm the actuator input impedance (e.g., ≥10kΩ) to avoid reduced output accuracy due to excessive load.

V. Typical Application Scenarios

Process Control Execution Systems

In the chemical and pharmaceutical industries, controls the opening of control valves by outputting 4-20mA signals to achieve closed-loop regulation of flow, pressure, and temperature (e.g., control of reactor feed volume).

Motor and Drive Control

In the metallurgy and papermaking fields, outputs 0-10V voltage signals to frequency converters to adjust motor speed; or controls servo drives through current signals to achieve precise positioning control.

Industrial Instrumentation and Display Systems

Provides standard analog signals for on-site pressure gauges, temperature transmitters, and other instruments, or drives recorders, touch screens, and other display devices to present control parameters in real time.

Product Tags: 5X00070G03
