Allen-Bradley 1769-L32E CompactLogix Controller

Guizhou Yuanmiao Automation Equipment Co., Ltd.

1Yr

Allen-Bradley 1769-L32E CompactLogix Controller thumbnail-1

Allen-Bradley 1769-L32E CompactLogix Controller thumbnail-2

Allen-Bradley 1769-L32E CompactLogix Controller thumbnail-3

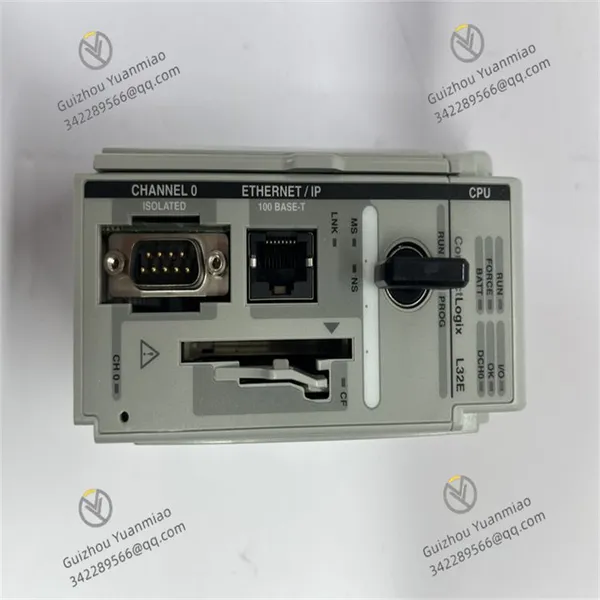

Allen-Bradley 1769-L32E CompactLogix Controller photo-1

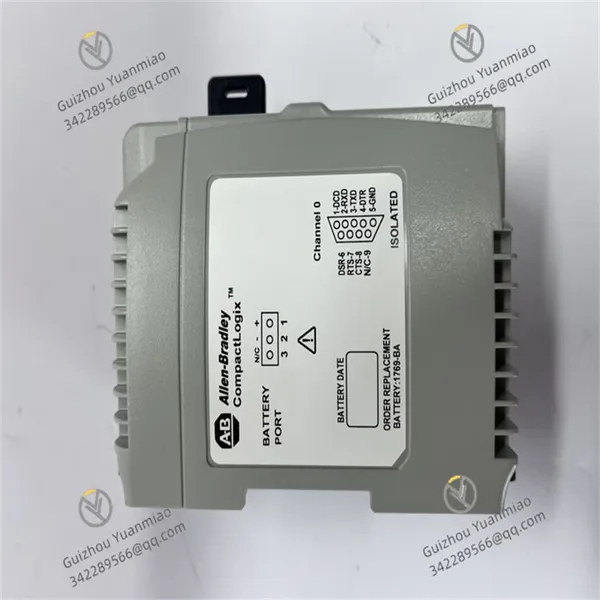

Allen-Bradley 1769-L32E CompactLogix Controller photo-2

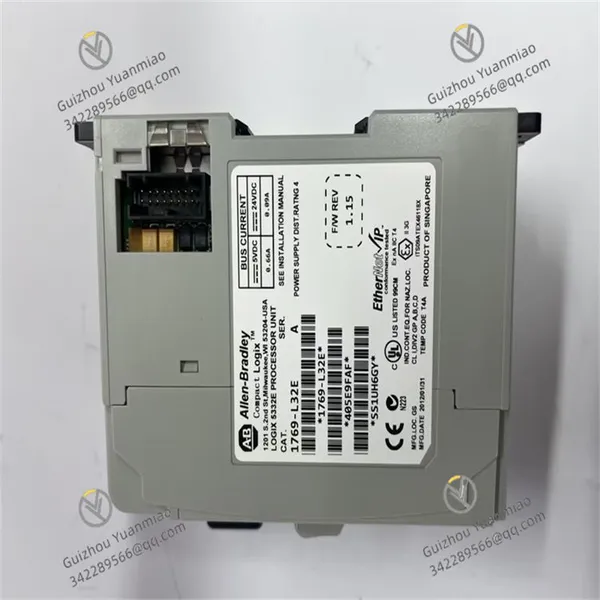

Allen-Bradley 1769-L32E CompactLogix Controller photo-3

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Other, Global universal model

Condition:

Other, Global universal model

Task:

Other, Global universal model

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Other, Global universal model

Condition Other, Global universal model

Task Other, Global universal model

Mathematical Model Other, Global universal model

Signal Other, Global universal model

Customized Non-Customized

Structure Other, Global universal model

Operating temperature 0°C - 60°C

Humidity 5% - 95% (non - condensing)

Storage temperature -40℃-85℃

I. Product Overview

Rockwell Automation 1769-L32E is a high-performance Programmable Logic Controller (PLC) in the CompactLogix series, mainly targeting medium-sized industrial automation control scenarios. As the core of the control system, it boasts strong data processing capabilities, abundant communication interfaces, and flexible expansion performance. It can efficiently integrate various on-site signals, generate precise control instructions through complex logical operations, and realize reliable regulation of industrial production processes. The controller adopts a modular design, highly compatible with 1769 series I/O modules, communication modules, and special function modules. It can build customized automation systems according to actual needs and is widely used in fields such as auto parts manufacturing, electronic device production, packaging machinery, and logistics automation, providing solid control support for the efficient and stable operation of industrial production.

II. Performance Parameters

Processor and Memory: Equipped with a high-performance 32-bit processor, it features fast operation speed and can easily handle control logic of medium to complex levels and large amounts of real-time data. The memory configuration is sufficient: the program memory can accommodate large-scale control programs (usually up to several MB), and the data memory can meet the storage needs of massive real-time data, intermediate variables, historical records, etc., ensuring the system can still run smoothly under high-load conditions.

Power Parameters: It is powered by 24V DC, with a relatively wide adaptability in the power input range. It usually works stably within the range of 19.2-30V DC and has strong resistance to voltage fluctuations. The power circuit adopts multiple filtering and anti-interference technologies, which can effectively resist electromagnetic interference, surges, and spike voltages in the industrial environment, providing reliable guarantee for the stable operation of the controller.

I/O Module Support: It supports a relatively large number of expandable 1769 series I/O modules (the specific number depends on the module power consumption, usually up to more than 20). It is not only compatible with digital and analog modules but also can seamlessly connect with special function modules such as motion control and safety control, meeting the needs of medium-sized industrial control scenarios for diversified signal acquisition and control output.

Communication Interfaces: It integrates rich communication interfaces, including 1 or 2 EtherNet/IP interfaces, supporting high-speed data interaction with human-machine interfaces (HMI), other controllers, remote I/O, industrial robots, frequency converters, and other devices, with a communication rate of up to 100Mbps. Some models are also equipped with RS-232/RS-485 serial interfaces, USB interfaces, etc., facilitating on-site debugging, program downloading, and connection of peripheral devices.

Environmental Parameters:

Operating Temperature: It can work stably within the temperature range of 0℃-60℃, adapting to temperature changes in conventional environments such as industrial production workshops and control cabinets, and maintaining reliable performance under high or low temperature conditions.
Relative Humidity: It can operate normally in a relative humidity environment of 5%-95% (non-condensing), coping with scenarios such as humid food processing workshops and rainy outdoor equipment rooms, effectively preventing circuit faults caused by humidity.
Anti-electromagnetic Interference: It complies with strict industrial electromagnetic compatibility standards (such as IEC 61000-6-2), has strong anti-electromagnetic interference ability, and can resist electromagnetic interference generated by motors, frequency converters, high-voltage equipment, etc. in industrial sites, ensuring the accurate execution of control instructions and the stability of data transmission.
Vibration and Shock Resistance: It has good vibration and shock resistance. The vibration resistance range is 10-500Hz, with an amplitude of 0.38mm or an acceleration of 10g; the shock resistance range can reach 15g (11ms). It can withstand vibration and shock generated during the operation of industrial equipment, ensuring the stability of the controller's structure and performance.

III. Functional Features

Powerful Control Performance: It supports multiple advanced programming languages such as ladder diagram, Structured Text (ST), Function Block Diagram (FBD), and Sequential Function Chart (SFC), meeting the development needs of complex control logic. Equipped with a rich set of control instructions, including special instructions for advanced arithmetic operations, floating-point operations, PID control, motion control, process control, etc., it can realize high-precision speed control, position control, temperature control, etc., suitable for industrial production processes with high requirements.

Real-time Multi-task Processing: Adopting an advanced real-time operating system, it supports multi-task parallel processing, can handle multiple control tasks at the same time (such as logic control, data acquisition, communication management, fault diagnosis, etc.), and can schedule according to task priorities, ensuring the response time of key control tasks (usually up to millisecond level), meeting the real-time requirements of medium-sized industrial systems.

Flexible Expansion and Integration Capability: Based on the modular architecture of the CompactLogix series, the system scale can be flexibly expanded through rack expansion, remote I/O networks (such as EtherNet/IP remote I/O), etc., easily coping with changes in control needs brought about by production line expansion or process upgrading. It can be seamlessly integrated with other products of Rockwell Automation's Logix control platform (such as ControlLogix, FlexLogix) to realize cross-system data sharing and collaborative control, building a unified industrial control network.

Security and Encryption Functions: It adopts a multi-level security protection mechanism, supporting user authority management (different users have different operation permissions), program encryption (preventing unauthorized modification and copying), communication encryption (ensuring data transmission security), etc. It meets industrial information security standards, effectively preventing malicious attacks and illegal operations, and ensuring the safe and stable operation of industrial control systems.

IV. Application Scenarios

Auto Parts Production Lines: In the production lines of auto parts (such as engine accessories, chassis components), 1769-L32E can serve as the core controller, integrating signals from various processing equipment, testing instruments, and sensors to realize automatic control of the production line. For example, it controls the processing flow of CNC machine tools, the assembly actions of robots, and the synchronous operation of conveyor lines, automatically adjusts production parameters according to test results to ensure the processing accuracy and quality consistency of parts, and realizes real-time upload and traceability of production data through communication with the workshop management system.

Electronic Device Assembly Lines: In the assembly lines of electronic devices such as smartphones and computers, the controller can receive signals from visual inspection systems, position sensors, pressure sensors, etc., control the actions of automated assembly equipment (such as placement, welding, screw tightening, etc.), and realize high-precision assembly operations. By precisely controlling the collaborative work of various devices, it improves assembly efficiency and product qualification rate, and supports docking with MES systems to realize refined management of the production process.

Automated Packaging Production Lines: In automated packaging production lines for food, medicine, daily necessities, etc., 1769-L32E can control a series of actions of packaging machines such as feeding, forming, sealing, labeling, and palletizing, and automatically adjust packaging parameters according to product specifications. Through communication with weighing sensors and visual inspection equipment, it monitors packaging quality in real-time, timely removes unqualified products, ensures the efficiency and stability of the packaging process, and meets the needs of mass production.

Logistics Automation Systems: In logistics automation systems such as medium-sized automated three-dimensional warehouses and intelligent sorting centers, the controller can receive signals from barcode identification, RFID, goods location detection, limit switches of conveying equipment, etc., control the collaborative work of stackers, sorting robots, circular shuttle cars, and other equipment, and realize rapid storage, sorting, and distribution of goods. Through real-time communication with the logistics management system, it optimizes logistics scheduling paths and improves the efficiency and accuracy of logistics processing.

Product Tags: 1769-L32E
