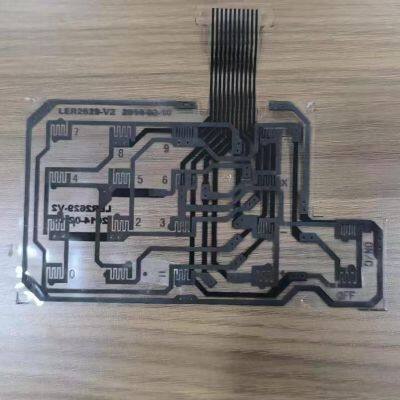

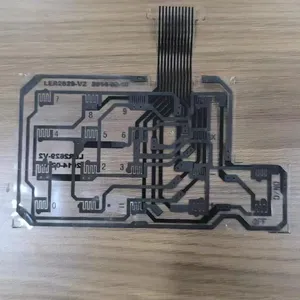

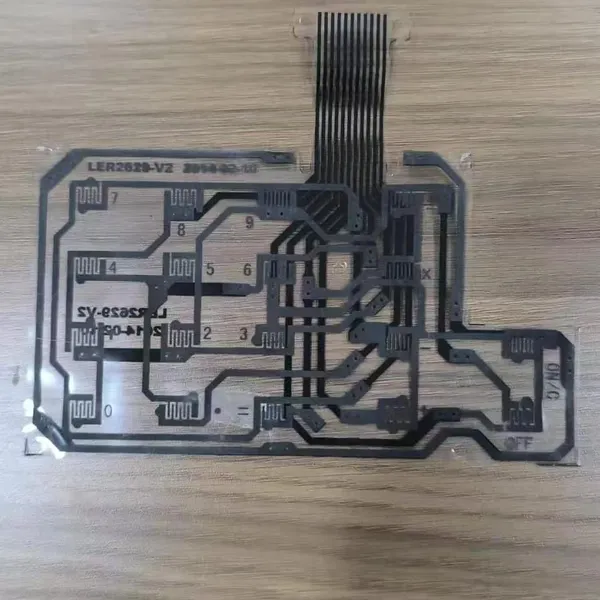

Product Name: Transparent FR-4PCB
Board: FR-4, TG130 material
Number of floors: 2
Minimum line width/spacing: 10/10mil
Finished product size: 250x350mm
Surface technology: OSP
Copper thickness: 70um
Plate thickness: 1.00mm
Minimum hole: 0.50mm
Transparent PETFPC,Transparent FR-4PCB,Ultra thin transparent FR-4PCB,Transparent PCB display screen,Transparent FR-4PCB display screen,LED transparent screen PCB,Button transparent PET carbon wire FPC,Film switch transparent PET silver wire FPC,Thin film switch FPC,Thin film switch carbon wire FPC,
Features: Transparency meets 85-95% and can withstand normal temperatures of 220-240 degrees Celsius
Transparent FR-4 circuit board is a printed circuit board material with high transparency. China Chaosheng has rich experience and technical strength in the field of circuit board manufacturing, and may have outstanding performance in the production of transparent FR-4 circuit boards. The following is an introduction to transparent FR-4 circuit boards and China Chaosheng:
Introduction to Transparent FR-4 Circuit Board
Material characteristics: Made of transparent FR-4 material, with a transparency of over 90%, it also has the same high temperature resistance as ordinary FR-4, high mechanical and dielectric properties, good heat and moisture resistance, and good machinability.
Core parameters: Plate thickness is usually optional between 0.4mm and 3.2mm; In terms of copper thickness, the outer copper foil thickness can be selected from 17um, 25um, 1oz, etc., and the inner copper foil thickness can be selected from 1oz, 2oz, etc; The minimum line width/spacing can reach 3/3mil, and the minimum aperture can reach 0.15mm.
Process highlights: Through high-precision exposure, development, and etching processes, the accuracy and consistency of circuit patterns are ensured. Adopting advanced lamination technology to ensure a tight bond between each layer, avoiding the generation of bubbles and stress. We can also provide various surface treatment methods such as OSP, gold deposition, and tin spraying.
Application areas: Widely used in the field of intelligent displays, such as transparent displays, smart glass, etc; In the field of automotive electronics, it can be used for intelligent instrument panels, head up displays, etc. in automobiles; High end consumer electronics fields, such as smartphones, tablets, etc; And in the field of medical equipment, such as medical imaging devices.
China Chaosheng related information
Company Overview: Chaosheng Group is a multinational (holding) enterprise, a Sino Japanese Hong Kong joint venture established in 1982. It has 16 production bases worldwide, including 5 circuit board factories located in Japan, Yongfeng in Jiangxi, Lin'an in Zhejiang, and Shenzhen in Guangdong.
Business scope: Chaosheng Company's business covers PCB, FPC, etc. The PCB business includes the production of various types of circuit boards such as 2-50 layer boards, double-sided aluminum substrates, ceramics, HDI blind buried holes, etc; FPC business includes 1-36 layer boards, soft and hard bonding boards, etc. Its product types are wide, including HDI boards, high multilayer boards, microwave high-frequency boards, thick copper boards, metal substrates, etc. However, there is currently no publicly available information indicating that it specifically highlights transparent FR-4 circuit board products.
Technical strength: The company has a Japanese technical management team for PCB and FPC, equipped with advanced imported precision equipment and production lines, and has passed quality system certifications such as UL, ISO9001, TS16949, ISO14000 in the United States, possessing strong technical strength and quality control capabilities.
Product application: The product is widely used in high-tech fields such as communication equipment, intelligent systems, new energy, medical equipment, aerospace, etc., reflecting the technical strength and market insight of Chaosheng Group. It has rich experience and extensive market coverage in circuit board manufacturing, and theoretically has the ability to provide relevant production services for transparent FR-4 circuit boards.
