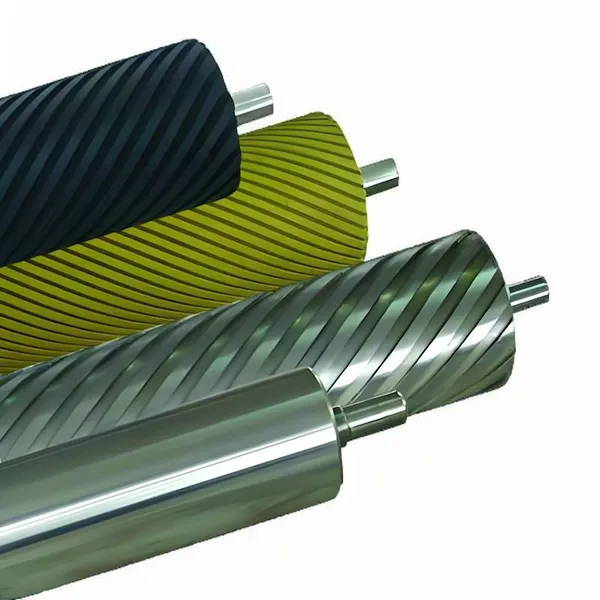

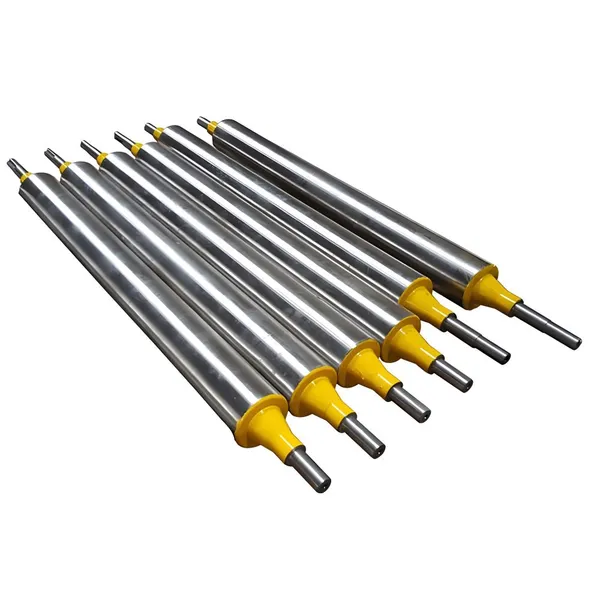

Help CenterIndustrial Hollow Steel Roller Chrome Plated Roller Mirror Finish Roller for China Factory
Related Products
-
Small Big 10 Inch 6 Inch Rodillo Spike Roller 50mm Spike Rollers for Cotton HarvesterUS$ 200 - 500MOQ: 1 Piece -
Carbon Fiber Rollers | ManufacturerUS$ 1000 - 1400MOQ: 1 Unit
-
Printing Printer Rubber Roller Ink Fountain Ink Transfer Rollers for Heidelberg Komori KBA ManrolandUS$ 100 - 200MOQ: 5 Pieces
-
Printer Oscillating Roller Ink Distributor Roller Form Plate Roller for Heidelberg Komori KBA Roland Printing PressesUS$ 100 - 300MOQ: 2 Pieces
-
Printing Fountain Rollers Ink Fountain Dampening Fountain Metering Anilox Roller Dampening Metering RollersUS$ 1 - 200MOQ: 2 Pieces
Steel Rolls (typically made from metal materials like carbon steel, alloy steel, stainless steel, etc.) are fundamental components with extremely wide-ranging applications in the industrial sector. They play a core role in various equipment due to their excellent physical and mechanical properties.
Main Application IndustriesPaper Industry:
Applications: Press rolls, dryer drums (Yankee dryers), calender rolls, guide rolls, spreader rolls, reel drums (winding rolls), size press rolls, etc.
Functions: Dehydrating, drying, calendering to enhance surface smoothness, sizing (applying coating), guiding the paper web, controlling tension, winding the finished product.
Printing Industry:
Applications: Impression cylinders, ink form rollers, distributor rollers, plate cylinders, guide rollers (paper/film), chill rolls (cooling rolls), rewinding rolls, etc. (in offset, gravure, flexo, coating equipment).
Functions: Transferring ink, applying pressure for image transfer, cooling/solidifying ink/coatings, guiding the substrate (paper, film, etc.).
Steel Industry:
Applications: Mill rolls (work rolls, backup rolls, intermediate rolls), conveyor table rolls, leveler rolls (straightening rolls), pinch rolls, coiler mandrels, guard rolls (guide rolls), etc.
Functions: Applying immense pressure to metal billets/blooms for plastic deformation (rolling), conveying hot slabs/plates, correcting plate shape (flatness), gripping and guiding, coiling steel strips. This is one of the most demanding fields for steel roll performance.
Plastics and Rubber Processing Industry:
Applications: Calender rolls, extruder polishing/cooling rolls, guide rolls, pull rolls (haul-off rolls), cooling rolls, laminating rolls, embossing rolls, etc.
Functions: Calendering molten plastic/rubber into sheets/films, shaping, cooling, pulling (traction), laminating different material layers, surface embossing.
Textile Dyeing and Finishing Industry:
Applications: Heat setting rolls, mangle rolls (for liquor expression), guide rolls (cloth), printing rollers, ager rolls (steaming cylinders), pre-shrinking rolls (compactors), cloth winding rolls, etc.
Functions: Heat setting fabrics, squeezing out water or dyeing/finishing chemicals, guiding fabric runs, transferring printing patterns, steam fixing dyes, pre-shrinking treatment, winding fabric.
Packaging Industry:
Applications: Corrugating rolls (single facer), pressure rolls (double backer), glue applicator rolls, guide rolls, bottom anvil rolls (for slitter/scorer knives), bottom die rolls (for die-cutting), rewinding rolls, etc.
Functions: Forming corrugated medium, bonding corrugated board, applying adhesive, guiding board, supporting slitting/scoring/die-cutting, winding finished products.
Conveying and Logistics Industry:
Applications: Conveyor idler rolls (flat idlers, troughing idlers, impact idlers), drive pulleys, bend pulleys, take-up pulleys.
Functions: Supporting the conveyor belt and material weight, transmitting driving force, changing belt direction, maintaining belt tension. Although polymer rolls may be used in some light-duty applications, steel rolls are still widely used in heavy-duty, high-temperature, or high-precision scenarios.
Wood Processing Industry:
Applications: Veneer dryer drums, hot press platen support rolls (or directly as heated press rolls), backing rolls (pressure rolls) for sanding drums, conveyor rolls, veneer/panel winding rolls, etc.
Functions: Conveying veneer through dryers, supporting press platens/direct heating and pressing, supporting the sanding belt for sanding, winding veneer/panels.
Automotive Manufacturing:
Applications: Strip uncoiler/recoiler rolls, feed rolls for stamping lines, roll forming line roll sets, conveyor/transfer rolls for paint lines, test rig drums/dynamometer rolls, etc.
Functions: Handling metal coils, precisely feeding material for stamping, roll forming flat sheets into specific profiles (e.g., door frames), conveying car bodies through paint lines, simulating road conditions for vehicle testing.
Product Introduction:
As a roller manufacturer with 47 years of history, our company is ISO 9001 certified. We commit to customers through strict quality control, reliable wooden crate packaging design, timely delivery, and cost-effective products. Every precision roller undergoes rigorous quality inspections before shipment, including:
Dynamic balance precision calibration
Runout measurement
Outer diameter measurement with π tape
Surface roughness testing
Weld seam inspection
Coating thickness measurement

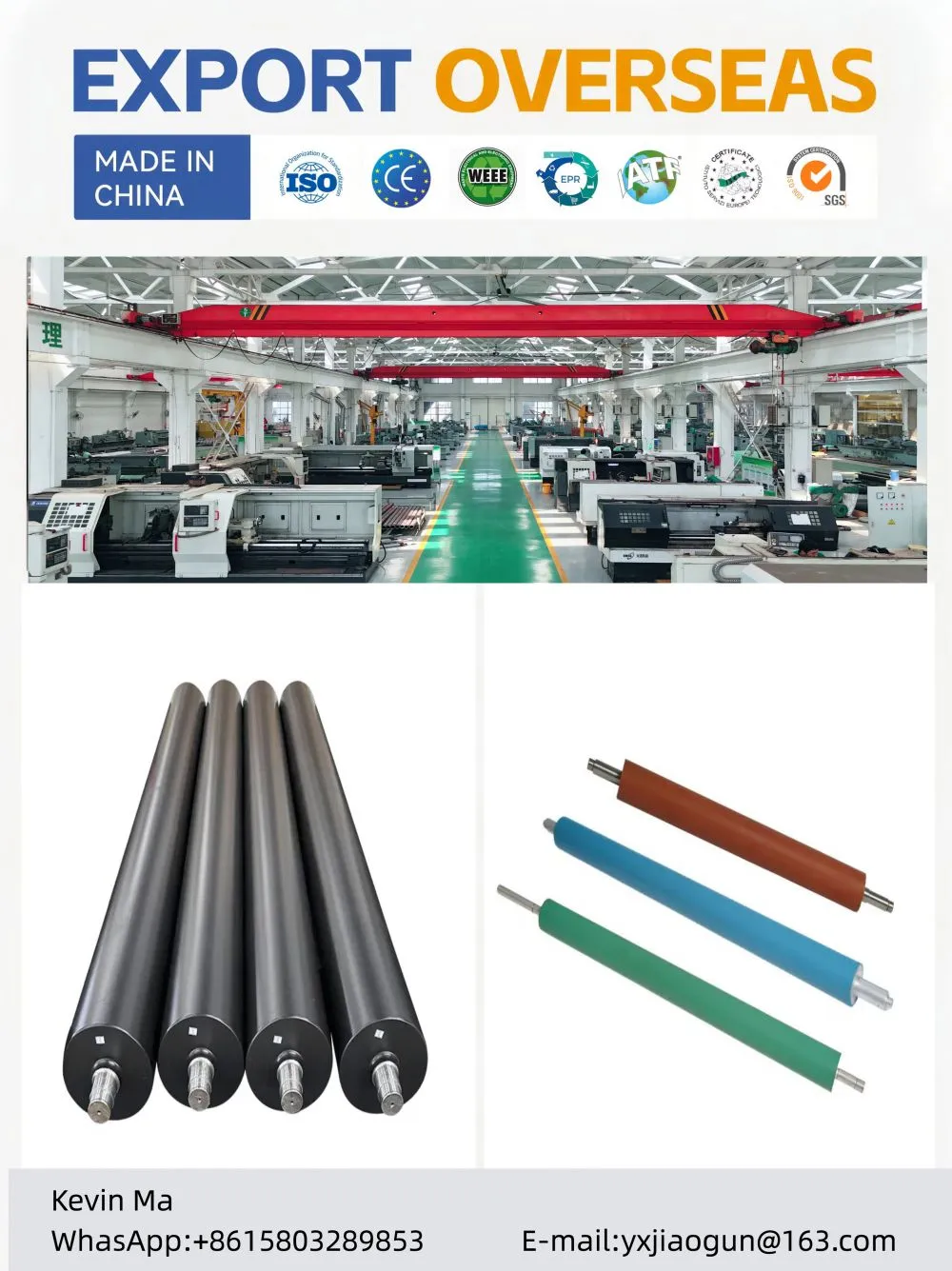

We operate internationally advanced equipment:
▪Polyurethane thermoelastic casting machines (France)
▪ Double-head vacuum platen presses (Taiwan)
▪ Laser measurement systems & triple-roll rubber coating machines (Japan)
▪ Rubber testers (Germany)
▪ Roller winding machines & automated mixing lines (USA)
Supported by 350 production units (including internal mixers, dynamic balancers, CNC lathes) and 1,800+ testing instruments.
Manufacturing Capabilities
Diameter: Max. 2,000mm
Length: Max. 8,000mm
Rubber Materials
NBR, SBR, EPDM, PU, Silicon, CR
Application Industries
Wide-format digital printing | Slitting/rewinding | Textile machinery | Papermaking equipment | Material handling | Glass conveying lines | Packaging machinery | Woodworking | Steel industry
For precise quotation, please provide technical drawings.

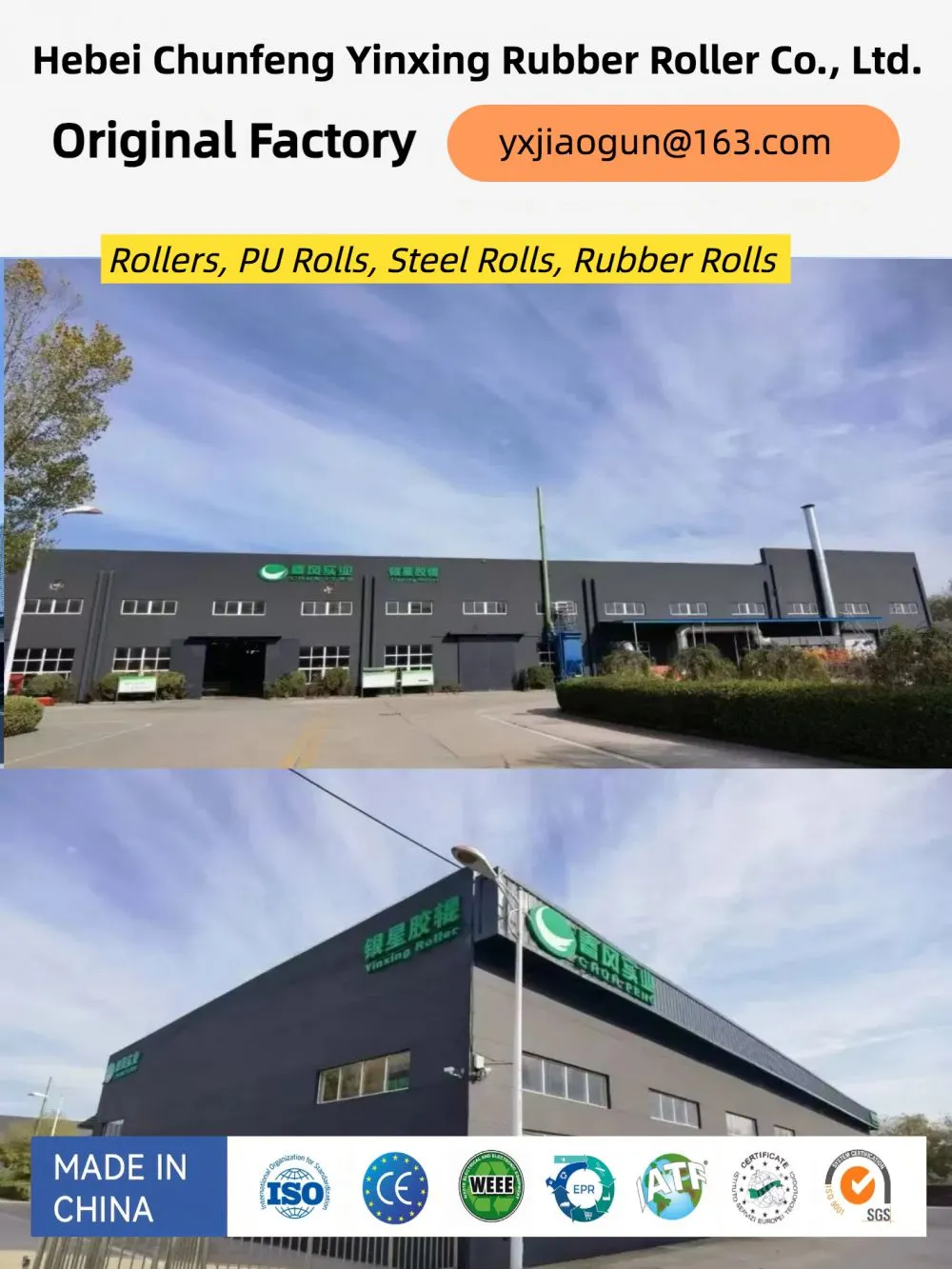

Hebei Chunfeng Yinxing Rubber Roller Co., Ltd.
Kevin Ma
WhasApp:+86 158o3289853
E-mail:yxjiaogun@163. c 0 m
