Help CenterUX Type SiC Heating Element
Related Products

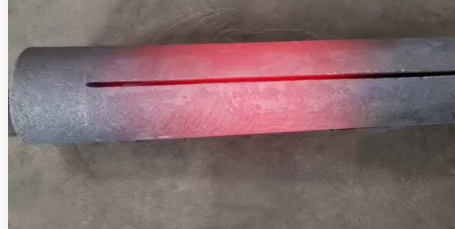

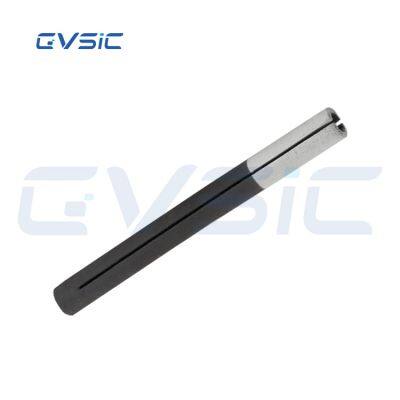

The groove-type SiC heating element, also known as the UX type, features a spiral groove heating section crafted from uniform high-density silicon carbide crystals. This design offers superior heat resistance and corrosion resistance compared to traditional products, making it well-suited for operation under harsh conditions.
| Parameter | Details |
| Material | Silicon Carbide (SiC) |
| Power Supply | Electric |
| Production Process | Crafted from premium silicon carbide blanks, enhanced through high-temperature siliconization recrystallization |
| Silicon Carbide Content | Above 99% |
| Diameter | 12-90 mm |
| Operating Temperature | Up to 1650°C |
| Voltage | 110-480V |
| Packaging | Inner cardboard box with foam padding, outer export wooden crate |
| Application | Industrial heaters/furnace heaters |
| After-sales Service | Overseas service centers available |
| Brand | Chuangwei |
| Diameter (mm) | Resistance and Power (at 1000°C) | |||
| Hot End | Cold End | |||
| Ω/mm | W/mm | Ω/mm | W/mm | |
| 18 | 0.01938 | 8.48 | 0.00129 | 0.56 |
| 20 | 0.0142 | 9.42 | 0.00095 | 0.63 |
| 25 | 0.00902 | 11.78 | 0.0006 | 0.79 |
| 30 | 0.00615 | 14.13 | 0.0004 | 0.94 |
| Property | Value |
| Specific Gravity | 2.6-2.8 g/cm³ |
| Bending Strength | >300 kg |
| Hardness | >9 Mohs |
| Tensile Strength | >150 kg/cm³ |
| Porosity | |
| Emissivity | 0.85 |
| Temperature (°C) | Coefficient of Linear Expansion (10⁻⁶m/°C) | Thermal Conductivity (Kcal/Mhr°C) | Specific Heat (cal/g°C) |
| 0 | - | - | 0.148 |
| 300 | 3.8 | - | - |
| 400 | - | - | 0.255 |
| 600 | 4.3 | 14-18 | - |
| 800 | - | - | 0.294 |
| 900 | 4.5 | - | - |
| 1100 | - | 12-16 | - |
| 1200 | 4.8 | - | 0.325 |
| 1300 | - | 10-14 | - |
| 1500 | 5.2 | - | - |

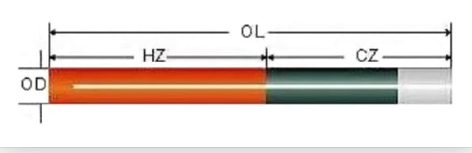

When ordering a groove-type silicon carbide heating element, please provide the following details:
OD: Outer Diameter
HZ: Length of Hot Zone
CZ: Length of Cold Zone
OL: Total Length
groove-type SiC heating element (UX type): OD=54 mm, HZ=1575 mm, CZ=419 mm, OL=2413 mm, resistance=0.9 Ω.
Designated as: UX type, 54/1575/2413/0.90
Note: Should you require specific specifications, please get in touch with us, and we will customize solutions to meet your needs.
The groove-type silicon carbide heating element is frequently employed for heating and insulation of aluminum and zinc liquids, delivering reliable performance in demanding industrial settings.
