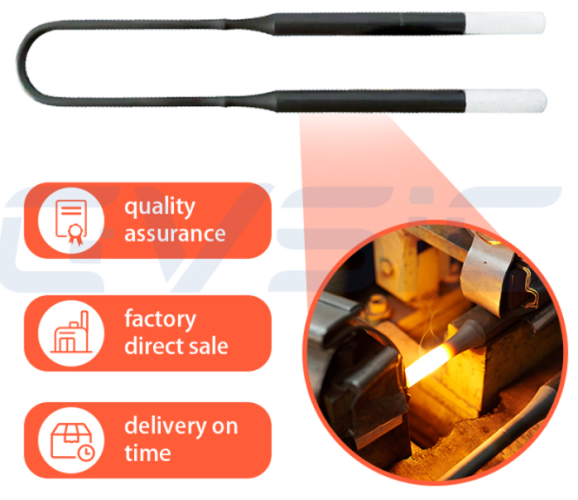

The U-shaped MoSi2 heating element is designed to resemble the English letter "U," offering durability and reliability at high temperatures. It is most commonly used in a hanging configuration, with the bottom of the "U" facing downward. The element comprises two cold ends (Lu) and a single U-shaped hot end (Le). The cold end diameter is twice that of the hot end, connected via welding. The cold ends are metallized with aluminium to provide a low-resistance contact surface, with electrical connections facilitated by flat braided aluminium strips.
Product Specifications
| Parameter | Details |
| Material | Molybdenum Disilicide (MoSi2) |
| Power Supply | Electric |
| Grade | 1700/1800/1900 |
| Diameter | 3/6, 4/9, 6/12, 9/18, 12/24 mm or custom |
| Voltage | 220-480V |
| Bulk Density | 5.5-6.2 g/cm³ |
| Bending Strength | 15-25 kg/cm² |
| Vickers Hardness | (HV) 570 kg/mm² |
| Porosity | 7.40% |
| Water Absorption | 0.20% |
| Thermal Elongation Rate | 4% |
| Application | High-temperature electric furnace heating |
| Brand | Chuangwei |
| After-sales Service | Overseas service centers available |
| Packaging | Inner cardboard box with foam padding, outer export wooden crate |
The U-type MoSi2 heating element is available in standard diameters of 3/6, 4/9, 9/18, and 12/24 mm, with customizable lengths: Lu from 150 to 1000 mm and Le from 150 to 1500 mm. The operating temperature ranges from 800°C to 1850°C, with a maximum capacity of up to 1900°C.
When ordering, please specify the following details:
Material grade: 1700, 1800, or 1900
Diameter: c (cold end diameter mm), d (hot end diameter mm)
Hot end length: Le (mm)
Cold end length: Lu (mm)
Shank spacing: A (mm)
For example:
U-type, material grade 1800, d=3mm, c=6mm, Le=140mm, Lu=125mm, a=25mm
Designated as: 1800, U-type, 3/6 x 140 x 125 x 25
Custom configurations are available to meet your specific needs.
Detailed Parameters of U-type MoSi2 Heating Element

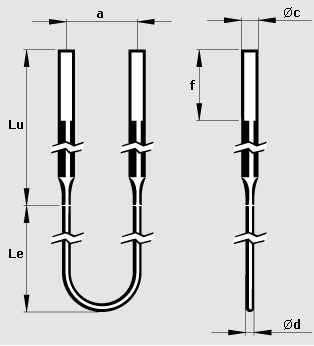

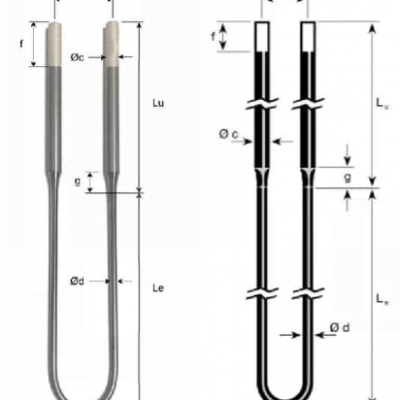

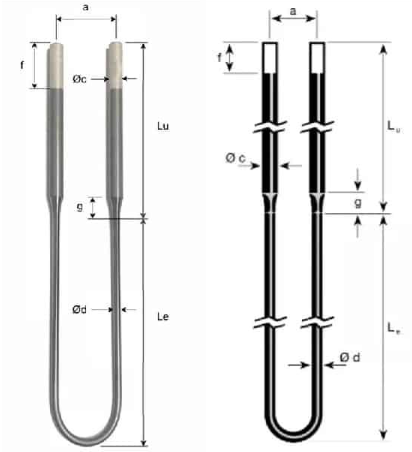

| Diameter (mm) | Hot End Length | c (mm) | d (mm) | f (mm) | g (mm) | A (mm) |
| d/c | Cold End Length | Standard | ||||
| 3/6 | As required | 6 | 3 | 25 | 15 | 25 |
| 4/9 | As required | 9 | 4 | 25 | 15 | 25 |
| 6/12 | As required | 12 | 6 | 45 | 25 | 50 |
| 9/18 | As required | 18 | 9 | 75 | 30 | 60 |
| 12/24 | As required | 24 | 12 | 100 | 40 | 80 |
Dimension Tolerance: ±5% (excluding c and d)
Impact of Different Atmospheres on Element Temperature
| Atmosphere | Maximum Temperature of Element |
| 1700 | |
| NO2, CO2, O2, Air | 1700°C |
| He, Ar, Ne | 1650°C |
| SO2 | 1600°C |
| CO, N2 | 1500°C |
| Wet H2 | 1400°C |
| Dry H2 | 1350°C |
Resistance Characteristics
The resistance of the MoSi2 heating element increases rapidly with rising temperatures. Under normal operating conditions, the element's resistance remains stable over time, allowing new and old elements to be used together seamlessly.
| Element Temperature (°C) | 1700 Type Resistivity (Ω·mm²/m) | 1800 Type Resistivity (Ω·mm²/m) |
| 800 | 1.846 | 1.714 |
| 900 | 2.071 | 1.918 |
| 1000 | 2.285 | 2.142 |
| 1100 | 2.499 | 2.366 |
| 1200 | 2.734 | 2.601 |
| 1300 | 2.968 | 2.836 |
| 1400 | 3.223 | 3.05 |
| 1500 | 3.488 | 3.315 |
| 1600 | 3.743 | 3.57 |
| 1700 | 4.029 | 3.805 |
| 1800 | 4.316 | 4.06 |
