VME Bus Single Board Computer MVME2305-900

VME Bus Single Board Computer MVME2305-900 thumbnail-1
VME Bus Single Board Computer MVME2305-900 thumbnail-2
VME Bus Single Board Computer MVME2305-900 thumbnail-3
VME Bus Single Board Computer MVME2305-900 photo-1

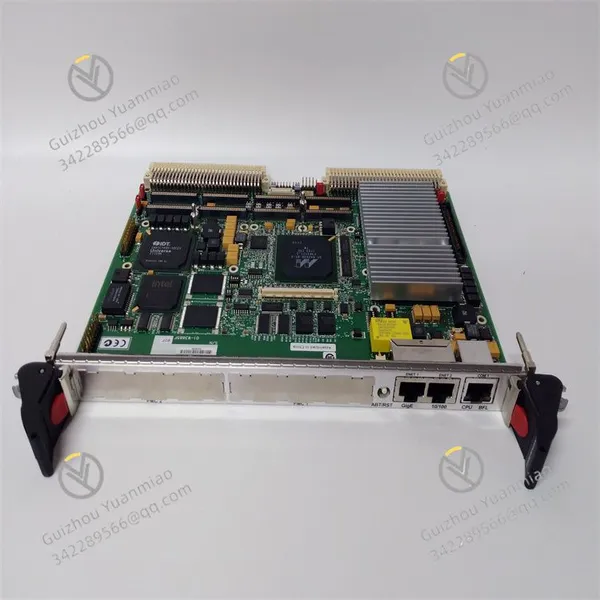

VME Bus Single Board Computer MVME2305-900 photo-2
VME Bus Single Board Computer MVME2305-900 photo-3
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, Global universal model
Condition:
Other, Global universal model
Task:
Other, Global universal model
Contact Supplier Request Quote Chat Now
Guizhou Yuanmiao Automation Equipment Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Material Other, Global universal model
Condition Other, Global universal model
Task Other, Global universal model
Mathematical Model Other, Global universal model
Signal Other, Global universal model
Customized Non-Customized
Structure Other, Global universal model
Operating temperature -40℃~+85℃
Humidity 5%~95% (non-condensing)




Many products are not on the shelves yet, please contact us for more models.




MVME 2305-900 is a high-performance VME bus single-board computer launched by General Electric (GE), specifically designed for harsh industrial environments. Here are its detailed specifications:
Core Parameters

  • Processor: PowerPC 603e processor with a 200MHz clock speed, featuring a Floating-Point Unit (FPU). It can efficiently handle complex control algorithms and real-time data processing.

  • Memory Configuration:

    • Standard 512MB SDRAM (expandable to 1GB) with ECC (Error-Checking and Correction) functionality to ensure data integrity, critical for preventing errors in mission-critical applications.

    • 16MB Flash memory (expandable to 32MB) for storing operating systems and application programs, enabling stable startup and persistent storage.

  • Data Storage: Integrates a CompactFlash slot, supporting storage capacities of up to 2GB for long-term data storage or system image backups.

Interface Specifications

  • VME Bus: Complies with the VME64 standard (VITA 1-1994), featuring a 32-bit data bus with a maximum transfer rate of 40MB/s and supporting D0-D31 data transmission.

  • Communication Ports:

    • 2 RS-232/422/485 serial ports (DB9 connectors) with a maximum communication rate of 921.6kbps, suitable for connecting to legacy industrial devices or serial-based sensors.

    • 2 10/100Mbps adaptive Ethernet ports (RJ45) supporting TCP/IP, UDP, and other protocols, enabling industrial network communication or remote monitoring.

    • 1 USB 1.1 port (Type A) for connecting external devices such as keyboards, mice, or USB drives for configuration or data transfer.


MVME7100 (2)



  • Timing Functions:

    • Integrates a high-precision Real-Time Clock (RTC) with a backup battery (supporting approximately 3 years of standby time) to ensure system time accuracy even during power outages.

    • Programmable timers/counters supporting event counting, frequency measurement, and other time-sensitive tasks.

Operating System Support

  • Real-Time Operating Systems (RTOS): Compatible with mainstream RTOS such as VxWorks, QNX, and Linux, meeting the strict real-time requirements of industrial control applications.

  • Development Environments: Works with development tools like Wind River Workbench and Metrowerks CodeWarrior, supporting programming languages including C, C++, and Ada for application development.

Mechanical & Environmental Parameters

  • Dimensions: Standard 6U VME board (160mm × 233.35mm), compliant with the VITA 3-1997 mechanical specification, ensuring compatibility with standard VME bus enclosures.

  • Cooling Method: Fanless design relying on conduction cooling, making it suitable for high-vibration and dusty environments where fan failure risks exist.

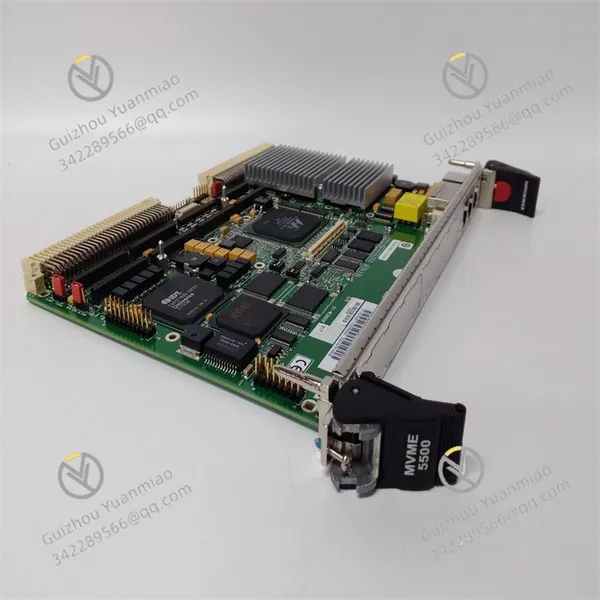

MVME55006E-0163 (1)




Related products:

MOTOROLA MCP750
MOTOROLA MVME162-012
MOTOROLA MVME162-10
MOTOROLA MVME162-13
MOTOROLA MVME162-220
MOTOROLA MVME162-512
MOTOROLA MVME162-210
MOTOROLA MVME5500
MOTOROLA MVME712/M
MOTOROLA MVME162-533A
MOTOROLA MVME162PA-344
MOTOROLA MVME188A





Product Tags: MVME2305-900 , MOTOROLA , VME bus single board computer
