MVME5500-0163 High Performance Embedded Processor Board

Guizhou Yuanmiao Automation Equipment Co., Ltd.
1Yr
MVME5500-0163 High Performance Embedded Processor Board thumbnail-1
MVME5500-0163 High Performance Embedded Processor Board thumbnail-2
MVME5500-0163 High Performance Embedded Processor Board thumbnail-3
MVME5500-0163 High Performance Embedded Processor Board photo-1
MVME5500-0163 High Performance Embedded Processor Board photo-2

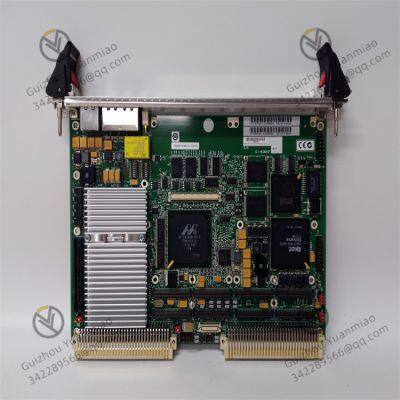

MVME5500-0163 High Performance Embedded Processor Board photo-3
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, Global universal model
Condition:
Other, Global universal model
Task:
Other, Global universal model
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Material Other, Global universal model
Condition Other, Global universal model
Task Other, Global universal model
Mathematical Model Other, Global universal model
Signal Other, Global universal model
Customized Non-Customized
Structure Other, Global universal model
Operating temperature -40℃~+85℃
Humidity 5%~95% (non-condensing)




Many products are not on the shelves yet, please contact us for more models.




The MVME5500-0163 is a high-performance embedded processor board based on the Motorola PowerPC series processors. Here are its detailed specifications:
Processor
It adopts the PowerPC MPC7457 processor, with a main frequency of typically 1.2GHz, and some versions running at 1.267GHz or 1GHz. This processor offers strong computing power, enabling efficient handling of real-time control tasks and complex data processing.
Memory & Storage

  • Memory: Supports a maximum of 2GB DDR SDRAM, which provides sufficient space for real-time data operations and multi-task running.

  • Built-in Storage: Integrates DDR SDRAM and flash memory. It also supports a maximum of 4GB CompactFlash for flexible storage of operating systems, application programs, and historical data.

  • Storage Expansion: Compatible with PMC cards and XMC slots, allowing for extended storage capacity or additional functional modules (such as high-speed data acquisition cards) based on actual needs.

Interface Specifications

  • Network Interfaces: 4 Gigabit Ethernet ports for high-speed data transmission and network communication, suitable for scenarios requiring large data interaction (e.g., industrial Ethernet control systems).

  • USB Ports: 4 USB interfaces to connect external devices such as keyboards, mice, and USB storage drives, facilitating on-site debugging and data transfer.

  • Serial Ports: 3 serial ports, which can be configured for industrial communication protocols (e.g., RS-232/422/485) to connect to legacy devices like sensors or actuators.

  • Other Interfaces: 1 CAN bus interface (for vehicle-mounted or industrial fieldbus communication) and 1 SATA interface (for connecting external hard drives for mass storage).

  • Bus Support: Supports dual independent 64-bit PCI buses and a PMC site, enhancing the system’s expandability for integrating various functional modules.

MVME55006E-0163 (1)



Bus Standard
Compliant with the VME64/64x standard, it can be seamlessly integrated into VME bus systems, ensuring compatibility with other VME-based industrial control modules and facilitating the construction of large-scale control systems.
Power Requirements

  • Input voltage: +12V to +24V DC, compatible with common industrial DC power supplies.

  • Designed with power protection functions (such as overvoltage and overcurrent protection) to prevent damage to the board caused by power supply abnormalities.

Mechanical & Environmental Parameters

  • Dimensions & Weight: Approximately 233mm x 168mm x 44mm in size and weighs about 1.8kg, suitable for installation in standard industrial control cabinets or rack-mounted enclosures.

  • Operating Temperature: -40°C to +85°C, ensuring stable operation in extreme environments such as high-temperature workshops, cold storage, or outdoor equipment rooms.

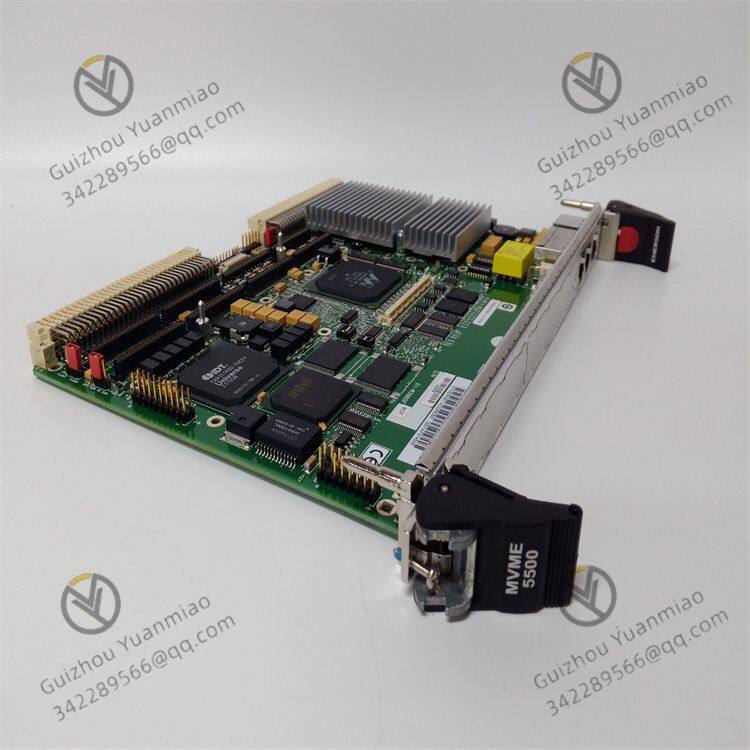

    MVME55006E-0163 (3)

  •
