MVME162-14 Dual High VME Module

MVME162-14 Dual High VME Module thumbnail-1
MVME162-14 Dual High VME Module thumbnail-2
MVME162-14 Dual High VME Module thumbnail-3

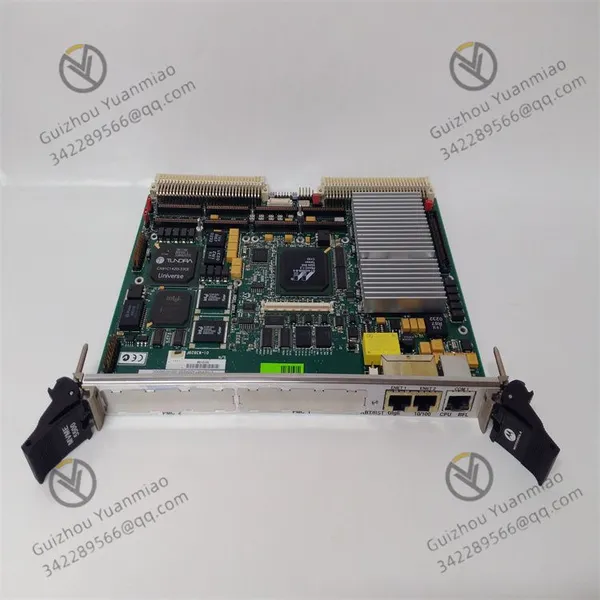

MVME162-14 Dual High VME Module photo-1

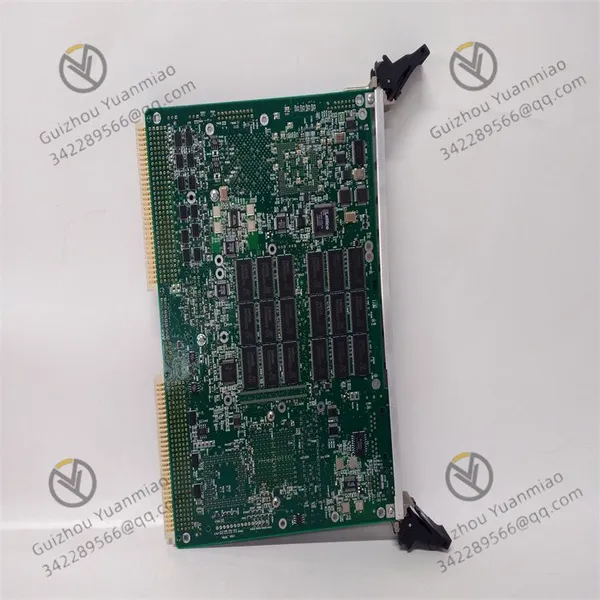

MVME162-14 Dual High VME Module photo-2

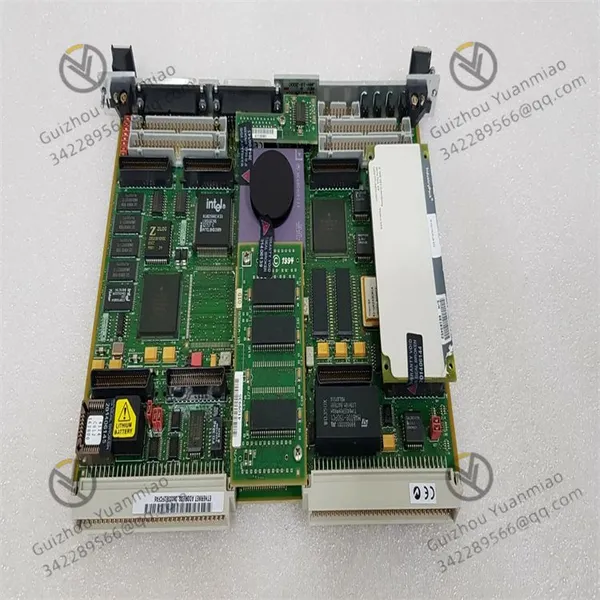

MVME162-14 Dual High VME Module photo-3
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, Global universal model
Condition:
Other, Global universal model
Task:
Other, Global universal model
Contact Supplier Request Quote Chat Now
Guizhou Yuanmiao Automation Equipment Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Material Other, Global universal model
Condition Other, Global universal model
Task Other, Global universal model
Mathematical Model Other, Global universal model
Signal Other, Global universal model
Customized Non-Customized
Structure Other, Global universal model
Operating temperature -40℃~+85℃
Humidity 5%~95% (non-condensing)




Many products are not on the shelves yet, please contact us for more models.




The MVME162-14 is a product in Motorola's MVME162 series, featuring a dual-height VME module design. This series is based on the Motorola 68k processor family and is widely used in embedded systems such as industrial automation, robot control systems, and data acquisition & monitoring systems. Here are its detailed specifications:
Processor

  • Optional 25MHz or 32MHz MC68040 enhanced 32-bit microprocessor, equipped with an 8KB cache, MMU (Memory Management Unit), and FPU (Floating-Point Unit).

  • Alternatively, an optional 25MHz MC68LC040 enhanced 32-bit microprocessor, featuring an 8KB cache and MMU.

Memory Configuration

  • DRAM: 4MB, 8MB, 16MB, or 32MB of shared DRAM, supporting parity checking or ECC (Error-Correcting Code) functionality. It can be expanded to 64MB via an expansion mezzanine.

  • SRAM: 128KB SRAM with a backup battery, used to preserve critical data during power outages.

  • Additional Storage:

    • Some models include flash memory for on-board monitoring/debugging (e.g., 1MB for MVME162-2xx/3xx models and 2MB for 7xx/8xx models).

    • 8K x 8 NVRAM (Non-Volatile Random-Access Memory) for persistent data storage.

    • A battery-backed real-time clock (TOD clock) to maintain accurate time tracking.

MVME162-511A—01



Interface Types

  • VME Bus Interface: A32/D64 VME bus master/slave interface with system controller functionality. It supports high-performance DMA and is compatible with VMEbus D64 and local bus memory burst cycles.

  • Serial Ports: 4 serial communication ports configured as EIA-232-D DTE, enabling connection to peripherals or legacy devices.

  • Expansion Ports: 2 Industry Pack ports for connecting additional functional modules (e.g., I/O cards, communication adapters).

  • Optional Interfaces:

    • SCSI bus interface with 32-bit local bus burst DMA (for high-speed storage device connections).

    • Ethernet transceiver interface with 32-bit local bus DMA (for network communication).

  • Programmable Sockets: 4 32-pin JEDEC sockets for EPROM and flash memory (available only on MVME162-2xx/3xx models; 7xx/8xx models have 2 sockets).

Timers

  • 6 32-bit timers (4 of which are independent of the VMEbus) for timing control, event counting, or pulse generation.

  • A watchdog timer to detect system malfunctions and trigger reset operations if anomalies occur, enhancing system reliability.

VME Bus Features

  • Supports 4-level requesters and 7-level interrupters, as well as 7-level interrupt handlers, enabling flexible interrupt management in multi-device systems.

  • Equipped with remote reset/abort/status control functions, allowing centralized management and monitoring of the module via the VMEbus.

MVME162PA-344E—02

  •





Related products:

MOTOROLA MCP750
MOTOROLA MVME162-012
MOTOROLA MVME162-10
MOTOROLA MVME162-13
MOTOROLA MVME162-220
MOTOROLA MVME162-512
MOTOROLA MVME162-210
MOTOROLA MVME5500
MOTOROLA MVME712/M
MOTOROLA MVME162-533A
MOTOROLA MVME162PA-344
MOTOROLA MVME188A





Product Tags: MVME162-14 , MOTOROLA , Dual high VME module
