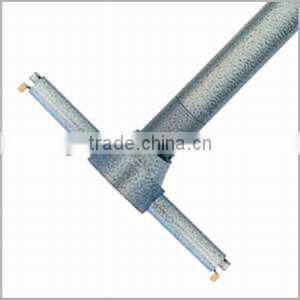

Digital Three-point Internal Micrometer
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
eagle
Model Number:
200-500mm 200-1000mm
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Shandong, China
Brand Name
eagle
Model Number
200-500mm 200-1000mm
Specifications
arge measuring range due to the patent structure and interchangeable measuring rods.Digital Three-point internal micrometer
Features:
Large measuring range due to the patent structure and interchangeable measuring rods.
High accuracy interchangeable measuring rod enable that reading does not have to be reset after changing rods.Ratchet stop.
Protection level IP54.Criterion: DIN 40050/IEC529
RS232 data output.Connecting cable :P1102(optional accessories)
L-maximum dimension of measured diameter
Specification
| Range | Accuracy | Setting rings | Interchangeable measuring rods(L) | Extension rod | Item No. |
| 200-500mm | (1+L/50)μm | Φ200mm | 3x50mm,3x100mm | 150mm,500mm | 725640 |
| 200-1000mm | (1+L/50)μm | Φ200mm |
3x50mm,3x100mm,3x150mm,3x200mm, 3x250mm,3x300mm,3x350mm |
150mm,500mm,1000mm | 725641 |
| 8-20" | 0.00004(1+L/2)" | Φ8" | 3x2",3x4" | 6",20" | 725642 |
| 8-40" | 0.00004(1+L/2)" | Φ8" |
3x2",3x4",3x6",3x8", 3x10",3x12"3x14" |
6",20",40" | 725643 |
