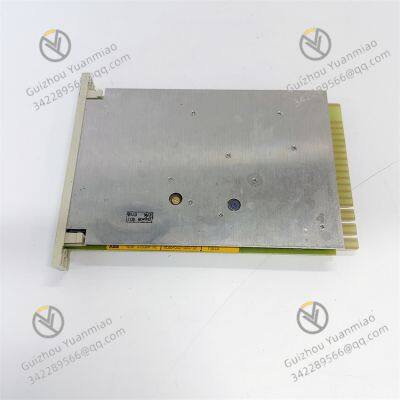

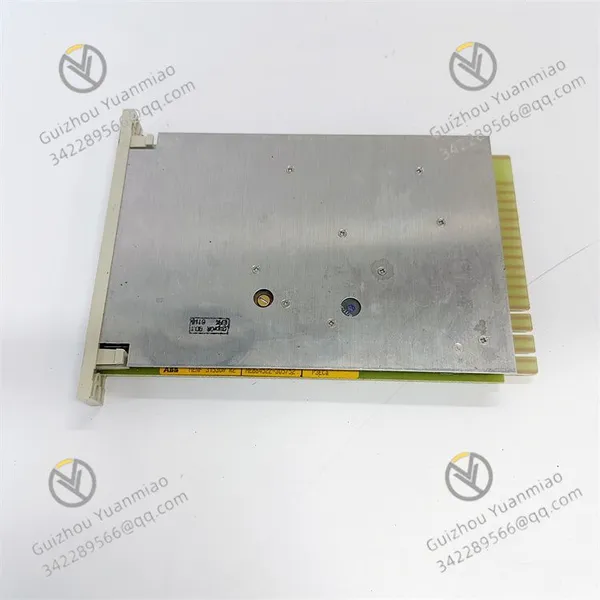

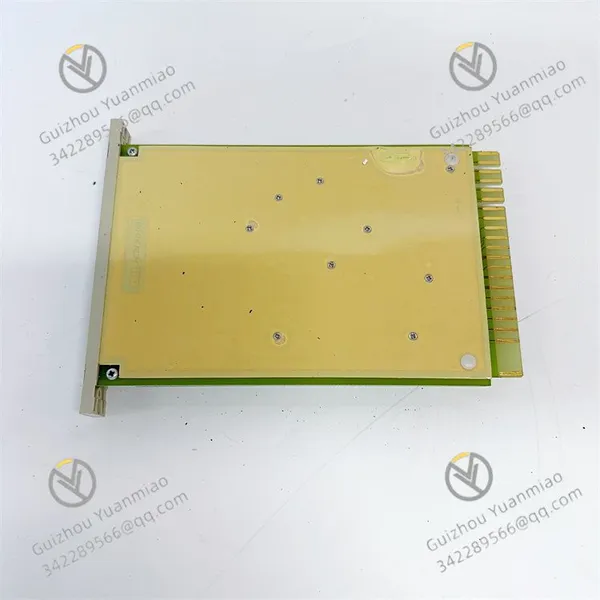

P3ECa HENF315309R2 Automation Control Module

Guizhou Yuanmiao Automation Equipment Co., Ltd.

1Yr

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Material:

Other, Global universal model

Condition:

Other, Global universal model

Task:

Other, Global universal model

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Material Other, Global universal model

Condition Other, Global universal model

Task Other, Global universal model

Mathematical Model Other, Global universal model

Signal Other, Global universal model

Customized Non-Customized

Structure Other, Global universal model

Operating temperature -40℃~+85℃

Humidity 5%~95% (non-condensing)

Many products are not on the shelves yet, please contact us for more models.

Product Overview: P3ECa HENF315309R2 is a model of industrial automation control module in ABB's E-series. It is mainly applied in programmable logic controllers (PLC) and distributed control systems (DCS), responsible for collecting, processing, and performing logical operations on industrial on-site signals, as well as controlling equipment. It can realize precise regulation of production processes and enhance the stability and operational efficiency of industrial automation systems.
Technical Parameters:

Power Supply Parameters: The input voltage is 24V DC±20%, supporting wide voltage input to adapt to power fluctuations in industrial sites, with a rated power consumption of approximately 7W.
Input/Output: It includes multiple channels of digital input (DI), digital output (DO), analog input (AI), and analog output (AO). Among them, analog input supports standard industrial signals such as 4-20mA and 0-10V, with an accuracy of ±0.1%; digital output is of relay or transistor type, and the maximum load current is 2A or 5A depending on the model.

Communication Capability: It supports mainstream industrial communication protocols like Modbus RTU and Profibus DP, and is equipped with an RS-485 serial port and an Ethernet interface, enabling efficient data interaction with upper computers, HMIs (Human-Machine Interfaces), and other devices.
Environmental Adaptability: The operating temperature range is -20°C to +60°C, and the storage temperature range is -40°C to +85°C, allowing stable operation in high and low temperature environments; the protection class is IP20, suitable for installation in control cabinets.
Physical Specifications: The dimensions are approximately 115mm×90mm×38mm, adopting a DIN rail mounting method, with a weight of about 0.3kg. Its compact structure saves installation space.
