Input Voltage: Accommodates a wide input voltage range, typically spanning from 100 - 240VAC. This versatility enables it to be integrated into diverse industrial environments, whether in regions with standard 110VAC or 220VAC power supplies. It eliminates the need for extensive voltage adaptation measures in most cases, simplifying the installation process.
Output Voltage: Delivers a stable 24VDC output. This constant DC voltage is well - suited for powering a variety of industrial devices, including control units, sensors, and actuators that require a reliable and consistent power source for proper functioning.
Connection Type: Features screw - type wiring terminals for power connection. Screw terminals offer a secure and durable connection method, capable of withstanding vibrations and mechanical stress commonly found in industrial settings. They also facilitate easy installation and maintenance, as technicians can securely fasten wires using standard tools.
Installation Method: Designed for DIN rail installation, which is a prevalent and convenient method in industrial control panels. DIN rail installation allows for quick and straightforward integration of the module into standard - equipped enclosures. It optimizes space utilization and contributes to a more organized wiring layout, streamlining system integration and future maintenance.
Physical Dimensions: Weighs approximately 0.26 kg and has dimensions of 22 mm x 12.7 cm x 3.3 cm. Its compact and lightweight design makes it suitable for applications where space is at a premium, such as small - scale industrial control boxes or equipment with limited installation space.
Rated Input Voltage (Specific): In certain operational scenarios, the rated input voltage for optimal performance is 28V DC, as seen in related models. This indicates the module's ability to operate efficiently under specific DC input conditions, providing flexibility in power source selection depending on the industrial setup.

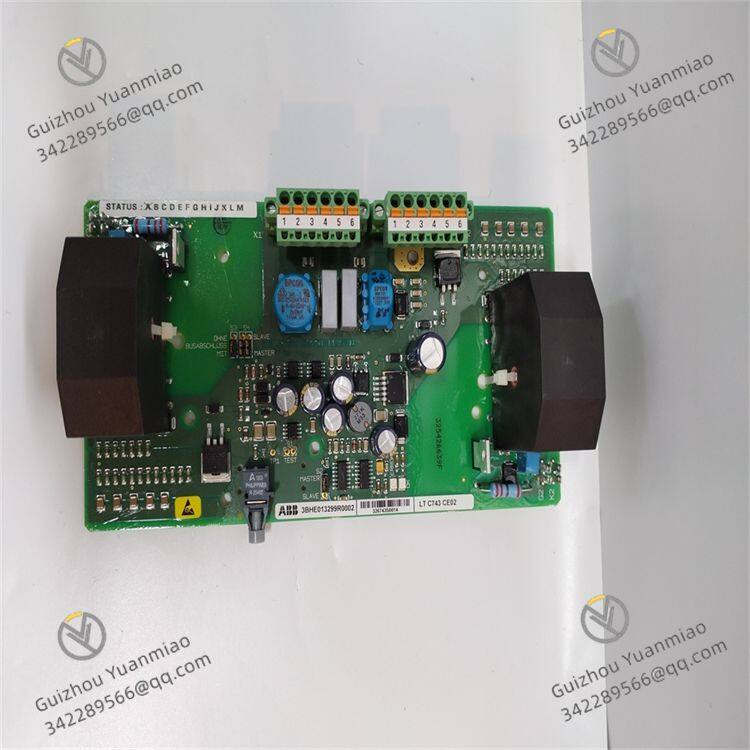

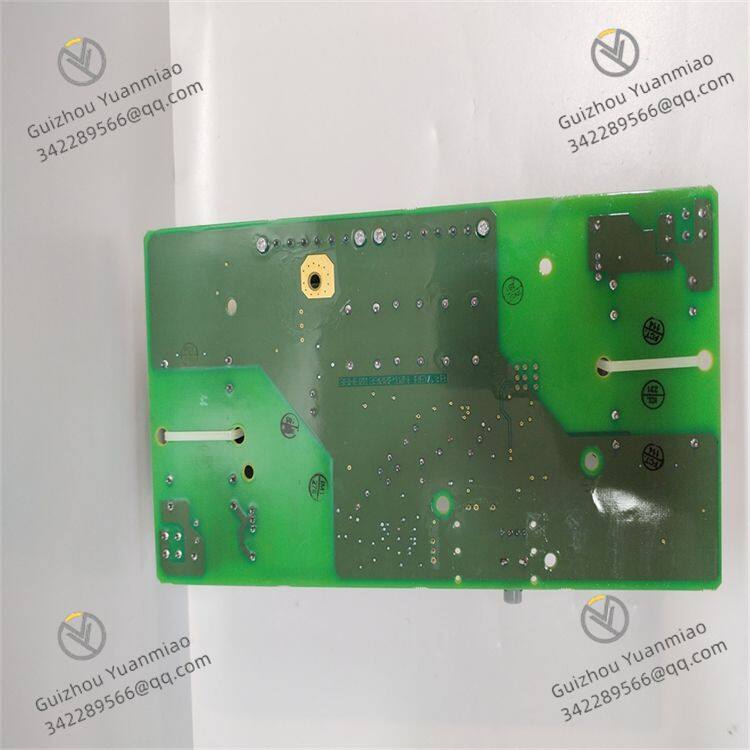

High - Efficiency Operation: Engineered for high - efficiency performance, the LTC743CE 3BHE013299R0002 minimizes power losses during the conversion process. This not only results in energy savings but also reduces heat generation, enhancing the module's long - term reliability. In industrial applications with multiple power - consuming devices, its energy - efficient operation can lead to significant cost savings over time.
Exceptional Reliability: Constructed with high - quality components and advanced manufacturing techniques, it offers outstanding reliability. ABB's strict quality control processes ensure that the module can endure harsh industrial environments, including temperature fluctuations, humidity, and electrical interference. This reliability is crucial for maintaining continuous operation in industrial processes where downtime can be costly.
Comprehensive Protection Mechanisms: Equipped with a suite of protection functions, including overload protection, overheat protection, and short - circuit protection. In the event of an overload, where the current drawn by connected devices exceeds the module's rated capacity, the overload protection mechanism activates to prevent damage to both the module and the connected equipment. Overheat protection monitors the module's temperature and takes appropriate action, such as cooling or shutting down, if the temperature reaches a dangerous level. Short - circuit protection rapidly cuts off the power supply when a short - circuit occurs, safeguarding the entire electrical system.
Functional Module Independence: Based on the principle of functional modularity, abstraction, information hiding, and localization, the module exhibits a high degree of functional module independence. Each functional module within the LTC743CE 3BHE013299R0002 has a single, well - defined function and minimal connections with other modules. This design approach simplifies testing, maintenance, and upgrades. For example, if there is a need to modify or replace the power - supply function in a complex industrial system, the independent nature of this module allows for seamless implementation without disrupting other parts of the system.
Optional High - Accuracy Time Tagging: In some configurations, the module may support high - accuracy time - tagging functionality. This feature is invaluable in industrial processes where precise timing of events is critical, such as in data acquisition systems or control systems that require synchronization. High - accuracy time - tagging enables accurate timestamping of data, facilitating better analysis and control of industrial operations.
Defined Outputs during Communication Errors: When communication errors occur within the industrial network, the module is designed to provide predefined outputs. This ensures the stability of the overall system. For instance, if there is a temporary disruption in communication between the power module and other components in the control system, the module can output a specific signal or maintain a certain power - supply state to prevent unexpected behavior in the connected devices.
Intrinsic Safety Interfaces (in Some Versions): Some versions of the LTC743CE 3BHE013299R0002 are equipped with I/O modules featuring intrinsic safety interfaces. These interfaces are essential in hazardous environments, such as those found in the chemical or oil - and - gas industries. They are designed to prevent electrical sparks or high temperatures that could potentially ignite flammable substances, ensuring the safety of personnel and equipment.
