PP865 3BSE042236R1 Human Machine Interface (HMI) Panel

Guizhou Yuanmiao Automation Equipment Co., Ltd.

1Yr

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Material:

Other, Global universal model

Condition:

Other, Global universal model

Task:

Other, Global universal model

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Material Other, Global universal model

Condition Other, Global universal model

Task Other, Global universal model

Mathematical Model Other, Global universal model

Signal Other, Global universal model

Customized Non-Customized

Structure Other, Global universal model

Operating temperature -40℃~+85℃

Humidity 5%~95% (non-condensing)

Many products are not on the shelves yet, please contact us for more models.

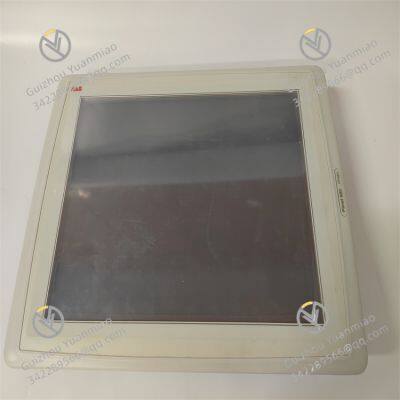

Product Overview: PP865 3BSE042236R1 is a 15-inch TFT human-machine interface (HMI) panel, specifically designed for industrial automation applications. It provides operators with a user-friendly interface for monitoring and controlling processes.
Technical Parameters:

Dimensions and Weight: The front panel dimensions are 398×304×6mm, the installation depth is 60mm (including a 160mm gap), and the weight is approximately 3.7kg.
Display Parameters: It adopts a TFT-LCD display with a resolution of 1024×768 pixels, 64K colors, an effective display area of 304.1×228.1mm, and the backlight lifespan is more than 35,000 hours at 25°C.
Interface Types: Equipped with RS422/RS485 (25-pin D-type female), RS232C (9-pin D-type male) serial ports, a shielded RJ45 Ethernet interface, a Type A host USB interface (USB 1.1, maximum 500mA output), a Type B device USB interface (USB 1.1), and Type I and Type II CompactFlash slots.
Power Requirements: The power supply is +24V DC (20-30V DC), supplied through a 3-pin jack block. The normal power consumption is 1.2A, and the maximum power consumption is 1.7A.
Other Parameters: The real-time clock accuracy is affected by ambient temperature and power supply voltage, with an error of ±20ppm. The maximum total error at 25°C is 1 minute/month. It is powered by a CR2450 battery with a minimum lifespan of 3 years. The operating temperature is 0°C to +50°C when vertically installed and 0°C to +40°C when horizontally installed. The storage temperature is -20°C to +70°C, and the relative humidity is 5-85% (non-condensing).

High-Resolution Display: Provides clear and detailed display effects, allowing users to easily read various data and charts.
High Touch Sensitivity: Accurately recognizes user touch operations, ensuring operational accuracy and response speed.
Support for Multiple Communication Protocols: Compatible with various industrial communication protocols such as Modbus, Profibus, and Ethernet/IP, enabling seamless connection with PLCs, sensors, and other devices.
Rich Functions: Supports alarm management, trend graph display, recipe management, and other functions to meet diverse needs in the field of industrial automation.
