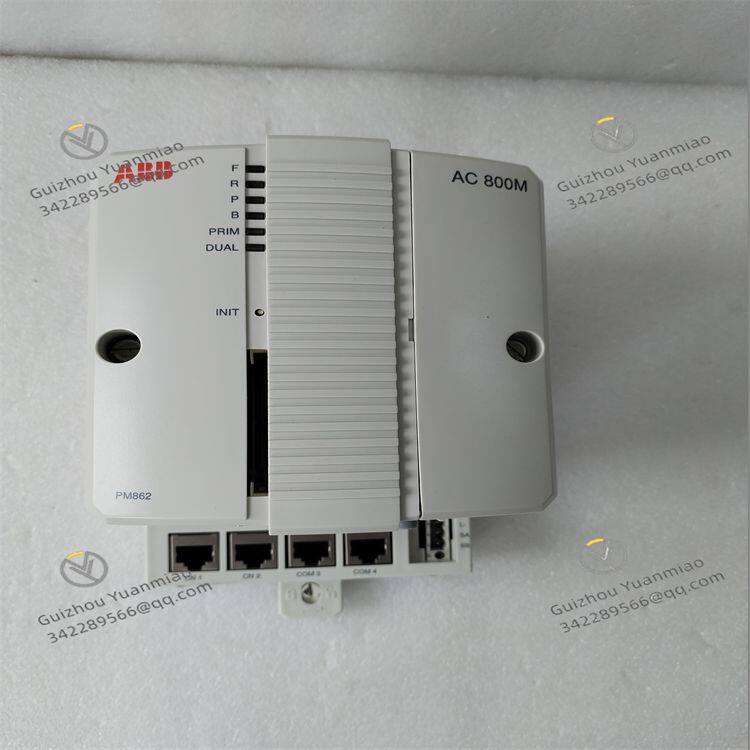

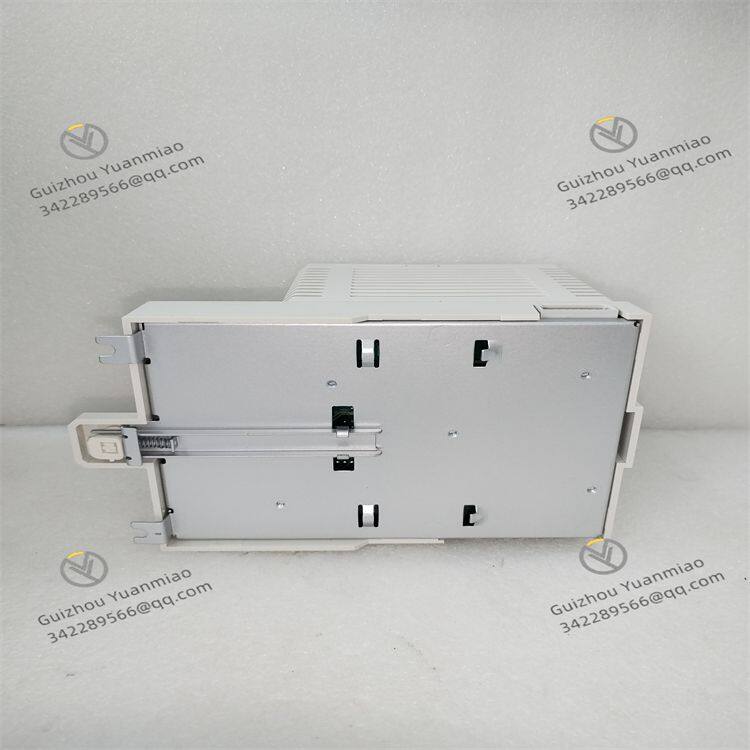

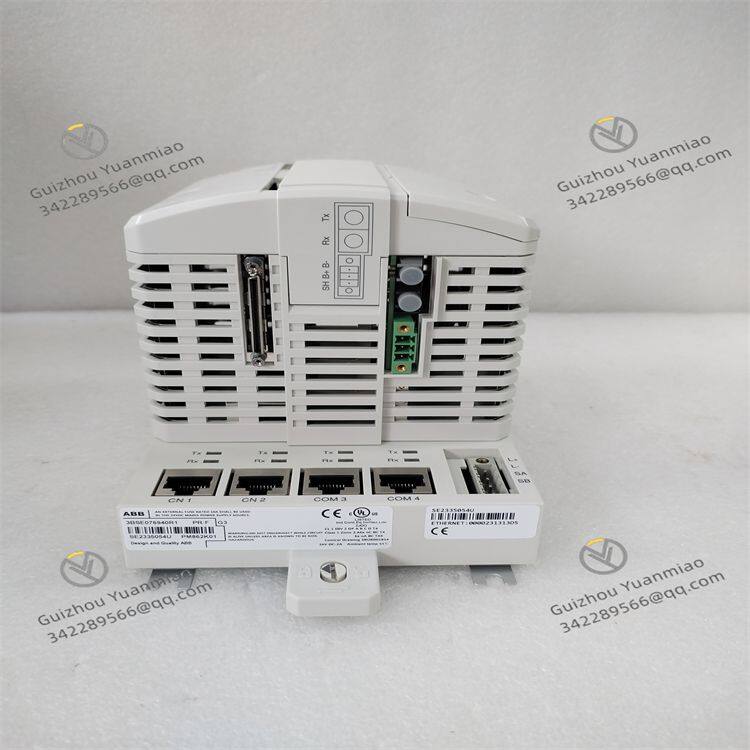

ABB PM862K02 3BSE081636R1 Processor Unit

ABB PM862K02 3BSE081636R1 Processor Unit thumbnail-2

ABB PM862K02 3BSE081636R1 Processor Unit thumbnail-3

ABB PM862K02 3BSE081636R1 Processor Unit photo-1

ABB PM862K02 3BSE081636R1 Processor Unit photo-2

ABB PM862K02 3BSE081636R1 Processor Unit photo-3

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Other, Global universal model

Condition:

Other, Global universal model

Task:

Other, Global universal model

Contact Supplier Request Quote Chat Now

Guizhou Yuanmiao Automation Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Other, Global universal model

Condition Other, Global universal model

Task Other, Global universal model

Mathematical Model Other, Global universal model

Signal Other, Global universal model

Customized Non-Customized

Structure Other, Global universal model

Operating temperature -25℃ to +70℃

Relative humidity 5%~95% (non-condensing)

Dimensions 160mm×100mm×80mm

Overview

ABB PM862K02 3BSE081636R1 is a high-performance processor module belonging to the ABB AC 800M series control system. It is a core component designed for mid-range industrial automation control scenarios in this series. It undertakes key tasks such as data calculation, logic control, process scheduling, and communication with various I/O modules and upper-level systems. It can integrate various on-site signals (such as temperature, pressure, switch status, etc.), perform real-time processing according to preset control strategies, and output precise control commands to drive actuators to complete corresponding operations. With balanced performance, reliable stability, and flexible expandability, this module is widely used in medium-sized industrial automation production lines, process control units, and equipment cluster management, providing solid control support for the efficient operation of production processes.

Technical Parameters

Processor Performance: Equipped with a 32-bit RISC processor with a main frequency of 533MHz and a computing capacity of 80 MIPS (million instructions per second). It can handle multi-task control logic simultaneously, meeting medium-complexity control requirements (such as systems containing 500-800 control loops).
Memory Configuration: Built-in 512MB DDR2 RAM (with ECC verification, which can automatically correct single-bit errors), 256MB Flash program memory, and supports SD card expansion (up to 32GB) for data log storage.
Communication Interfaces: Equipped with 2 10/100Mbps adaptive Ethernet interfaces (supporting Modbus TCP/IP, Profinet) and 1 RS-485 serial port (supporting Modbus RTU). The Ethernet interfaces support redundant configuration, and the communication interruption switching time is ≤5ms.
Power Parameters: Adopts 24VDC DC power supply, with an allowable voltage fluctuation range of ±15% and a rated power consumption of ≤12W. It has overvoltage (≥30VDC) and undervoltage (≤18VDC) protection functions.
Environmental Adaptability: Operating temperature ranges from -25℃ to +70℃, relative humidity from 5% to 95% (non-condensing), protection class IP20 (must be installed in a control cabinet). It has passed the IEC 61000-6-2 industrial anti-electromagnetic interference certification and can withstand vibration (10-500Hz, 10g acceleration) and impact (25g acceleration).
Mechanical Specifications: Dimensions are 160mm×100mm×80mm (length × width × height), weight is about 0.6kg. It supports DIN rail mounting and hot swapping, and module replacement does not require shutdown.

Functional Features

Efficient Control and Real-time Response: The 533MHz processor is paired with an optimized real-time operating system (RTOS), with a control cycle as low as 1ms, enabling quick response to changes in on-site signals. For example, in food packaging production lines, it can accurately synchronize the speed of the conveyor belt with the action of the filling valve, controlling the material filling error within ±1ml.
Flexible Programming and Compatible Expansion: Supports IEC 61131-3 standard programming languages (ladder diagram, function block diagram, structured text, etc.), and is configured through ABB Control Builder M software. It can seamlessly interface with I/O modules of the AC 800M series (such as CI854B, AI890), and can be expanded to a maximum of 256 I/O channels to meet system expansion needs.
Redundant Design and High Reliability: Supports power redundancy (requires matching with a redundant power module) and Ethernet communication redundancy, with undisturbed switching between main and standby links in case of failure. It has built-in hardware watchdog and software self-diagnosis functions, which can monitor the operating status of the CPU, memory, and communication interfaces. Fault information is actively reported through LED indicators and communication protocols, with a mean time between failures (MTBF) of ≥250,000 hours.
Enhanced Data Management and Security: Equipped with 100ms-level data recording function, which can store key process parameters (such as pressure and temperature trends) for up to 30 days, and supports remote data export via Ethernet. It integrates the Secure Boot function to prevent unauthorized firmware modification, complying with the IEC 62443 industrial information security standard.
Convenient Debugging and Maintenance: Supports online programming and parameter modification. Engineers can remotely access the module via Ethernet for diagnosis without going to the site. The hot-swappable design, combined with the module's own status indicators (power, operation, fault, communication), enables maintenance personnel to complete module replacement within 3 minutes, significantly reducing downtime.

Application Fields

Mid-range Process Control Units: In medium-sized devices such as fine chemical batch reactors and pharmaceutical fermenters, it serves as the main controller to coordinate the control of parameters such as temperature, pressure, and stirring speed, supporting batch management and recipe calling. For example, in antibiotic production, it can accurately execute multi-stage process curves of "heating - heat preservation - cooling" with a control accuracy of ±0.5℃.
Manufacturing Production Line Control: Suitable for scenarios such as electronic component placement lines and automobile parts assembly lines. It connects sensors (such as position photoelectric sensors, pressure sensors) and actuators (such as robotic arms, servo motors) to realize logical linkage between processes. In PCB board welding lines, it can synchronously control the temperature of the soldering machine and the stepping of the conveyor belt, increasing the qualified rate of solder joints to 99.9%.
Municipal Public Facilities: Used in aeration tank control of urban sewage treatment plants and dosing systems of waterworks. It collects signals such as dissolved oxygen and pH value, and adjusts the frequency of aeration fans and the flow of metering pumps through PID algorithms, ensuring effluent compliance while reducing energy consumption by about 15%.
Logistics and Warehousing Automation: In stacker cranes and conveyor systems of smart warehouses, it acts as the control core to handle the coordinated actions of position coding, lifting motors, and translation mechanisms. It supports communication with WMS (Warehouse Management System) to realize automatic cargo inbound and outbound, with a response speed of ≤50ms.
Renewable Energy Equipment: In small and medium-sized wind turbines (below 1.5MW) and distributed photovoltaic inverters, it monitors parameters such as wind speed, light intensity, and grid voltage, controls variable pitch and inverter grid-connection strategies, ensuring efficient operation of equipment and compliance with grid specifications.
