ABB CI861K01 3BSE058590R1 Communication Interface Module

ABB CI861K01 3BSE058590R1 Communication Interface Module photo-1

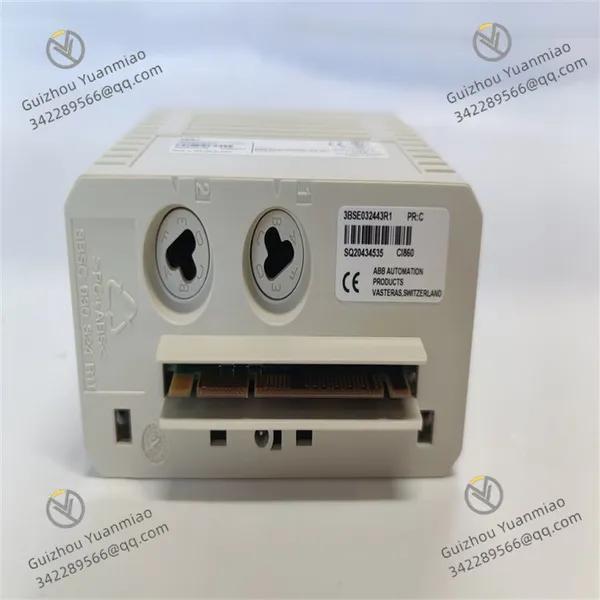

ABB CI861K01 3BSE058590R1 Communication Interface Module photo-2

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Other, Global universal model

Condition:

Other, Global universal model

Task:

Other, Global universal model

Contact Supplier Request Quote Chat Now

Guizhou Yuanmiao Automation Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Other, Global universal model

Condition Other, Global universal model

Task Other, Global universal model

Mathematical Model Other, Global universal model

Signal Other, Global universal model

Customized Non-Customized

Structure Other, Global universal model

Operating Temperature -45℃ ~ +80℃

Power Supply 24V DC (±25%)

Dimensions 220mm×140mm×90mm

1. Overview

ABB CI861K01 3BSE058590R1 is a VIP communication interface module belonging to the ABB AC 800M series. It plays a key role in automated control systems, primarily responsible for enabling efficient communication and data interaction between different devices within the system. Acting as a bridge connecting the AC 800M system and the Process Control Environment (PEC), it can integrate various sensors, actuators, and other intelligent devices into the overall control system, ensuring accurate and timely transmission of information between all links, thereby guaranteeing the stable operation of automated production processes. With its compact design and high reliability, this module is suitable for various industrial environments and provides strong support for building complex and reliable automated control systems.

2. Functional Features

Rich Interfaces and Protocol Support: Equipped with diverse communication interface options such as Ethernet and serial ports. It supports common industrial communication protocols like Modbus and Profibus, enabling the CI861K01 to seamlessly connect with devices of different brands and types. Whether it is traditional industrial instruments or advanced intelligent control systems, data interaction can be achieved through this module, greatly improving the convenience and compatibility of system integration.
Real-time Data Transmission and Monitoring: Possesses excellent real-time data transmission capability, which can quickly respond to the instructions of the control system and ensure timely data transmission between devices. Meanwhile, it also has configuration and diagnostic functions. Operators can configure parameters of connected devices through this module to adapt to different working scenarios. During system operation, the module can monitor device status in real-time. Once an abnormality is detected, it can quickly diagnose faults and feed back to the control system, helping to take timely measures, reduce downtime, and improve production efficiency.
High Reliability Design: Adopts advanced circuit design and high-quality electronic components, with good anti-interference ability, and can work stably in complex electromagnetic environments. The industrial-grade manufacturing standards enable it to adapt to a wide range of temperature and humidity changes, meeting the application needs of various harsh industrial environments and providing a solid guarantee for the long-term and reliable operation of automated control systems.

3. Technical Parameters

Communication Interfaces: Offers multiple communication interface options. The Ethernet interface complies with the IEEE802.3 standard and supports high-speed data transmission; the serial port can meet the communication needs of some devices that have low requirements for communication rate but need simple connection.
Supported Protocols: Fully supports common industrial communication protocols such as Modbus RTU, Modbus TCP, and Profibus DP. Each protocol has corresponding configuration parameters, which can be flexibly set according to actual application scenarios to ensure stable communication and compatibility with different devices.
Operating Voltage: The operating voltage range depends on specific specifications, generally within the common industrial DC voltage range, such as 24V DC (±10%). A stable voltage input ensures the reliable operation of the module, and it also has overvoltage and undervoltage protection functions to prevent damage to the module due to voltage abnormalities.
Operating Temperature: The operating temperature range is also based on specific product specifications, usually designed to adapt to industrial environment temperatures, such as -20℃ ~ +60℃. Within this temperature range, the module can maintain good performance, ensuring normal operation in different seasons and different industrial places.
Dimensions and Weight: The net depth/length of the product is 185mm, the net height is 127.5mm, and the net width is 59mm. The net weight of the product is approximately 0.621kg. The compact size design facilitates installation and arrangement in control cabinets and other equipment, reducing the weight burden of the overall system.

4. Working Principle

The CI861K01 establishes a physical connection with external devices through its communication interface. When external devices generate data, for example, sensors detect changes in physical quantities such as temperature and pressure, convert them into electrical signals, and after digital processing, package the data into data packets of a specific format according to a preset communication protocol (such as Modbus protocol) and send them to the CI861K01 module. After receiving the data packet, the module first parses the protocol, checks the integrity and correctness of the data. If the data is correct, it converts it into an internal data format recognizable by the control system and transmits it to the core processor of the AC 800M control system through the internal bus.

Conversely, when the control system needs to control external devices, the core processor generates control instructions, which are also encapsulated in a specific communication protocol format and sent to the CI861K01. The CI861K01 module then sends the instruction data packet to the corresponding external devices such as actuators, and the actuators perform corresponding actions according to the instructions, such as starting and stopping the motor or adjusting the opening of the valve. Through this two-way data transmission and processing mechanism, the CI861K01 realizes information interaction and collaborative work between the control system and external devices.

5. Application Fields

Industrial Automated Production Lines: In industrial automated production lines such as automobile manufacturing and electronic equipment manufacturing, the CI861K01 can connect various automated equipment, such as robots, automated assembly machines, and testing instruments. Through real-time data transmission, it realizes collaborative work between devices, ensuring efficient and accurate operation of the production process. For example, in the automobile assembly line, it can timely feed back the data of detection sensors to the control system, so as to adjust the assembly process in real-time and improve product quality and production efficiency.
Power Systems: Used in monitoring and control systems of power facilities such as power plants and substations. It connects various power monitoring equipment, such as voltage transformers, current transformers, and relay protection devices, transmits power operation data to the monitoring center, and realizes real-time monitoring and fault diagnosis of the power system. When an abnormal situation occurs, control instructions can be quickly issued to relevant equipment to ensure the stable operation of the power system.
Chemical Industry: In the chemical production process, there are many complex process flows and dangerous environments. The CI861K01 can connect devices such as temperature sensors, pressure sensors, flow controllers, and various valves to realize precise control and real-time monitoring of the chemical production process. It ensures the safety and stability of the production process in harsh environments such as high temperature, high pressure, and strong corrosion, effectively avoiding accidents.
Oil and Gas Field: Applied in links such as oil exploitation, oil refining, and natural gas transportation. It connects wellhead monitoring equipment, pipeline pressure sensors, pump control systems, etc., to realize remote monitoring and management of oil and gas production and transportation processes. It timely grasps the operation status of the production site, warns and handles possible problems such as leaks and pressure abnormalities, and ensures the smooth progress of oil and gas production.
