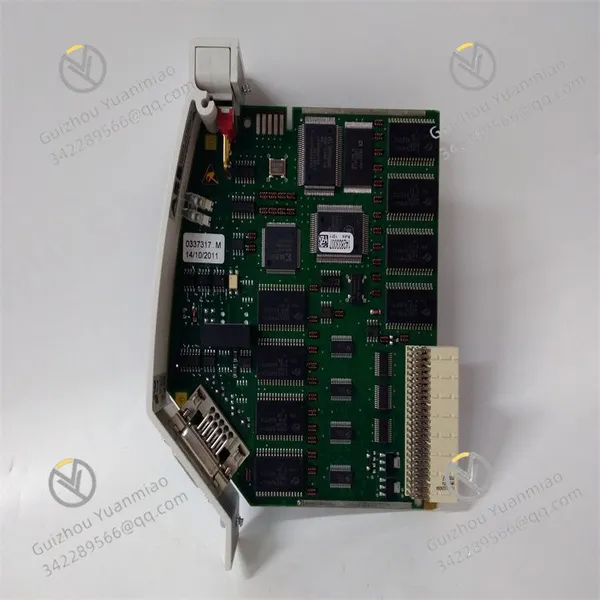

ABB FI810F 3BDH000030R1 Fieldbus Module

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Other, Global universal model

Condition:

Other, Global universal model

Task:

Other, Global universal model

Contact Supplier Request Quote Chat Now

Guizhou Yuanmiao Automation Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Other, Global universal model

Condition Other, Global universal model

Task Other, Global universal model

Mathematical Model Other, Global universal model

Signal Other, Global universal model

Customized Non-Customized

Structure Other, Global universal model

Operating Temperature -20 °C to +70 °C

Power Supply 24V DC

Dimensions 28x155x125mm

I. Overview
ABB FI810F 3BDH000030R1 is a fieldbus module specially designed for industrial automation scenarios, playing a key role as a data interaction hub in the entire industrial automation control system. It is mainly used to realize stable and efficient communication connections between industrial equipment and control systems, and can smoothly connect various on-site equipment such as sensors and actuators to ABB's automation control system, thereby ensuring the timeliness and accuracy of data transmission in industrial production processes.

In ABB's rich industrial automation product line, FI810F has an undeniable position. It can perfectly adapt to control systems such as ABB's AC 800F with excellent compatibility. This good adaptability enables it to easily integrate into small industrial automation production lines to provide communication support for simple production processes; it can also play a key role in large-scale and complex comprehensive industrial production networks, helping to build a comprehensive and intelligent automation control system. Its design follows strict industrial standards and adopts advanced manufacturing processes, ensuring stable operation in various complex and harsh industrial environments, and strongly guaranteeing the continuity and stability of industrial production.

II. Technical Parameters
Electrical Parameters:
Power Supply Requirements: Supports multiple forms of power input. Common ones include AC 100-240V, which meets the AC access needs of different industrial sites; it also supports DC 24V input, providing convenience for some scenarios that rely on DC power. The stable rated value of the input power supply can ensure the continuous supply of stable energy to the precision circuits and chips inside the module under various working conditions, maintaining the normal operation of the module.
Power Consumption: The power consumption of the entire module is low, about 2.5W. The low-power feature not only helps reduce the overall energy consumption of the industrial system, conforming to the current trend of energy conservation and emission reduction; but also reduces the heating problem during equipment operation, improves the working stability and reliability of the module, extends its service life, and reduces the later maintenance costs of enterprises.

Communication Parameters:
Interface Type: Adopts a standard 10BaseT Ethernet interface in the form of RJ45. With mature technology and wide application, this interface realizes data transmission through twisted-pair cables with a transmission rate of 10Mbps. While meeting the data transmission rate requirements of most industrial scenarios, it has high cost performance and is easy to connect and network with other devices with Ethernet interfaces, greatly reducing the difficulty of system integration.
Protocol Support: Supports many mainstream industrial communication protocols such as Modbus/TCP, Profinet, EtherNet/IP, etc. The Modbus/TCP protocol is highly open and versatile, allowing FI810F to communicate with industrial equipment and control systems of different brands and models without obstacles. In industrial workshops with a variety of equipment brands, relying on the support of these protocols, FI810F can coordinate various devices to realize the free and efficient flow of data in the automation network.
Connection Capacity: It has a strong connection capacity and can support connections with up to 32 devices at the same time. This high scalability enables enterprises to flexibly add various devices according to actual production needs when building or upgrading industrial automation systems, without frequent replacement of communication modules, which greatly improves the scalability and flexibility of the system and reserves sufficient space for enterprises' future business expansion.
Baud Rate Setting: Supports configurable baud rate, allowing users to flexibly optimize the baud rate according to the actual communication environment and data transmission requirements. For example, in scenarios with a large amount of data and high real-time requirements, the baud rate can be appropriately increased to improve transmission speed; in environments with more interference, the baud rate can be reduced to ensure the stability of data transmission and the balance between communication efficiency and quality.

Environmental Parameters:
Operating Temperature: The suitable operating temperature range is -20°C to +70°C. Such a wide temperature range allows the module to operate normally in industrial environments with various temperature conditions, whether it is industrial places in cold northern winters, workshops in hot southern summers, or high-temperature operation scenarios such as steel smelting and glass manufacturing, it can play a stable role, adapting to the temperature requirements of different regions and industrial scenarios.
Storage Temperature: The storage temperature range is wider, from -40°C to +85°C. This brings great convenience to the equipment storage link of enterprises. Whether it is long-term storage for backup or equipment turnover and storage in different seasons and environments, there is no need to worry too much about temperature damage to the module, effectively reducing the difficulty of equipment storage management.
Relative Humidity: It can work normally in an environment with a relative humidity of 5% to 95% (non-condensing). The strong humidity adaptability greatly reduces equipment failures caused by humidity problems, making it suitable for industrial fields with large humidity changes such as chemical industry, food processing, and textiles, ensuring reliable operation under complex humidity conditions.

Mechanical Parameters:
Dimension Specifications: The external dimensions of the module are (WxHxD) 28x155x125mm. The compact design enables it to be easily installed even when the space in the control cabinet is limited, making rational use of space resources without having a significant impact on the internal layout of the system, and facilitating system integration and wiring work.
Weight: The weight including the base is about 0.15kg, which is light and convenient for installation and maintenance personnel to operate. Whether it is putting on the shelf in the initial installation stage or replacing in the later maintenance, it can be completed efficiently, reducing manual labor intensity and improving work efficiency.

III. Functional Features
Stable Communication: Using advanced circuit design and signal processing technology, it has excellent anti-interference ability, which can effectively resist common interference sources in industrial environments such as electrical noise and electromagnetic interference, ensuring the accuracy and integrity of the entire data transmission process. Even in complex and harsh industrial electromagnetic environments, it can ensure stable and reliable data communication, significantly reducing data packet loss, wrong transmission and other problems, and laying a solid communication foundation for industrial automation production.
Multi-Device Connection: It can support connections with up to 32 devices at the same time, greatly enhancing the system expansion capability. When building a large-scale industrial automation system, users can conveniently add various devices such as sensors, actuators, and controllers according to actual production needs, without worrying about the limit on the number of connections of the communication module, flexibly building a complex automation control network to meet the diversified and personalized needs of different industrial scenarios.
Protocol Adaptation: It supports multiple mainstream industrial communication protocols such as Modbus/TCP, which enables it to seamlessly integrate with industrial equipment and control systems of different brands and types. In practical applications, enterprises often face the problem of many equipment brands and inconsistent communication protocols. The multi-protocol adaptation function of FI810F can effectively break down communication barriers between devices, make full use of existing equipment resources, avoid large-scale equipment replacement due to incompatible communication protocols, and save a lot of upgrade and transformation costs for enterprises.
Diagnostic Function: Equipped with diagnostic LED indicators, which intuitively present the working status of the module through lights of different colors and flashing frequencies, including information such as communication connection status, data transmission status, and equipment failure. This provides great convenience for maintenance personnel in troubleshooting equipment failures, enabling them to quickly locate problems, shorten equipment downtime, improve production efficiency, and reduce the impact of equipment failures on production.
Convenient Installation: Adopts DIN rail mounting method, which is widely used in the industrial field and has the advantages of simple, fast, and firm installation. Maintenance personnel only need to directly clamp the module on the DIN rail to complete the installation, without complex tools and additional fixing measures, which greatly improves the installation efficiency and is also convenient for later disassembly, replacement, and maintenance of the module, reducing the difficulty and cost of equipment maintenance.
