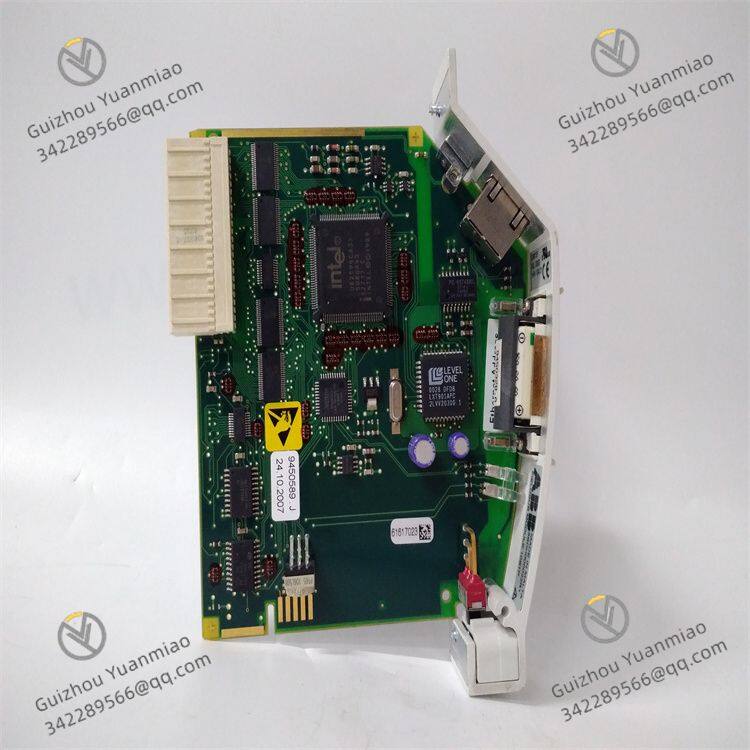

ABB EI801F 3BDH000015R1 Fieldbus Module

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Payment TermsT/T PayPal Western Union

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Material	Other, Global universal model	Condition	Other, Global universal model
Task	Other, Global universal model	Mathematical Model	Other, Global universal model
Signal	Other, Global universal model	Customized	Non-Customized
Structure	Other, Global universal model	Operating Temperature	-40°C to +70°C
Power Supply	24V DC	Dimensions	230mm x 175mm x 80mm

Product Description

Overview
ABB EI801F 3BDH000015R1 is an industrial-grade analog input module, which is an important part of ABB Advant OCS, 800xA and other control systems. It is mainly used to collect analog signals on site (such as continuously changing physical quantities like temperature, pressure, flow rate, liquid level, etc.), convert them into digital signals and transmit them to the control system, so as to realize real-time monitoring and data feedback of industrial processes. It is a key interface device connecting on-site sensors and the control layer in industrial automation.

Technical Parameters

Power Supply Voltage: Usually 24V DC (with redundant power supply support to improve system reliability).
Signal Types: Supports multiple analog input signals, including:

Current signals: 4-20mA (the most commonly used, with strong anti-interference performance);
Voltage signals: 0-10V, ±5V, etc.;
Thermocouple signals (such as type K, type J, etc., used for temperature measurement);
Thermal resistance signals (such as Pt100, Cu50, etc., used for high-precision temperature collection).

Number of Channels: Generally 8 channels, with isolation between channels to reduce signal interference.
Resolution: 16-bit (ensuring high precision of signal collection to meet industrial-grade measurement requirements).
Sampling Rate: The typical sampling rate of a single channel can reach more than 10Hz, supporting quick response to dynamic processes.
Operating Temperature Range: -40°C to +70°C (adapting to harsh temperature environments in industrial sites).
Protection Grade: IP20 (suitable for installation in control cabinets, avoiding direct contact with dust and liquid).
Installation Method: DIN rail mounting (complying with industrial standards, facilitating quick integration into control system cabinets).
Communication Interface: Communicates with ABB control systems (such as 800xA) through internal buses (such as Profibus DP or ABB dedicated buses) to realize data upload.

Functional Features

High-Precision Signal Collection
With 16-bit resolution and anti-interference design, it can accurately capture tiny analog changes (such as pressure fluctuations, temperature drifts), ensuring the accuracy of process monitoring. It is suitable for industrial scenarios with high precision requirements (such as temperature control of chemical reaction tanks).
Channel Isolation and Anti-Interference
Electrical isolation design is adopted between input channels and between channels and the system, which can effectively suppress electromagnetic interference in industrial sites (such as interference from motors and frequency converters) and ensure the stability of signal transmission.
Diagnostic and Self-Testing Functions
It has real-time fault diagnosis capability, which can monitor problems such as channel disconnection, signal over-range, and power supply abnormality, and feed back fault information to the control system, facilitating quick fault location and reducing downtime.
Compatibility and Integratability
Specially designed for ABB 800xA and other control systems, it can be seamlessly integrated into existing systems and supports standardized configuration tools (such as Control Builder M) to simplify parameter setting and debugging processes.
Wide Temperature and Reliability Design
It meets industrial-grade environmental adaptability requirements, can operate stably under harsh conditions such as high and low temperatures and vibration, has a long Mean Time Between Failures (MTBF), and is suitable for industrial scenarios requiring long-term continuous operation.

Application Fields
As an analog input module, ABB EI801F is widely used in industrial automation scenarios that need to collect continuous physical quantity signals. Typical fields include:

Petrochemical Industry: Collecting signals such as reactor temperature, pipeline pressure, and flow rate to provide data support for production process control;
Power Industry: Used for monitoring parameters such as power plant boiler temperature, steam pressure, and generator set oil pressure;
Metallurgical Industry: Collecting signals such as steelmaking furnace temperature and rolling mill pressure to ensure the stability of the smelting process;
Water Treatment: Monitoring parameters such as pool liquid level, water turbidity, and pipeline flow rate to realize automatic control of water treatment;
Manufacturing Industry: Collecting signals such as equipment operating temperature and hydraulic system pressure in production lines for equipment status monitoring and early warning.
