5X00499G01 EMERSON High-performance Analog Input Module

Guizhou Yuanmiao Automation Equipment Co., Ltd.
1Yr
5X00499G01 EMERSON High-performance Analog Input Module thumbnail-1
5X00499G01 EMERSON High-performance Analog Input Module thumbnail-2
5X00499G01 EMERSON High-performance Analog Input Module thumbnail-3
5X00499G01 EMERSON High-performance Analog Input Module thumbnail-4
5X00499G01 EMERSON High-performance Analog Input Module thumbnail-5
5X00499G01 EMERSON High-performance Analog Input Module photo-1
5X00499G01 EMERSON High-performance Analog Input Module photo-2

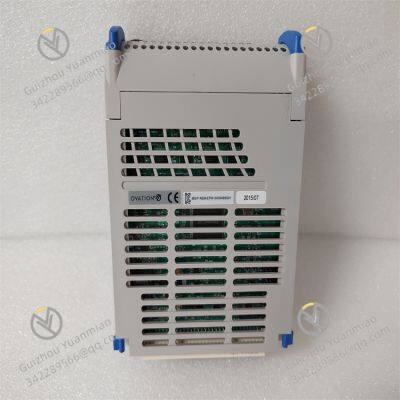

5X00499G01 EMERSON High-performance Analog Input Module photo-3

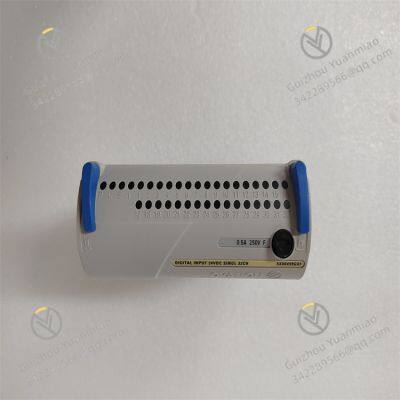

5X00499G01 EMERSON High-performance Analog Input Module photo-4
5X00499G01 EMERSON High-performance Analog Input Module photo-5
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, Global universal model
Condition:
Other, Global universal model
Task:
Other, Global universal model
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Material Other, Global universal model
Condition Other, Global universal model
Task Other, Global universal model
Mathematical Model Other, Global universal model
Signal Other, Global universal model
Customized Non-Customized
Structure Other, Global universal model
Operating temperature -40℃~+85℃
Humidity 5%~95% (non-condensing)




Many products are not on the shelves yet, please contact us for more models.





5X00499G01

The 5X00499G01 is a high-performance analog input module designed for Emerson's Ovation Distributed Control System (DCS), primarily used to collect and process analog signals from field sensors (such as temperature, pressure, and flow transmitters) and transmit them to the DCS for monitoring and control. Below is a detailed guide based on technical specifications and industry applications:
Technical Specifications

  • Input Type: Universal analog inputs (configurable for 4–20mA, 0–20mA, 0–10V DC, ±10V DC, RTD, thermocouple)

  • Channel Quantity: 16 isolated channels

  • Accuracy:

    • Current/Voltage: ±0.05% of full scale

    • RTD: ±0.1°C (for Pt100, -200°C to +850°C)

    • Thermocouple: ±0.2°C (for Type K, 0°C to +1372°C)

  • Resolution: 24 bits

  • Sampling Rate: 100 samples/second per channel (configurable)

  • Isolation: Channel-to-channel (1000Vrms) and channel-to-chassis (2000Vrms)

  • Power Supply: 24V DC (redundant inputs supported)

  • Power Consumption: ~15W (module)

  • Operating Temperature: -40°C to +70°C

  • Storage Temperature: -40°C to +85°C

  • Humidity: 5%–95% non-condensing

  • Protection: Overvoltage (up to 30V DC), reverse polarity, and surge protection

  • Physical Dimensions: 140mm (W) × 125mm (H) × 75mm (D)

  • Weight: ~0.8kg

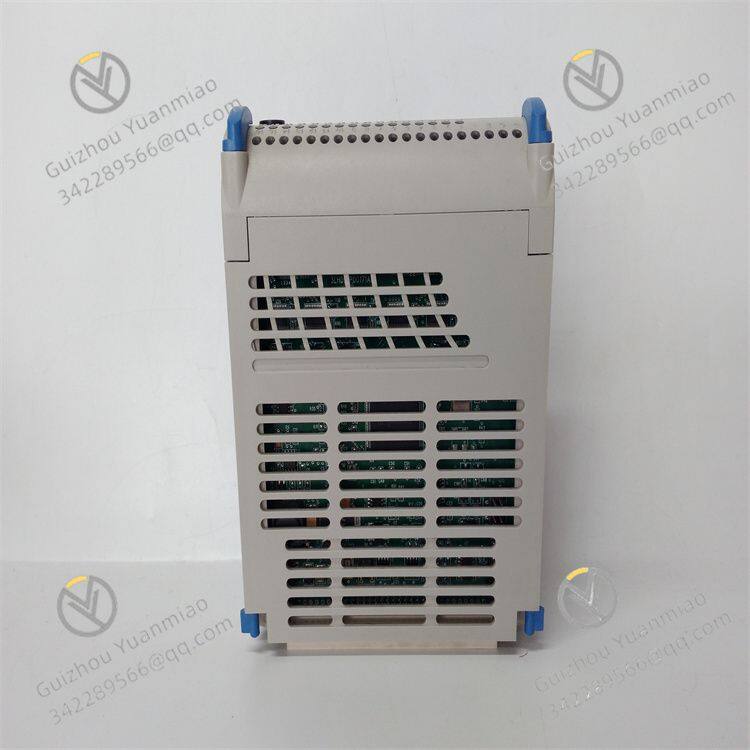

5X00499G01 (1)


Key Features
  1. Universal Input Compatibility
    Each channel can be independently configured for current, voltage, RTD (Pt100, Pt1000), or thermocouple (Type J, K, T, E, etc.) inputs, eliminating the need for multiple specialized modules.
  2. High Precision & Stability
    24-bit resolution and low drift (±0.01%/°C) ensure accurate measurement of critical process variables, even in harsh industrial environments.
  3. Advanced Signal Conditioning
    Built-in filtering (configurable 1–100Hz) reduces noise from motors, pumps, or high-voltage equipment. Supports cold junction compensation for thermocouples.
  4. Enhanced Isolation & Protection
    High isolation ratings prevent ground loops and electrical interference. Overvoltage and reverse polarity protection safeguard the module from wiring errors.
  5. Redundancy & Hot-Swap
    Supports redundant power inputs and hot-swap replacement, minimizing downtime in mission-critical systems (e.g., power plants, refineries).
  6. Diagnostic Capabilities
    Real-time self-diagnostics (open circuit, short circuit, overrange) with status reporting to the DCS, enabling proactive maintenance.

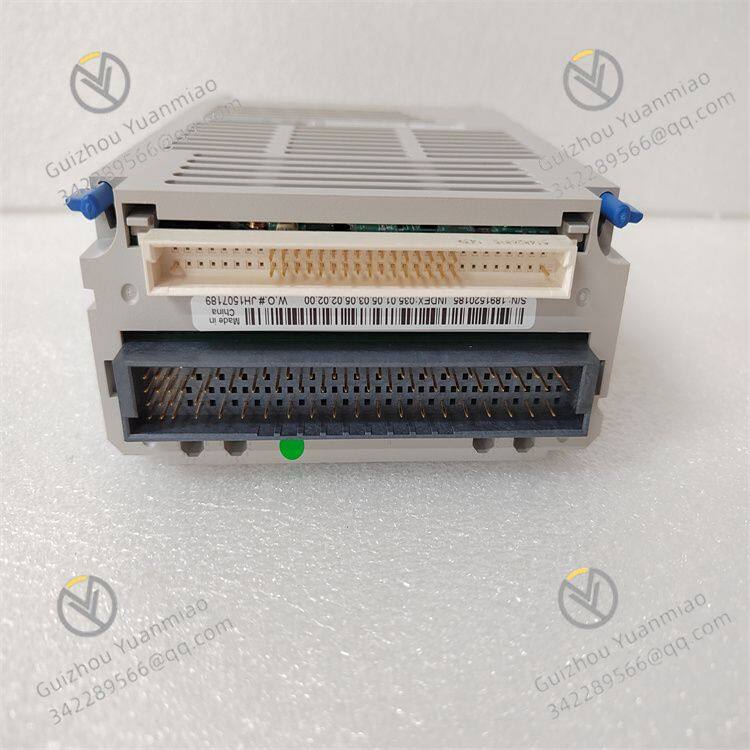

5X00499G01 (4)
