5X00501G01 EMERSON Safety-rated Digital Output Module

Guizhou Yuanmiao Automation Equipment Co., Ltd.
1Yr
5X00501G01 EMERSON Safety-rated Digital Output Module thumbnail-1
5X00501G01 EMERSON Safety-rated Digital Output Module thumbnail-2
5X00501G01 EMERSON Safety-rated Digital Output Module thumbnail-3
5X00501G01 EMERSON Safety-rated Digital Output Module thumbnail-4
5X00501G01 EMERSON Safety-rated Digital Output Module photo-1
5X00501G01 EMERSON Safety-rated Digital Output Module photo-2

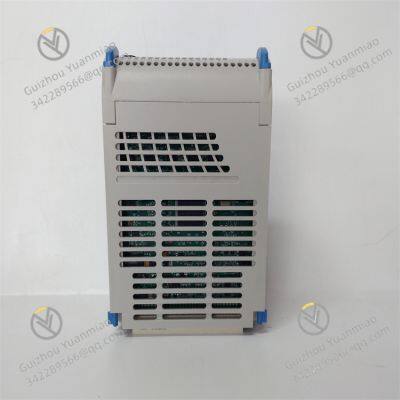

5X00501G01 EMERSON Safety-rated Digital Output Module photo-3
5X00501G01 EMERSON Safety-rated Digital Output Module photo-4
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, Global universal model
Condition:
Other, Global universal model
Task:
Other, Global universal model
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Material Other, Global universal model
Condition Other, Global universal model
Task Other, Global universal model
Mathematical Model Other, Global universal model
Signal Other, Global universal model
Customized Non-Customized
Structure Other, Global universal model
Operating temperature -40℃~+85℃
Humidity 5%~95% (non-condensing)




Many products are not on the shelves yet, please contact us for more models.





5X00500G01
 5X00500G01 is a safety-rated digital output module designed for Emerson's Ovation distributed control system (DCS), specifically engineered to meet functional safety standards for critical control and emergency shutdown applications. Below is a detailed overview compiled from available information:
Technical Specifications

  • Output Type: Safety-rated relay outputs (Form A, SPST - Single Pole Single Throw)

  • Channel Quantity: 8 independent safety channels

  • Safety Integrity Level (SIL): SIL 3 (per IEC 61508)

  • Contact Rating:

    • 250V AC / 30V DC (maximum voltage)

    • 5A resistive load, 2A inductive load (per channel)

  • Response Time: ≤5ms (from signal input to relay action)

  • Isolation: Channel-to-channel (2500Vrms) and channel-to-chassis (5000Vrms)

  • Mechanical Life: ≥10 million operations (no load)

  • Electrical Life: ≥1 million operations (full load)

  • Power Supply: 24V DC (redundant inputs, 19.2–28.8V)

  • Power Consumption: ~12W (module) + relay load power

  • Operating Temperature: -40°C to +70°C

  • Storage Temperature: -40°C to +85°C

  • Humidity: 5%–95% non-condensing

  • Protection Class: IP20 (front panel)

  • Physical Dimensions: 150mm (W) × 130mm (H) × 80mm (D)

  • Weight: ~1.0kg



5X00501G01 (1)


Functional Overview
The module converts safety-critical digital signals from the Ovation DCS into relay actions, enabling:


  • Activation of emergency shutdown systems (e.g., closing isolation valves during overpressure events).

  • Control of safety interlocks (e.g., stopping a pump if a high-temperature alarm is triggered).

  • Monitoring of safety device status (e.g., valve position feedback) for diagnostic reporting.

  • Synchronization with SIS logic solvers to enforce safety instrumented functions (SIFs).

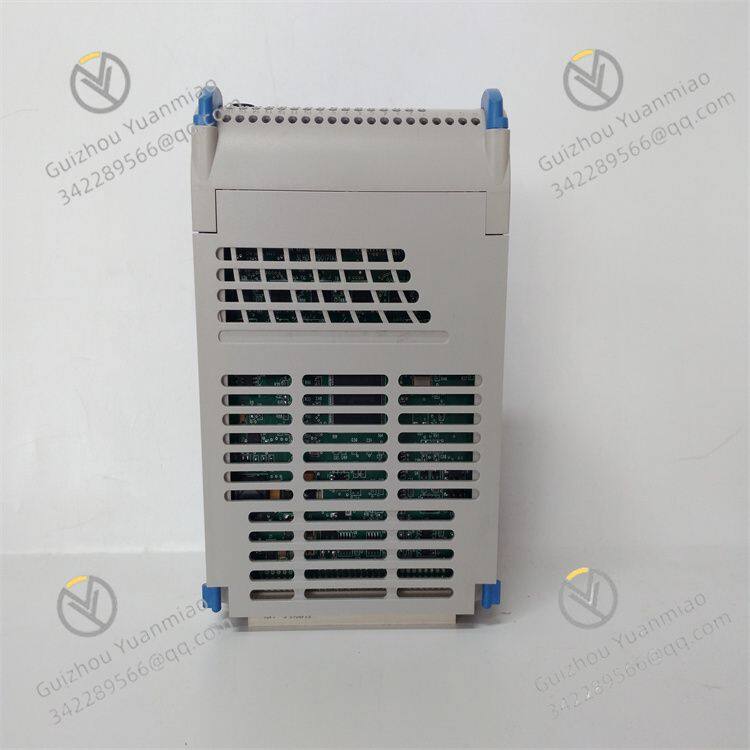

5X00501G01 (2)
