1C31227G02 EMERSON High-speed Digital Input Module

1C31227G02 EMERSON High-speed Digital Input Module thumbnail-1
1C31227G02 EMERSON High-speed Digital Input Module thumbnail-2
1C31227G02 EMERSON High-speed Digital Input Module thumbnail-3
1C31227G02 EMERSON High-speed Digital Input Module photo-1
1C31227G02 EMERSON High-speed Digital Input Module photo-2

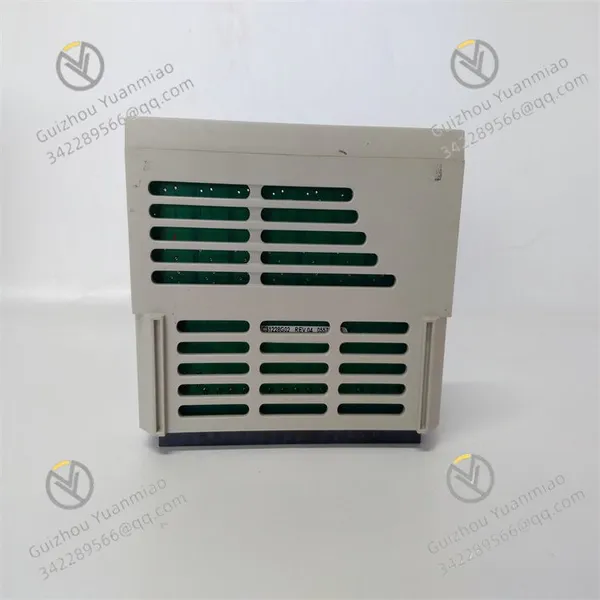

1C31227G02 EMERSON High-speed Digital Input Module photo-3
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, Global universal model
Condition:
Other, Global universal model
Task:
Other, Global universal model
Contact Supplier Request Quote Chat Now
Guizhou Yuanmiao Automation Equipment Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Material Other, Global universal model
Condition Other, Global universal model
Task Other, Global universal model
Mathematical Model Other, Global universal model
Signal Other, Global universal model
Customized Non-Customized
Structure Other, Global universal model
Operating temperature -40℃~+85℃
Humidity 5%~95% (non-condensing)




Many products are not on the shelves yet, please contact us for more models.





1C31227G02 EMERSON User Manual

 1C31227G02 is a high-speed digital input module in Emerson's Ovation distributed control system (DCS), designed for real-time monitoring and control of industrial automation signals. The following is detailed information:
Technical Specifications

  • Input Type: Digital (dry contact/TTL/CMOS compatible)

  • Channel Quantity: 16 channels (supporting group configuration)

  • Input Voltage Range: 24V DC (19.2–28.8V DC)

  • Logic Threshold:

    • High level: ≥15V DC

    • Low level: ≤5V DC

  • Response Time: ≤1 ms (typical value, suitable for high-speed signal capture)

  • Isolation Performance: Channel-to-channel and channel-to-chassis isolation (500Vrms)

  • Power Supply: 24V DC (supplied by the Ovation backplane)

  • Power Consumption: Approximately 5W

  • Operating Temperature: -40°C to +70°C

  • Storage Temperature: -40°C to +85°C

  • Humidity Environment: 5%–95% (non-condensing)

  • Protection Level: IP20 (front panel)

  • Physical Dimensions: 133mm (width) × 127mm (height) × 76mm (depth)

  • Weight: Approximately 0.6kg

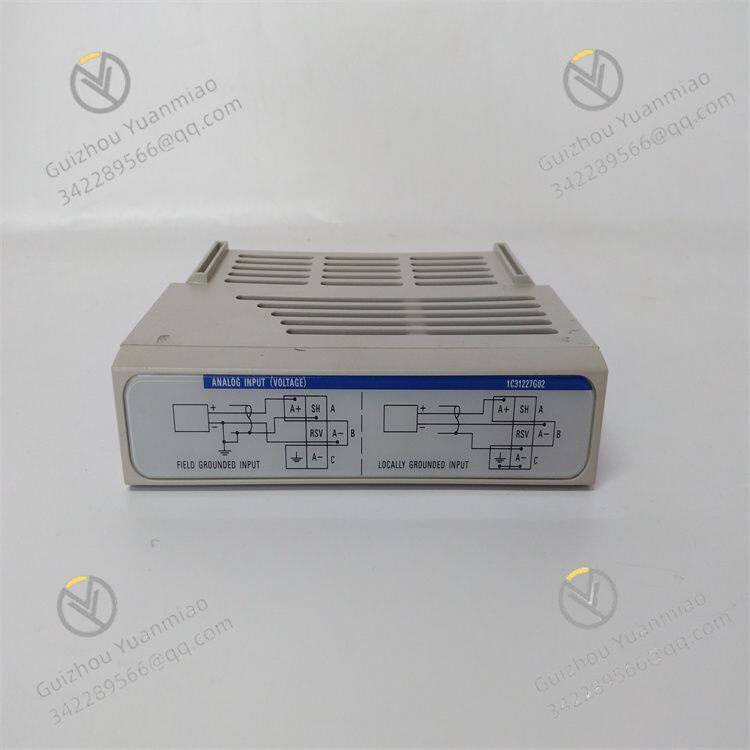

1C31227G02 (2)


Product Features

  1. High-Speed Signal Processing

  • Capable of capturing millisecond-level signal state changes, suitable for applications requiring precise timing (e.g., pulse counting, event sequence recording).

  • Flexible Group Configuration

    • 16 channels can be divided into 4 independent groups (4 channels/group), supporting customized input logic settings for different processes.

  • Enhanced Reliability Design

    • Redundant power supply support and built-in self-diagnostic functions (continuously checking for open circuits, short circuits, and voltage anomalies).

    • Anti-electromagnetic interference (EMI) and surge protection to adapt to harsh industrial environments.

  • Hot-Swap Functionality

    • Modules can be replaced without powering off the system, reducing maintenance downtime and improving operational efficiency.

  • Real-Time Status Monitoring

    • Front-panel LED indicators for power, channel status, and fault alarms, facilitating quick troubleshooting.

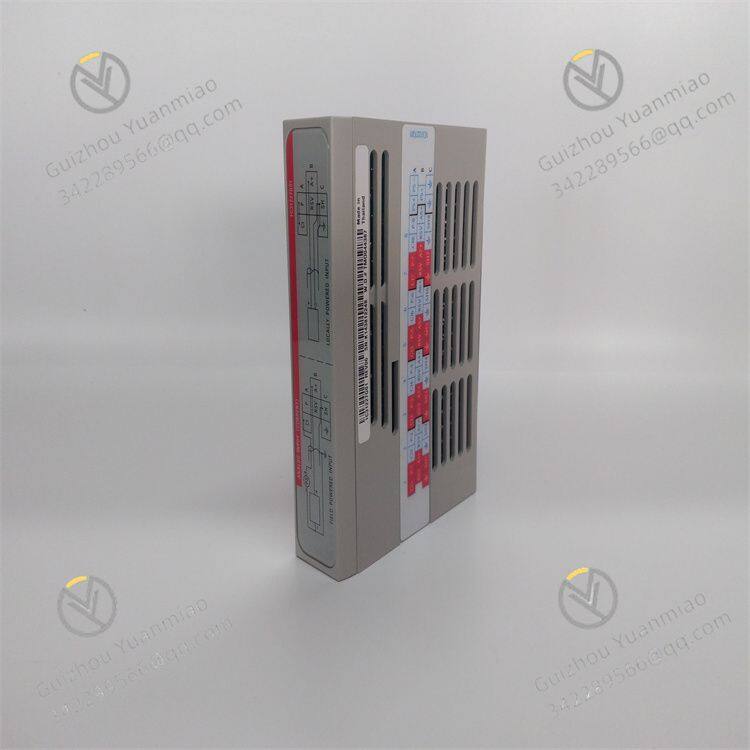

    1C31227G01 (3)






    Related products:


    EMERSON KJ2003X1-BA2
    EMERSON 1C31224G01
    EMERSON 1C31227G01
    EMERSON 1X00416H01
    EMERSON 1C31129G03
    EMERSON SE3008
    EMERSON 5X00605G01


    Product Tags: 1C31227G02 , EMERSON , high-speed digital input module
