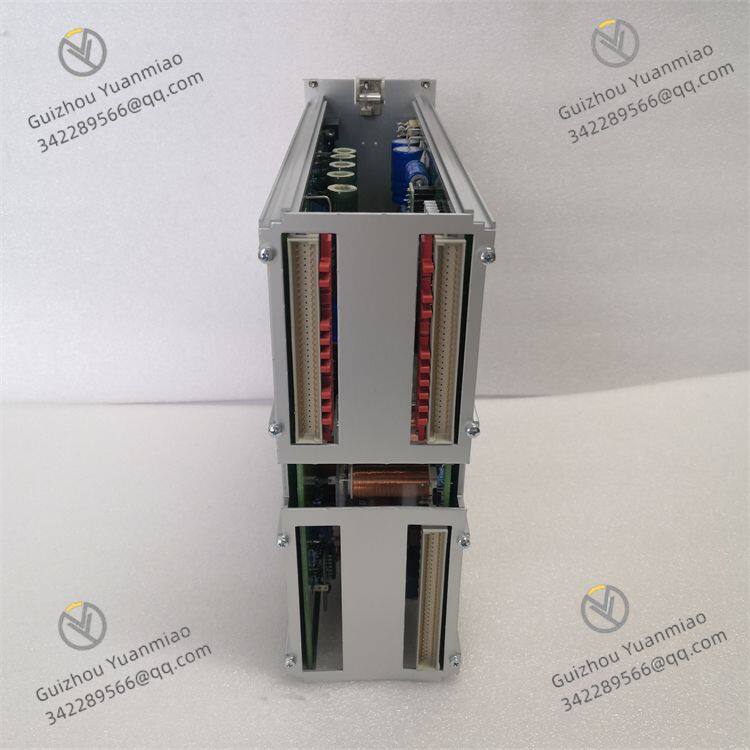

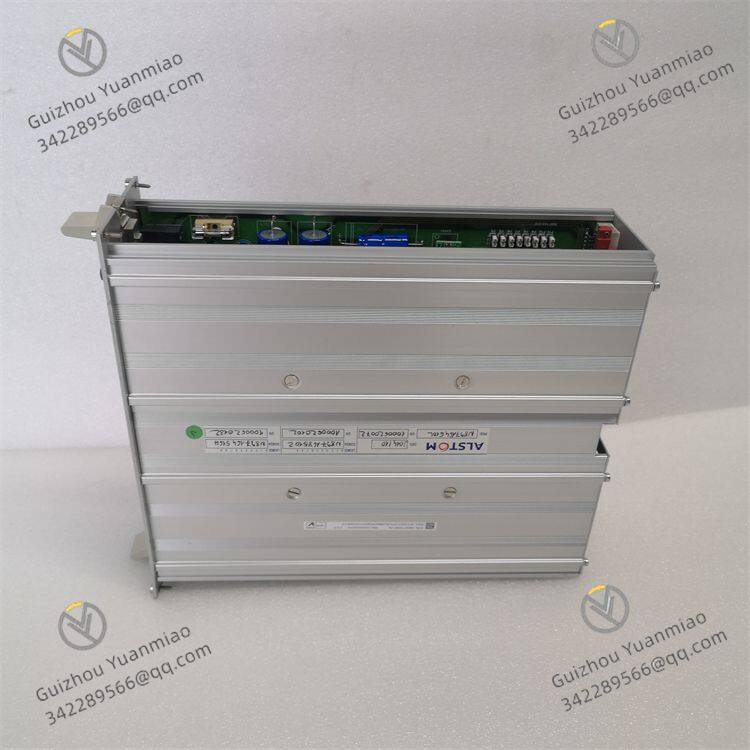

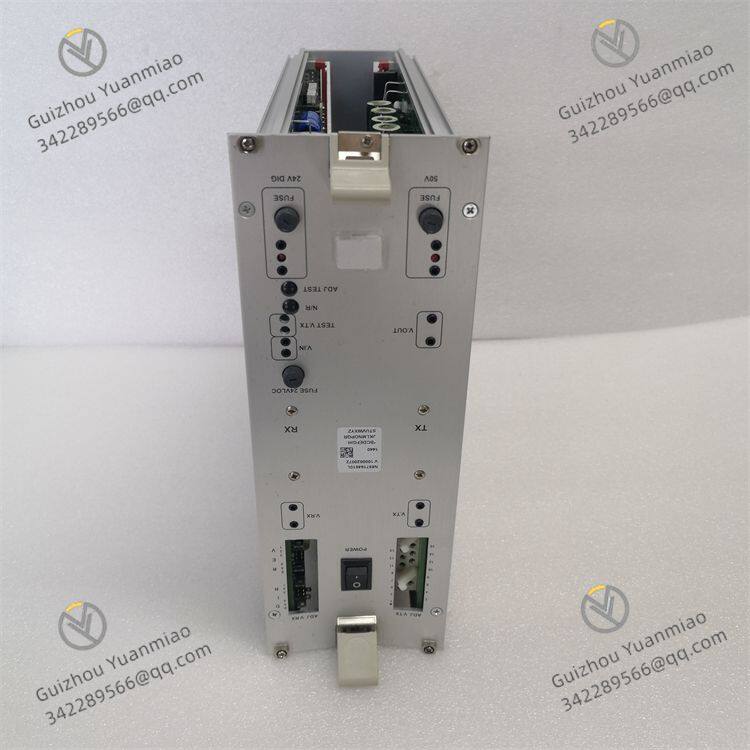

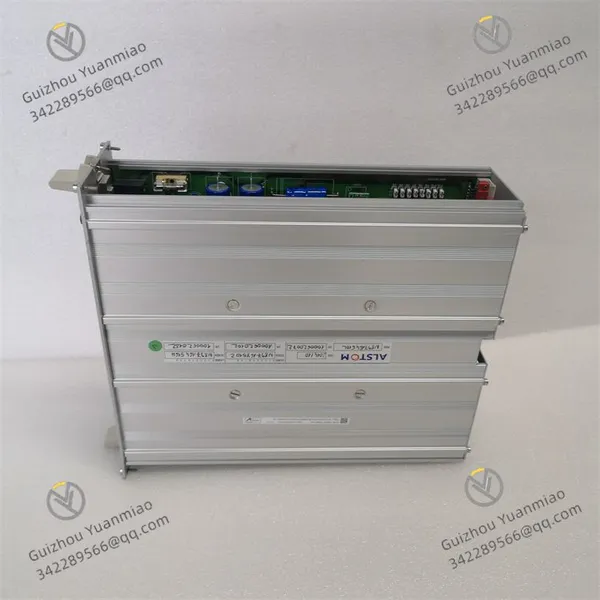

ALSTOM N897164610L Digital Input Module

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Material:

Other, Global universal model

Condition:

Other, Global universal model

Task:

Other, Global universal model

Guizhou Yuanmiao Automation Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Material Other, Global universal model

Condition Other, Global universal model

Task Other, Global universal model

Mathematical Model Other, Global universal model

Signal Other, Global universal model

Customized Non-Customized

Structure Other, Global universal model

ALSTOM N897164610L

Features

Multi-channel Input: Typically equipped with multiple input channels, capable of simultaneously receiving inputs from multiple sensors or external signals, and converting them into digital signals for processing.
Fast Response: Enables data acquisition and rapid signal processing, accurately capturing and responding to changes in input signals, and providing timely feedback on external signal status.
Strong Compatibility: Can communicate and integrate with other controllers or data buses of trains or vehicles, effectively integrating into the overall system for collaborative operation.
Programmable Configuration: Features programmable and configurable functions, allowing flexible settings and adjustments according to specific application requirements to adapt to different working scenarios and control needs.
Fault Detection and Monitoring: Incorporates fault detection and monitoring functions, capable of identifying abnormal input signal status, generating reports, and taking corresponding measures to ensure system reliability and safety.

Technical Parameters

Electrical Parameters

Parameter	Specification Description
Input Voltage Range	DC 24V ±10% (typical industrial digital input)
Input Signal Type	Dry contact, wet contact (with external power supply)
Input Current	2-10mA (depending on input type)
Logic Threshold	HIGH: ≥15V DC LOW: ≤5V DC
Response Time	≤10ms (typical value, high-speed mode configurable)
Isolation Mode	Optoelectronic isolation (isolation voltage ≥500V DC)

Channel Specifications

Parameter	Specification Description
Number of Channels	8/16/32 channels (typical digital input module configuration)
Channel Type	Single-ended input (SE) or differential input (DI)
Inter-channel Isolation	Supports channel group isolation (e.g., 4 channels per group)

Performance Indicators

Parameter	Specification Description
Sampling Frequency	1kHz-10kHz (configurable)
Anti-interference Capability	EMC: Complies with EN 50121-3-2 (railway application)
Bit Error Rate	≤10⁻⁹ (typical industrial-grade standard)
Operating Temperature Range	-40°C to +70°C (railway-grade extended temperature)
Humidity	5-95% RH (non-condensing)

Mechanical and Installation Parameters

Parameter	Specification Description
Dimensions	Approximately 120mm × 80mm × 60mm (L×W×H)
Weight	Approximately 200-300g (depending on number of channels)
Installation Method	DIN rail mounting (complies with EN 60715)
Protection Level	IP20 (panel-mounted) or IP65 (with protective housing)

Communication and Interfaces

Parameter	Specification Description
Communication Protocols	Supports ProFINET, Modbus RTU/TCP, etc.
Baud Rate	Up to 10Mbps (depending on protocol)
Diagnostic Interface	LED indicators (power, communication, channel status)
Programming Interface	USB/RS-485 (for configuration and firmware updates)
