Schneider 140CPU53414 Processor Module

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Material:

Other

Certification:

Other

Function:

Other

Guizhou Yuanmiao Automation Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Material Other

Certification Other

Function Other

Condition Other

Task Other

Mathematical Model Other

Signal Other

Customized Other

Structure Other

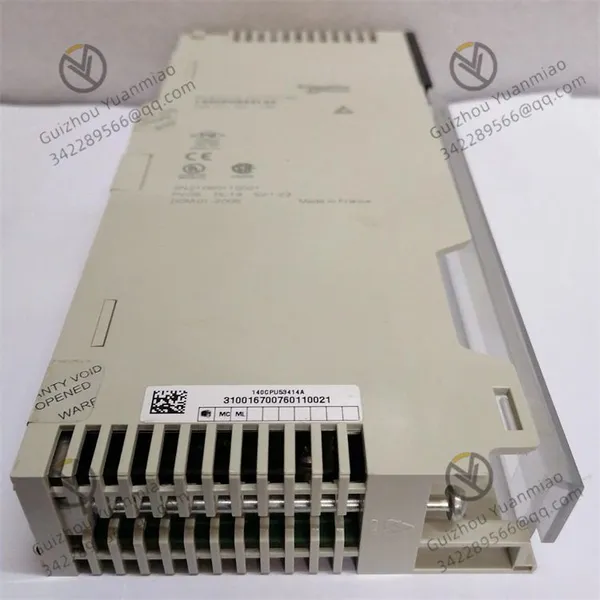

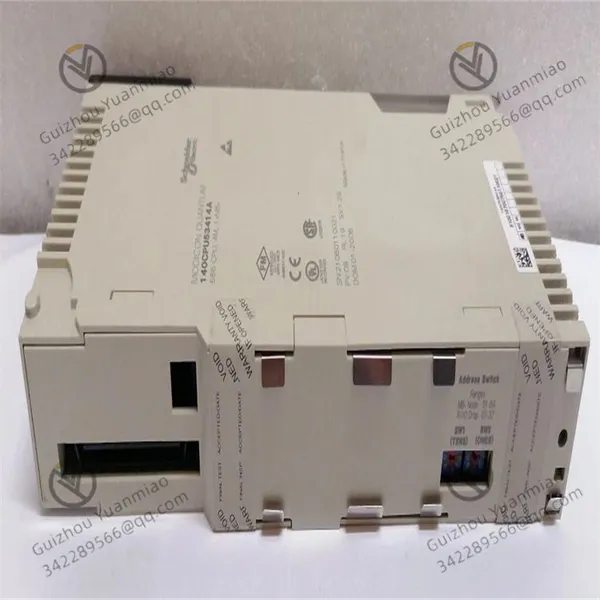

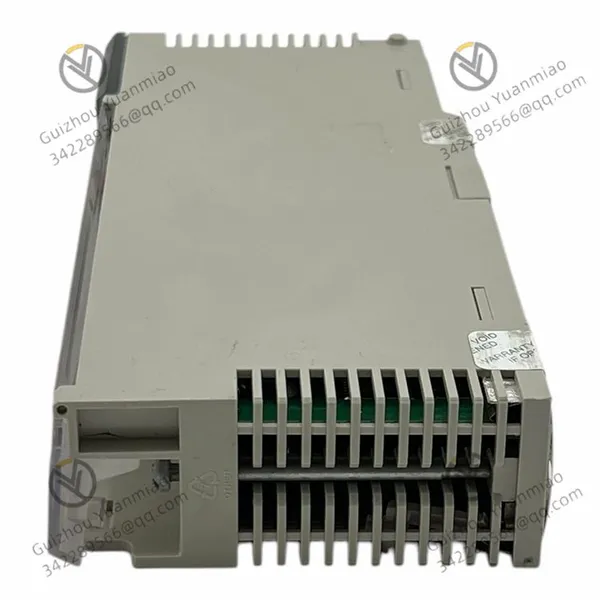

Schneider 140CPU53414 processor module

The 140CPU53414 is a processor module of Schneider Electric's Modicon Quantum series. The detailed introduction is as follows:

Basic Parameters

Processor Type: Some models are Unity hot standby safety CPUs.
Clock Speed: The clock speed of some models is 266MHz, enabling fast processing of instructions and data. There are also models using an 80486 core processor with a clock frequency of 100MHz.
Memory Capacity: Memory varies by model. For example, some have 1024KB of RAM, while others feature 2972KB of internal RAM.
I/O Points: Some models support 16 inputs and 16 outputs. Others have 30 distributed inputs, 32 distributed outputs, 64 local inputs, and 64 local outputs.
Transmission Rate: The transmission rate of some models is 1Mbit/s.
Power Consumption: The power consumption of some models is 4W.
Voltage Rating: Typically 24VDC.
Operating Temperature Range: For some models, it is -25°C to +60°C.
Protection Level: Some models have a protection level of IP30, which can prevent dust and foreign objects from entering.

Functional Features

High Reliability: Adopts Unity hot standby safety design with redundant processing capability. When the main system fails, the backup system automatically takes over to avoid production interruptions.
Rich Communication Capability: Equipped with multiple communication interfaces, such as Modbus RS232/RS485 interfaces, Modbus Plus interface, Ethernet multimode fiber interface, USB interface, etc. It supports various communication protocols such as Modbus, Modbus Plus, CANopen, and Ethernet. It can seamlessly connect and interact with various devices and systems to build complex industrial automation control networks.
Powerful Processing Capability: Some models are equipped with 3 coprocessors, which can quickly process a large number of input/output signals, complex logic operations, and data processing tasks, and can meet the control needs of various industrial automation scenarios.
Flexible Programming Methods: Supports multiple programming languages such as ladder diagram, structured text, function block diagram, and instruction list, making it convenient for engineers to write and debug programs according to requirements and improving development efficiency.
Easy Maintenance and Monitoring: Equipped with an LCD display to real-time display operation data and system status. The module has a memory protection function, which can be set to locked or unlocked through a key switch, facilitating maintenance personnel to perform system menu operations and parameter modifications.

Application Fields

Manufacturing: It can be used for the control of automated production lines such as automobile manufacturing and electronic equipment production, realizing automated control, monitoring, and management of the production process to improve production efficiency and product quality.
Energy Management: In the energy fields of electricity, petroleum, chemical industry, etc., it can be used to monitor and control energy systems such as power grid dispatching and power distribution to achieve efficient energy utilization and stable system operation.
Transportation: It can be used for the train operation control system of rail transit, the control of loading and unloading equipment in port logistics, etc., to ensure the safe and efficient operation of transportation.
Building and Infrastructure: It can be applied to the control of elevators, air conditioning systems, etc., in intelligent buildings to realize intelligent management of buildings and energy conservation. It can also be used for process control and monitoring in infrastructure fields such as water treatment and sewage treatment.
