Help CenterJ-P400 Miniature High-speed Planetary Ball Mill
Related Products
-
XQM Series Vertical Square Planetary Ball MillUS$ 1225MOQ: 1 Piece -
POWERFUL 4 Cabinet Planetary Grinder Powerful TypeUS$ 4000MOQ: 1 Piece
-
Low Temperature Planetary Ball Mill (liquid Nitrogen Type)NegotiableMOQ: 1 Piece
-
Low Temperature Planetary Ball Mill (air-cooled)NegotiableMOQ: 1 Piece
-
QM-QX Series All-round Planetary Ball Mill (0.4L~40L)NegotiableMOQ: 1 Piece

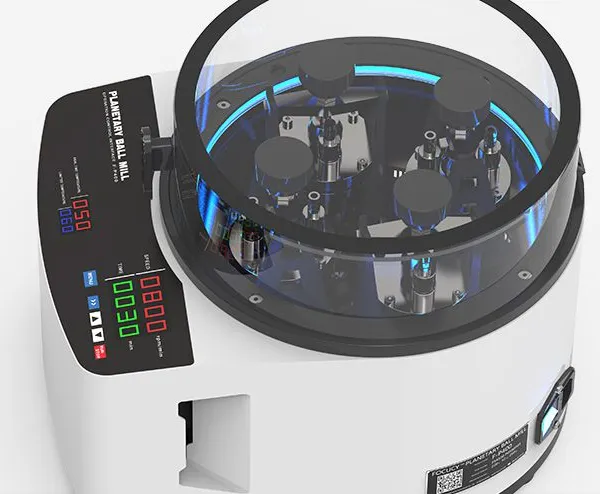

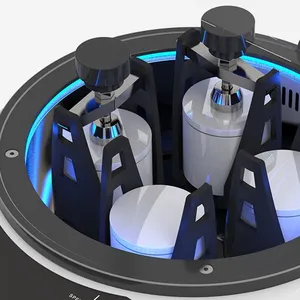

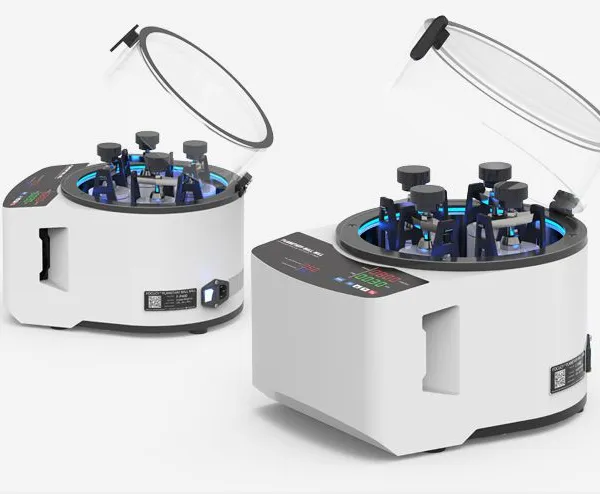

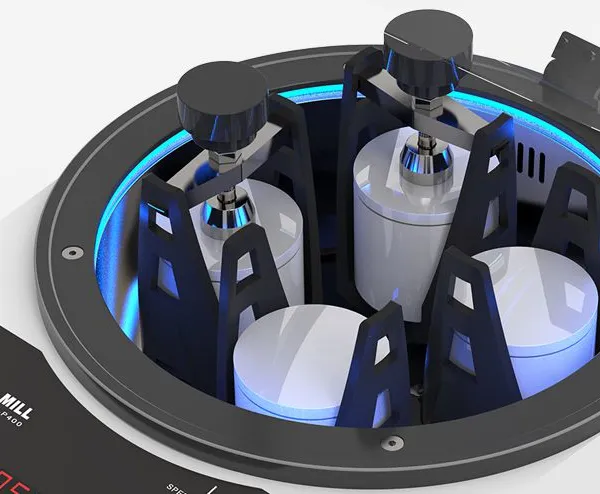

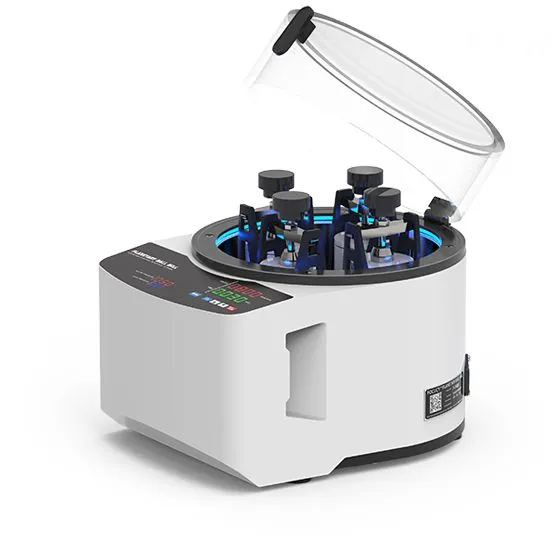

The planetary ball mill J-P400 has a smaller appearance, with a width of only 300 * height of 300 * depth of 370mm. It adopts an ergonomic structure and personalized appearance design. The instrument can be placed on a desktop or glove box for use. The ball mill can rotate at 1000rpm and revolve at 500rpm, and can be used to place four ball mill cans with a volume of 100ml or less. The ball mill can be made of various materials, standard types, and vacuum types, and is suitable for dry grinding, wet grinding, and vacuum grinding. It uses a simpler and more durable microcomputer digital control method to achieve continuous, intermittent, positive and negative alternation, timing, speed regulation, temperature monitoring and testing, high temperature protection, overload protection and other functions. It uses a 10mm thick safety, sound insulation, and visual flip cover, circular LED ambient lighting, and stainless steel grinding room to meet the requirements of dust-free environment and no dust. Magnetic technology.
Product Name: Micro planetary ball mill
Model: J-P400
Processing principle: Impact force | Friction force
Application sample characteristics: fine | medium low hardness | brittle | dry or low viscosity
Processing type: Crushing | Grinding | Mixing
Maximum injection size:
Sample size range: 0.1-20 μ m
Maximum processing capacity: 400 ml
Maximum speed of ball milling jar: 1000 r/min
Transmission mode: European standard
Movement mode: planetary motion
Function: Continuous and intermittent operation | Alternating forward and reverse operation | Timing | Speed regulation | Power off memory | Emergency stop | Overload and dangerous operation protection | Temperature monitoring | High temperature protection|
Additional features: LED lighting | Visual flip cover | Sound insulation | Heat dissipation | Stainless steel grinding chamber
Material of ball milling jar: tungsten carbide | zirconia | agate | stainless steel | MC nylon, etc. Optional
Number of ball milling jars: 4
Ball mill tank capacity: 100 ml
Grinding Ball Material: Tungsten Carbide | Zirconia | Agate | Stainless Steel, etc. Optional
Grinding method: dry grinding | wet grinding
Electrical description: 220V/380V, 50-60Hz, 150W
Power ports: National standard | European standard | American standard | British standard, etc
Net weight: 35 kg
Dimensions (width, depth, height): 300 * 370 * 300 mm
Protection level: IP65
