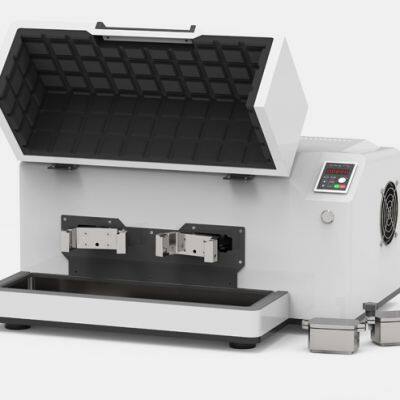

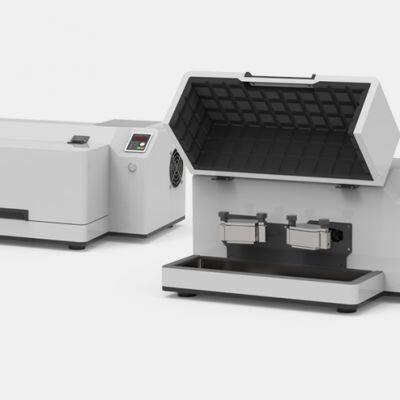

MM500 Nano High Energy Vibration Ball Mill

MM500 is a high-energy oscillation impact type multifunctional laboratory ball mill, with a desktop operation that is simple, small in size, comfortable and safe. It provides three materials: tungsten carbide, zirconia, and stainless steel, with a maximum capacity of 125ml for ball milling tanks to choose from; The product can provide users with excellent crushing and grinding effects in a very short time of minutes or even seconds, including dry grinding, wet grinding, vacuum grinding, and frozen grinding. The extremely strong impact energy makes the product have a very large application space in the fields of scientific research, mechanochemistry, and mechanical alloys. Strong and fast are the main characteristics of this product;

Product Name: Nano High Energy Vibration Ball Mill

Model: MM500

Processing principle: Impact force | Friction force

Application sample characteristics: hard | medium to low hardness | brittle | dry | viscous | fibrous | soft | elastic

Processing type: Mechanochemistry | Mechanical Alloy | Crushing | Mixing | Homogenization

Suggested maximum injection size:<10 mm

Sample size range:~100 nm

Grinding method: dry grinding | wet grinding | vacuum grinding

Grinding platform (number of cans): 2

Motion mode: Y-plane arc-shaped high-frequency reciprocating motion

Vibration frequency: 180-1800 r/min

Main functions: continuous operation | intermittent operation | timing | speed regulation | data storage | power-off memory | overload protection

Additional features: Quick fastening | Acoustic layer | Stainless steel workbench

Classic crushing time: 10-60s

Ball milling jar material: tungsten carbide | zirconia | polytetrafluoroethylene | nylon | hard steel | stainless steel

Maximum capacity of ball mill jar: 2X125ml

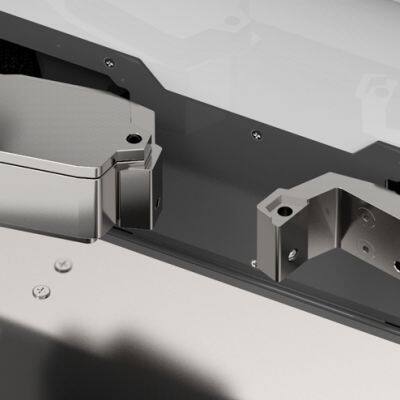

Ball milling jar fixing method: threaded fastening

Grinding ball size: 1-30mm optional

Grinding ball material: tungsten carbide | zirconia | agate | stainless steel

Control method: Variable frequency control

Electrical description: 100-120V | 200-240V AC, 50-60Hz, 750W

Power ports: National standard | European standard | American standard | British standard, etc

Net weight: 95 kg

Dimensions (width, depth, height): 680 * 540 * 320

Protection level: IP30
