Home > Electrical & Electronics > Electrical Control System > ABB PP835 3BSE042234R1 Operator Panel

ABB PP835 3BSE042234R1 Operator Panel

ABB PP835 3BSE042234R1 Operator Panel thumbnail-3

ABB PP835 3BSE042234R1 Operator Panel thumbnail-4

ABB PP835 3BSE042234R1 Operator Panel photo-1

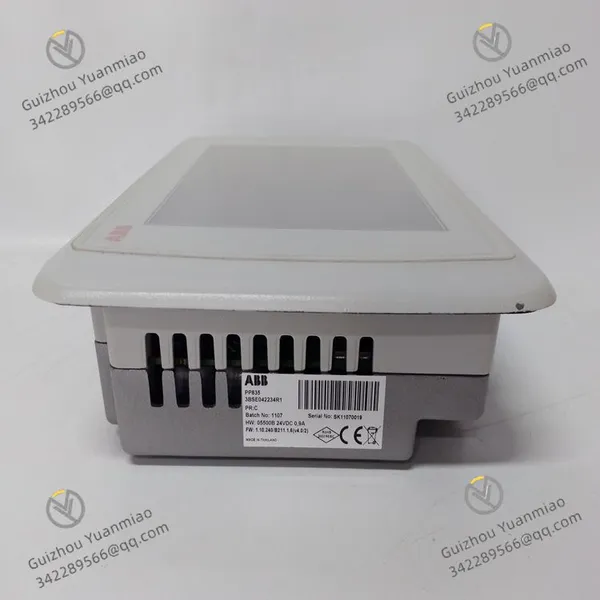

ABB PP835 3BSE042234R1 Operator Panel photo-2

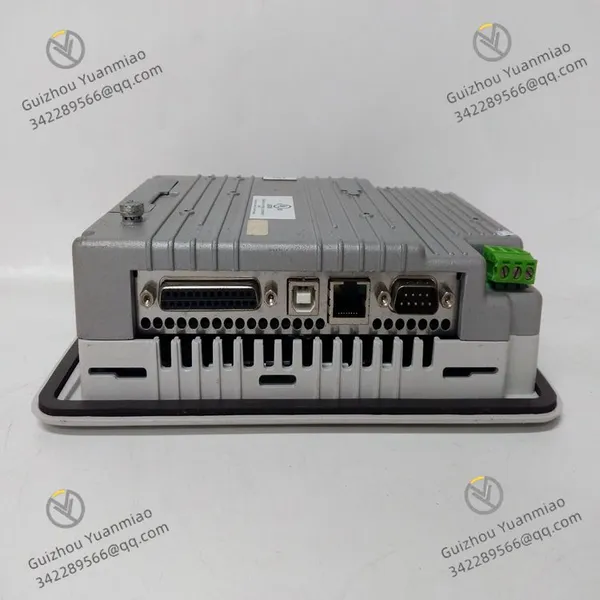

ABB PP835 3BSE042234R1 Operator Panel photo-3

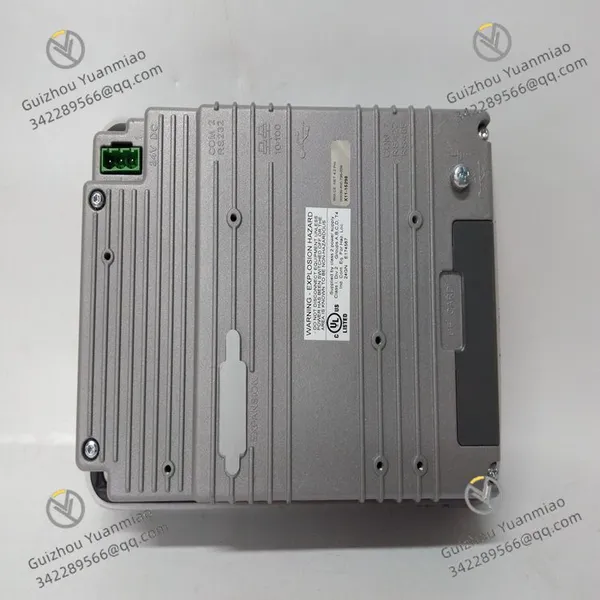

ABB PP835 3BSE042234R1 Operator Panel photo-4

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Other, Global universal model

Condition:

Other, Global universal model

Task:

Other, Global universal model

Contact Supplier Request Quote Chat Now

Guizhou Yuanmiao Automation Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Other, Global universal model

Condition Other, Global universal model

Task Other, Global universal model

Mathematical Model Other, Global universal model

Signal Other, Global universal model

Customized Non-Customized

Structure Other, Global universal model

Operating temperature 0℃ to 55℃

Dimensions 270mm×180mm×76.5mm

The ABB PP835 3BSE042234R1 is an operator panel for industrial automation, originated from Switzerland.

Technical Parameters

Display: Equipped with a 6.5-inch TFT color touchscreen with a resolution of 640×480 pixels, which clearly displays graphics and text information. It supports touch operation, facilitating user interaction with the system.
Power Supply: Input voltage is 24V DC with low power consumption, suitable for power supply environments in industrial fields.
Communication Interface: Features an Ethernet interface for convenient communication with other devices or systems, enabling data transmission and remote control.
Operating Temperature: The operating temperature range is 0°C to 55°C, adapting to temperature conditions in various industrial environments.
Dimensions and Weight: The product size is approximately 270mm×180mm×76.5mm, and the net weight is about 1.48kg, making it lightweight, portable, and easy to install.

Functional Features of ABB PP835 3BSE042234R1

Excellent Display and Interaction: Fitted with a 6.5-inch TFT color touchscreen (640×480 pixels), it clearly presents graphics and text, offers rich color display, and intuitively shows the operating status of industrial equipment. The touchscreen is highly responsive, supporting touch operations for convenient input of various commands and interface navigation, enabling smooth human-system interaction.
Rich Communication Capabilities: Equipped with an Ethernet interface, it supports multiple industrial communication protocols (e.g., Modbus, Profibus, Ethernet/IP), enabling easy communication and integration with PLCs, controllers, sensors, and other devices from different manufacturers. This realizes fast data transmission and remote control, adapting to the architecture of various industrial automation systems.
Powerful Configuration Functions: Using ABB's Panel Builder configuration tool, which has a Microsoft Windows-like environment for easy operation and supports multiple languages. Users can quickly perform engineering configuration through this tool, custom design interfaces (including creating buttons, indicators, gauges, trend charts, etc.), and bind them to variables of industrial equipment to meet monitoring and control needs of different industrial processes. It also comes with a large number of templates and graphic libraries suitable for all conceivable process applications, significantly reducing development time and workload.
Reliable Hardware Design: Adopts a sturdy and lightweight die-cast powder-coated aluminum shell, with the front panel reaching IP65/IP66 protection level, capable of withstanding humid, dusty, and harsh industrial environments to ensure stable operation under adverse conditions. The operating temperature range is -10°C to 60°C, and humidity is 85%, featuring a wide adaptability to temperature and humidity, suitable for different industrial field environments.
Open Architecture and Multi-Brand Connectivity: Based on the open architecture and technologies included with the .NET framework, it enables connection with multi-brand controllers, providing users with more device choices and flexibility in system integration, facilitating the construction of complex industrial automation systems.

Working Principle

Data Interaction: Establishes connections with other devices (such as PLCs, controllers) in the industrial automation system through the Ethernet interface, receives operation status and parameters of devices, and sends instructions input by users via the touchscreen to corresponding devices, realizing real-time monitoring and control of industrial processes.
Display and Control: After processing the received data, it is intuitively displayed on the touchscreen in the form of graphics, text, etc. (such as operating status indicators, parameter gauges, trend curves of devices). Users input operation instructions by touching various controls on the screen (such as buttons, sliders, text boxes), and the touchscreen converts touch signals into electrical signals, which are processed by the controller and sent to corresponding devices or systems, thus achieving remote control and parameter adjustment of industrial equipment.
System Support: Built-in corresponding operating system and software platform, supporting the parsing and processing of various industrial protocols, enabling compatibility and communication with different brands and types of industrial equipment, and providing a unified human-machine interaction interface for industrial automation systems. Meanwhile, it also has functions such as data storage, alarm management, and user permission management to meet the complex application requirements of industrial sites.

Product Tags: PP835A , 3BSE042234R2 , 3BSE042234R1
