ABB PP886H 3BSE069297R1 Touch Screen Panel

ABB PP886H 3BSE069297R1 Touch Screen Panel thumbnail-1
ABB PP886H 3BSE069297R1 Touch Screen Panel thumbnail-2
ABB PP886H 3BSE069297R1 Touch Screen Panel photo-1
ABB PP886H 3BSE069297R1 Touch Screen Panel photo-2
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, Global universal model
Condition:
Other, Global universal model
Task:
Other, Global universal model
Contact Supplier Request Quote Chat Now
Guizhou Yuanmiao Automation Equipment Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Material Other, Global universal model
Condition Other, Global universal model
Task Other, Global universal model
Mathematical Model Other, Global universal model
Signal Other, Global universal model
Customized Non-Customized
Structure Other, Global universal model
Input voltage + 24V DC
Dimensions 360mm×280mm×65mm
Weight 1.8kg
Basic Information

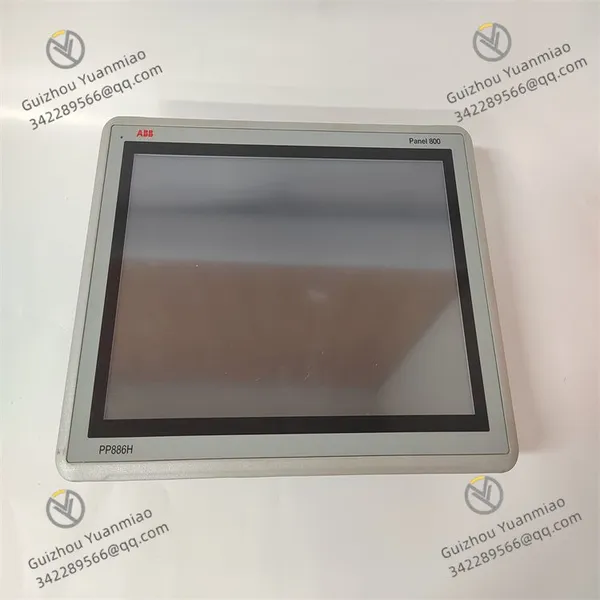

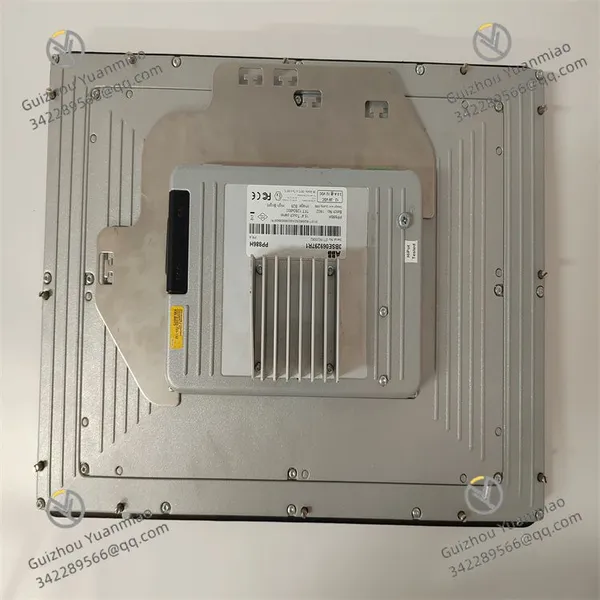

  • Model Affiliation: An industrial touchscreen module of the ABB Panel 800 series, positioned as a high-performance Human-Machine Interface (HMI) for monitoring and controlling high-end industrial automation systems. It is an upgraded or derivative model of PP885.

  • Product Type: Industrial-grade touchscreen panel supporting real-time equipment status display, dynamic parameter adjustment, multi-level alarm management, and two-way data interaction, with stronger expandability and environmental adaptability.

Technical Parameters
Parameter Category Detailed Specifications
Display Specifications 15-inch TFT color display, resolution 1024×768 (4:3), brightness 400 cd/m², LED backlight, supporting high-definition graphic and video display with wider viewing angles.
Processor ARM Cortex-A8 architecture, 1.2GHz clock speed, with approximately 20% improved data processing capability compared to PP885, supporting multi-task parallel processing.
Memory Configuration 1GB main memory, 4GB SSD external storage (approx. 3GB available space), supporting installation of large-scale applications and storage of historical data.
Power Requirements Input voltage +24V DC (voltage range 16–36V DC), enhanced wide voltage design adapting to severe voltage fluctuations in industrial fields.
Physical Dimensions 360mm×280mm×65mm, weight approx. 1.8kg, body made of lightweight aluminum alloy, supporting standard cabinet embedded installation or cantilever bracket installation.
Operating Environment Working temperature -20℃ to +65℃, maximum relative humidity 90% (non-condensing), resistant to vibration (5–500Hz, 2G) and impact (50G), conforming to IP66 protection rating (front dust and water proof).
Communication Interfaces 2 Gigabit Ethernet ports (supporting redundant network), RS-232/RS-485/RS-422 serial interfaces, 2 USB 3.0 ports, CANopen interface, compatible with protocols like Modbus, Profibus DP, EtherCAT, OPC UA, etc., supporting seamless integration with PLC, DCS, and SCADA systems.

PP886H 3BSE069297R1 (2)

Functional FeaturesDisplay and Interaction Performance

  • Large-size high-resolution screen with capacitive touchscreen, supporting multi-touch (up to 10 points), response speed

  • Supports vector graphics hardware-accelerated rendering, smooth interface animations, real-time display of 3D equipment models and dynamic flowcharts, and custom UI themes with multi-window split-screen display.

Engineering and Programming Convenience

  • Equipped with Panel Builder 300 programming tools (compatible with Windows 10/11), supporting C#/VB.NET secondary development, built-in Python script engine, enabling integration of machine learning algorithms for predictive maintenance.

  • Supports modular configuration design, prefabricated industrial-grade component libraries (such as PID controller panels, trend chart components, barcode scanning interfaces), and supports one-click import of CAD drawings as background interfaces.

Communication and Expandability

  • Based on .NET Core framework, supporting cross-platform development and remote debugging, enabling cloud monitoring and remote firmware upgrade via VPN.

  • Supports edge computing functions, built-in data caching and preprocessing modules, local storage of over 100,000 alarm records, supports OPC UA server functions, and seamlessly connects to industrial internet platforms.

Reliability Design

  • Housing made of anodized aluminum alloy, front protection rating IP66, resistant to high-pressure water flushing, suitable for harsh environments such as food processing and chemical industry.

  • Built-in dual-fan intelligent temperature control system, automatically starting cooling in high-temperature environments, EMC anti-interference level reaching EN 61000-6-4, suitable for strong electromagnetic interference scenarios (such as frequency converter workshops and metallurgical furnaces).

Application Fields

  • High-end Industrial Scenarios: Petroleum refining (complex distillation column control, DCS system HMI), semiconductor manufacturing (cleanroom equipment monitoring), aerospace test platforms (real-time data visualization), smart grids (substation integrated automation systems), new energy equipment (photovoltaic inverter cluster monitoring, wind power main control systems).

  • Core Functions: As an intelligent HMI in the Industry 4.0 era, in addition to basic monitoring, it also supports AI fault diagnosis (training models through historical data), AR remote assistance (visualized operation and maintenance with cameras), and automatic generation of energy management data reports.

PP886H 3BSE069297R1 (1)

Common Faults and SolutionsDisplay-Related Faults
  • Issue: Screen flickering or flower screen.

    • Check if HDMI/DVI cables are loose, replace with shielded cables; update graphics driver firmware (download dedicated tools from ABB official website).

  • Issue: Touch offset or partial area unresponsive.

    • Enter system settings to perform multi-point calibration; if calibration is invalid, the capacitive screen controller may be faulty, contact after-sales to replace the touch module.

Communication-Related Faults
  • Issue: Gigabit Ethernet port communication interruption.

    • Check switch port status, confirm all 8 cores of the network cable crystal head are connected (use a cable tester); reset network adapter parameters and enable Link Aggregation Control Protocol (LACP) function.

  • Issue: CANopen bus communication timeout.

    • Check if terminal resistors are installed (120Ω), measure bus voltage (normal 2.5V differential); reduce baud rate below 500kbps, check if bus branch length exceeds 100 meters.

Performance-Related Faults

  • Issue: Program running lag.

    • Clean up redundant background processes (via task manager), enable memory defragmentation tools; if SSD read/write speed decreases, perform disk health detection through ABB tools.

Comparison with Series Products (PP885, PP886)
Model PP886H (3BSE069297R1) PP885 (3BSE069276R1) PP886 (Standard Version)
Screen Size/Resolution 15-inch (1024×768) 10.4-inch (800×600) 15-inch (1024×768)
Processor ARM Cortex-A8 (1.2GHz) ARM9 (1GHz) ARM Cortex-A8 (1GHz)
Memory/Storage 1GB memory + 4GB SSD 512MB memory + 2GB SSD 1GB memory + 4GB SSD
Protection Rating IP66 (front) IP65 (front) IP65 (front)
Special Functions Supports multi-touch, edge computing, AR interface Single-point resistive touch, basic data interaction No AR interface, simplified edge computing functions
Application Scenarios High-end complex systems (semiconductor, aerospace) Medium industrial systems (power, metallurgy) General large systems (chemical, building materials)
Summary
The ABB PP886H 3BSE069297R1 is the flagship model of the Panel 800 series. With its 15-inch high-definition touchscreen, high-performance processor, and industrial-grade protection design, it is specially built for scenarios with extremely high requirements for visualization, interaction experience, and reliability. Its multi-touch, edge computing, and AR integration capabilities make it a core human-machine interface for the intelligent upgrade of industrial automation, especially suitable for high-end manufacturing fields such as semiconductors and new energy. When using it, pay attention to heat dissipation management in high-temperature environments and make full use of its open development framework to achieve customized function expansion.
Product Tags: PP886H , 3BSE069297R1 , PPD512A10-150000

Send Inquiry to This Supplier
