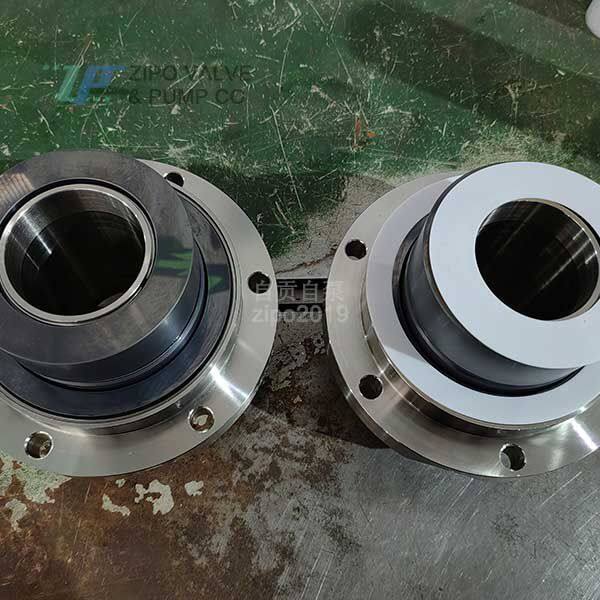

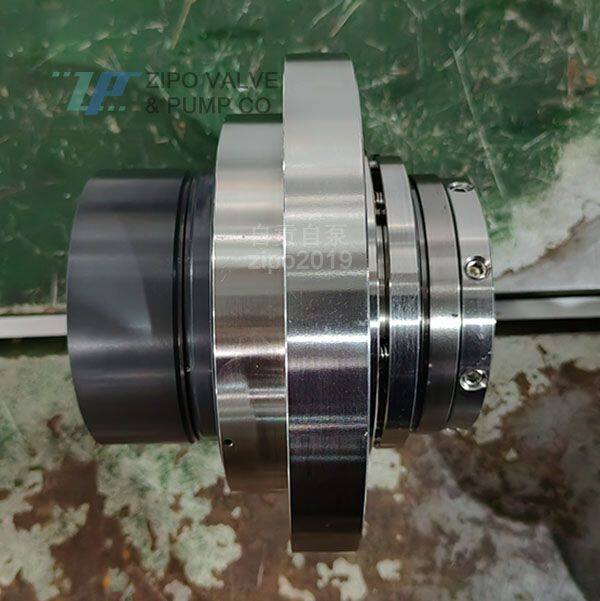

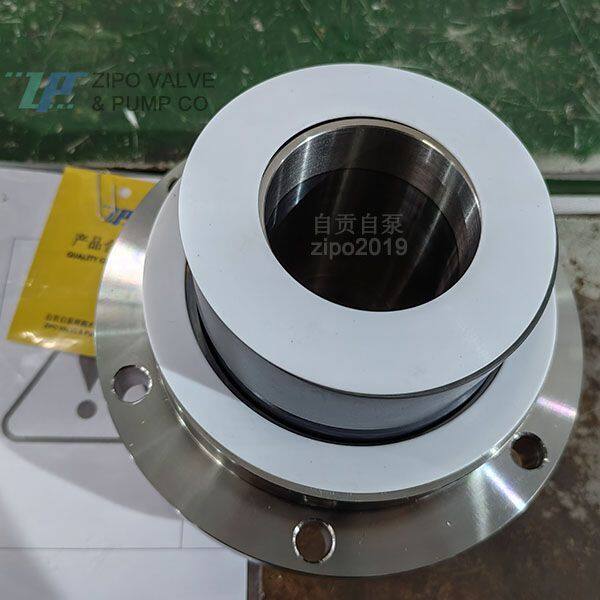

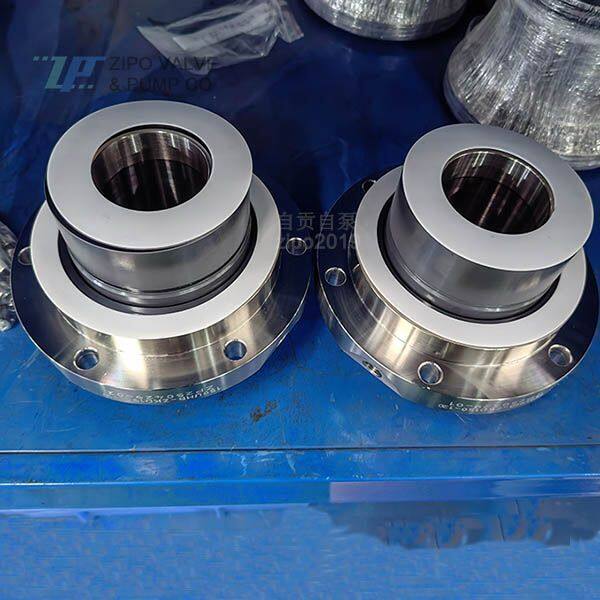

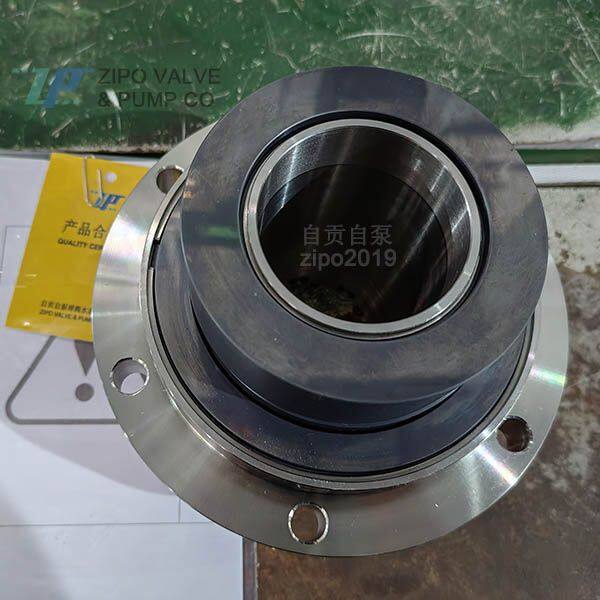

Cartridge Mechanical Seal for UHB-ZKD Fluoroplastic Lined Corrosion-resistant and Frosted Slurry Pump

Cartridge mechanical seal for UHB-ZKD fluoroplastic lined corrosion-resistant and frosted slurry pump containerized mechanical seal

The above prices are reference prices, and prices may vary for different materials and models. Please call us for specific prices.

Mechanical products are customized products, please call to negotiate and agree on the delivery time.

Online service: zipopvf@163.com Wechat: 180 (8165) 9672 or Zipo2019; Q: 219(141)7589

Cartridge mechanical seal for150UHB-ZKD150-120 horizontal mortar pump

Configuration: medium end: Silicon carbide + perfluoroether O-rings + 304SS; Atmospheric end: Tungsten carbide+ fluorine rubber O-rings

The UHB-ZKD series corrosion-resistant and frosted slurry pump mainly transports medium with certain corrosiveness and containing fine particles or crystals. It is manufactured using steel lined ultra-high molecular weight polyethylene compression molding process, which has good corrosion resistance and wear resistance. Fluoroplastic lining can also be used according to customers' special corrosion or temperature resistance requirements. The structural design is cantilever front opening, and the impeller is semi open (without a front cover plate), which enhances the permeability of the flow channel, allowing particles and impurities in the medium to quickly pass through the pump chamber without blockage. The shaft seal is a K-type fluororubber sealing ring with a cooling water jacket, which meets the dual requirements of corrosion resistance and wear resistance. This series of products is mainly used in metal smelting, titanium powder, fine chemicals, fertilizers, petrochemicals, acid and alkali production, non-ferrous metal smelting, acid washing processes in automobile manufacturing, rare earth separation, pesticides, dyes, pharmaceuticals, papermaking, electroplating, radio and other industries for acid, alkali, salt, organic solvents and other liquids. It is particularly suitable for transporting highly corrosive liquids containing fine particles.

Particle diameter: ≤ 40 mesh; Concentration: 30 %

Operating temperature: -20 ° C to 95 ° C.

Above mechanical seal can be used pump types such as: 32 UHB-ZKD 40UHB-ZKD 50UHB-ZKD 65UHB-ZKD 80UHB-ZKD 100UHB-ZKD 150UHB-ZKD 200UHB-ZKD 250UHB-ZKD 300UHB-ZKD 350UHB-ZKD

Manufacturer: ZIPO VALVE & PUMP CO., LTD
