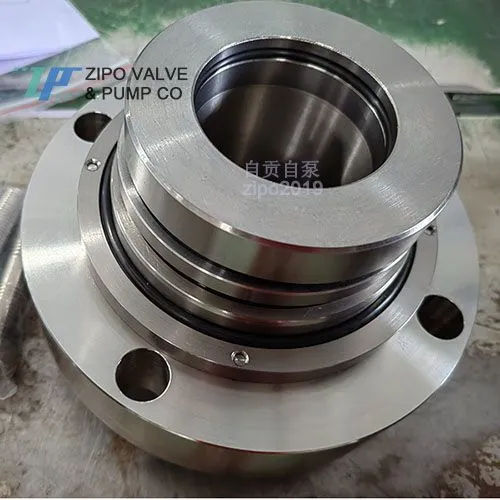

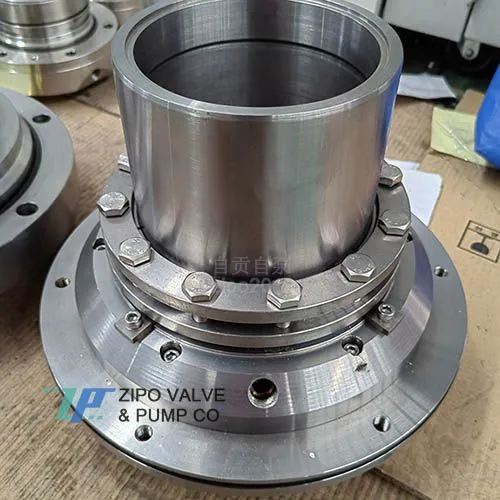

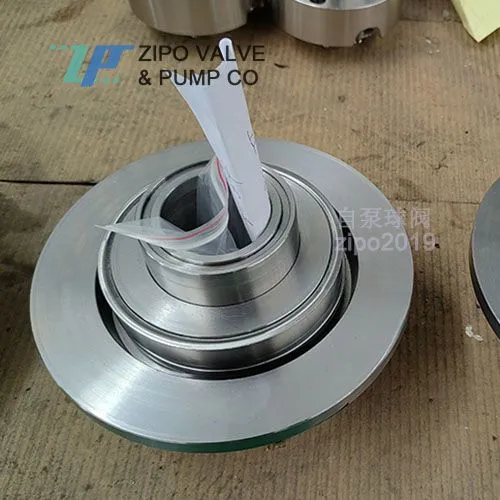

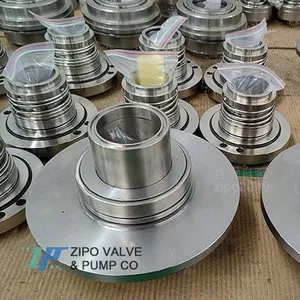

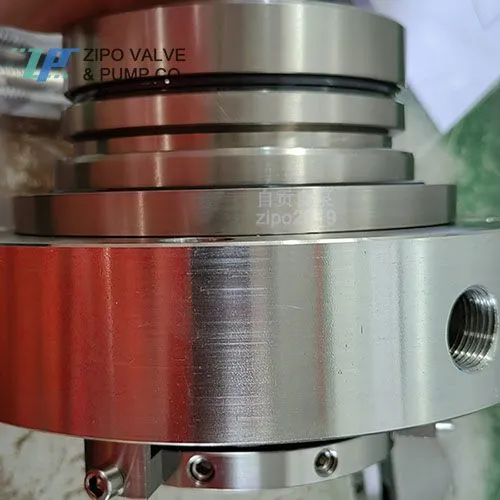

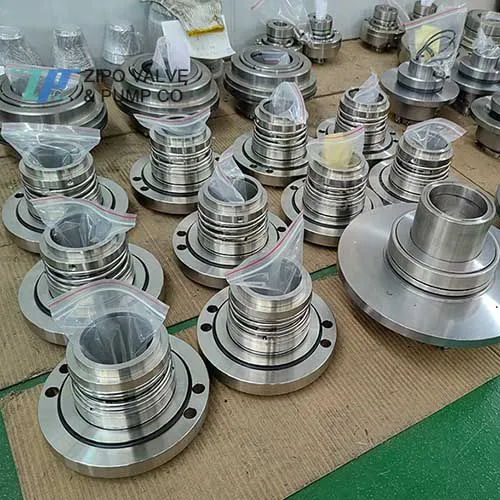

Stainless steel cartridge mechanical seal with single or double sealing surface

Stainless steel cartridge mechanical seal with single or double sealing surface

Contact: Email: zipopvf@163.com Wechat: zipo2019; QQ: 2191417589; Mobile: 18081659672

Product features:

1. High temperature resistance, corrosion resistance, wear and high pressure;

2. Spring received effective protection, balanced structure;

3. Good sealing performance, long service life.

4. It is not necessary to measure the working length of the mechanical seal during installation;

5. The shaft can be adjusted at any time;

6. There will be no leakage during startup, because the seal has been tested in advance;

7. It is only necessary to set the tight cover bolt during installation, and the assembly quality is easy to guarantee;

8. Before installation or startup, the sealing surface is protected well from contamination by sundries or damage due to operation errors;

9. It can be readjusted after thermal expansion of the machine and equipment;

10 It is easy to take out the mechanical seal for cleaning and inspection without dismantling the pump equipment.

Seal type: double face seal or single face mechanical seal (selected according to actual medium working condition)

Cooling mode: internal flushing cooling or with external flushing water nozzle (selected according to actual medium, temperature and other working conditions)

Shaft diameter: 35mm ~ 350mm

Applicable medium: limestone, gypsum slurry and other media containing solid particles and corrosive medium

Applicable temperature: for internal flushing cooling water, the applicable medium temperature is below 60 ℃; for external flushing cooling, the applicable medium temperature is 60 ℃ ~ 150 ℃

Manufacturer: ZIPO VALVE & PUMP CO., LTD
