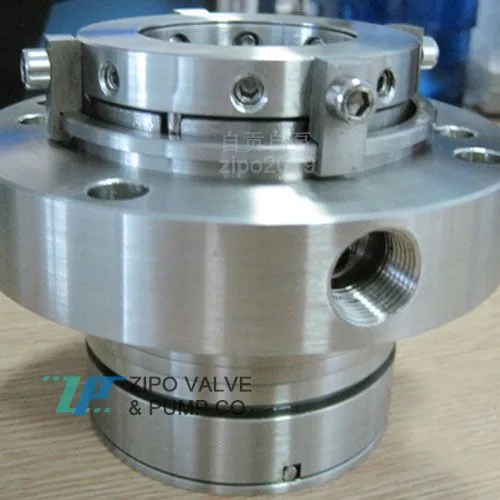

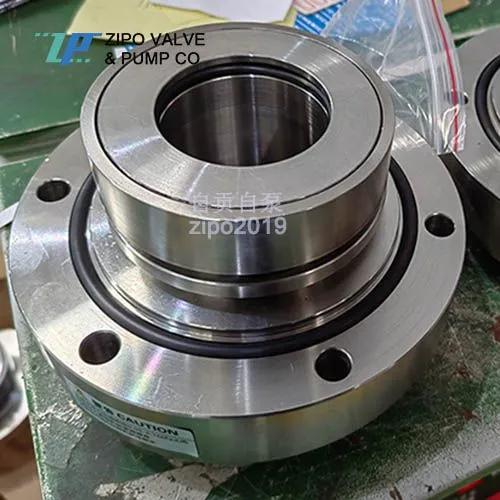

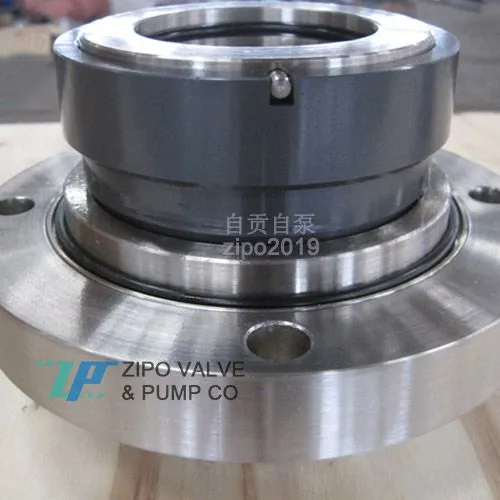

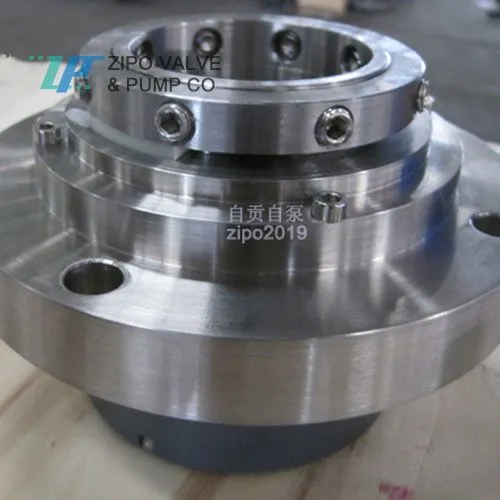

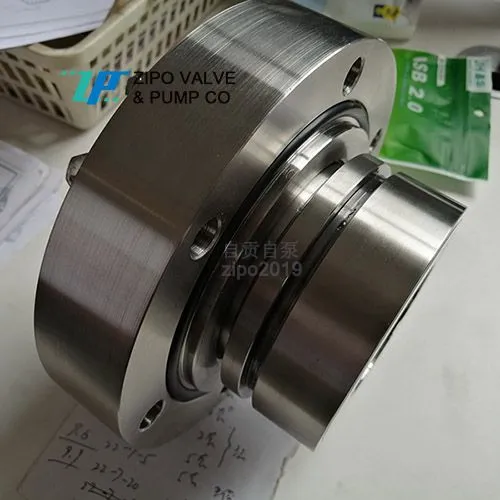

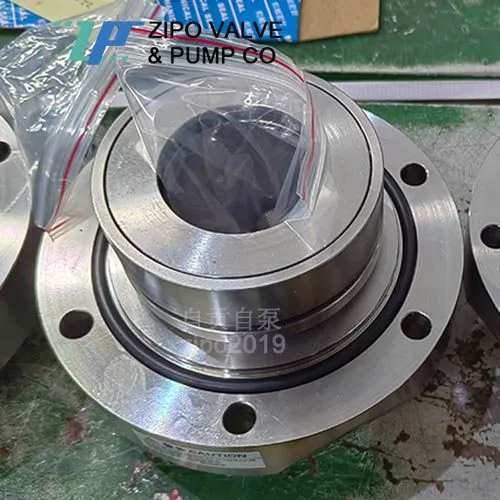

ZCMSS type single seal face mechanical seals for chemical pumps or slurry pumps with external flushing water
Contact: Email: zipopvf@163.com Wechat: zipo2019; QQ: 2191417589; Mobile: 18081659672
Applicable scope:
Medium: Slurry with solid particles in the process of power plants, aluminum plants, nitrate plants, or salt plants
Concentration (wt): ≤ 35%
Pressure: ≤ 4MPa
Temperature: -20~160 ℃
Sealing face average line speed ≤ 10m/s
Shaft diameter: 34~170mm (the dimension can also be customized)
Structural features and precautions:
(1) Single sealing face, cartridge type, external flushing, and the rotary ring is fixed onto the shaft by set crews (locking screws) to make the rotary ring rotate with the shaft, regardless of the direction of rotation.
(2) Mechanical seals generally operate continuously. If it is necessary to shut down the machine, the sealing chamber must be flushed to prevent stuttering and solidification, which may affect the flexibility and floatability of mechanical seal parts
(3) During installation, lubricating oil should be applied to the inner hole of the shaft sleeve and the O-ring to facilitate installation. (Note: Can only neutral shampoo as lubricant for ethylene propylene rubber.)
(4) After the mechanical seal is put in place, symmetrically and evenly tighten the installation screws (or bolts), and finally must remove all positioning blocks (limited blocks) before starting the main equipment (the pump)
(5) Operating procedure: First turn on the flushing water, then turn on the main equipment (the pump); Stop the main equipment first, then turn off the flushing water. Don’t make the mechanical seal and oil seal work in a dry friction state
(6) The pressure of flushing water is about 0.05MPa, which can flow naturally.
Manufacturer: ZIPO VALVE & PUMP CO., LTD
