Product Details
Brand Name: | ZP | Place of Origin: | China | Model Number: | ZSMS-33 |
Material: | Metal | Style: | Mechanical Seal | Standard or Nonstandard: | Standard |
Product Description

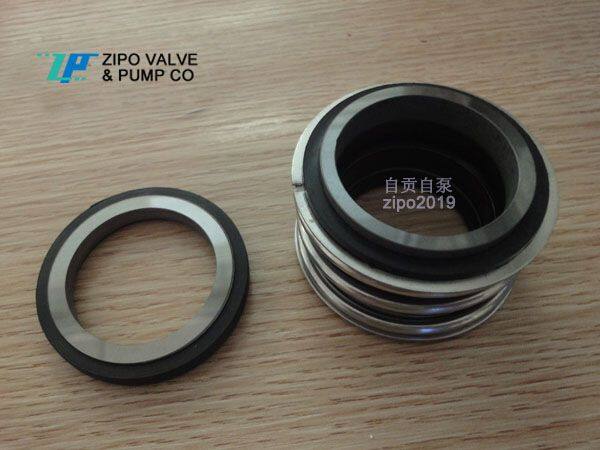

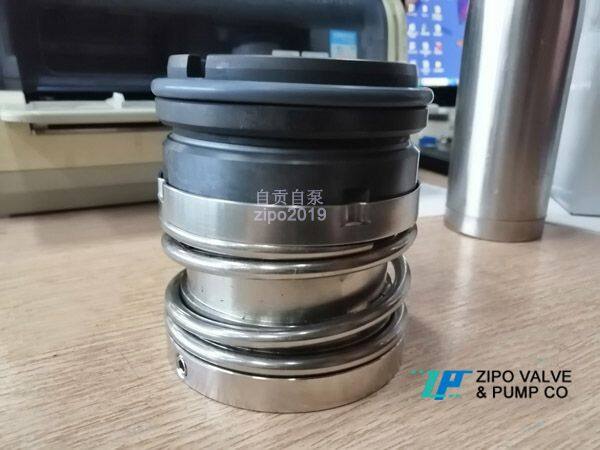

ZSMS Spring loaded mechanical seals for pumps ZIS or ZDLF or ZISG or ZIH or ZN
Contact: Email: zipopvf@163.com Wechat: zipo2019; QQ: 2191417589; Mobile: 18081659672
Mechanical seal products are special products. According to different materials, sizes, structures and purchase quantities, the prices will change accordingly. Mechanical seal can be customized according to your sample drawing, or can go to the customer site to customize products for you. So before you consult or purchase our products, please tell us the exact pump type, shaft diameter, mechanical seal installation size and other parameters.

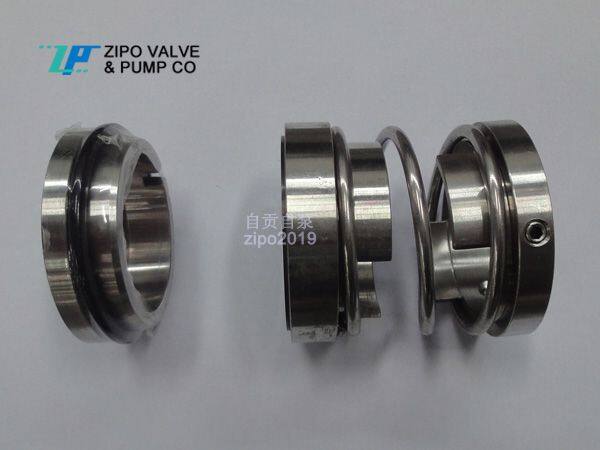

Main components of ZSMS simple mechanical seal: roating ring, static ring, cooling device and compression spring (depending on specific equipment).
ZSMS simple mechanical seal auxiliary seal: seal ring: O-ring, X-ring, U-ring, wedge-shaped, rectangular flexible graphite, PTFE coated rubber O-ring, etc
Product advantages: traditional simple mechanical seal structure, they are relatively cheaper. In order to ensure its performance, it is recommended to select the ZCMS cartridge mechanical seal with improved structure when the budget allows.
If the user has installed the traditional ZSMS simple mechanical seal, please still choose the ZSMS simple mechanical seal. Please contact our team for details.
ZSMS simple mechanical seal shaft diameter: 15mm ~ 120mm
Main material: 1Cr13, 304304L, 316316
Applicable medium: medium without solid particles similar to clean water and corrosive medium
Applicable temperature: the applicable medium temperature is below 60 ℃
Machine seal models: ZSMS-15, ZSMS-20, ZSMS-25, ZSMS-30, ZSMS-35, ZSMS-40, ZSMS-45, ZSMS-50, ZSMS-55, ZSMS-60, ZSMS-65, ZSMS-70, ZSMS-80, ZSMS-85, ZSMS-90, ZSMS-95, ZSMS-100, ZSMS-110, ZSMS-120
Applicable pump types: ZIS clean water pump; ZISG pipeline pump; ZSH double suction pump; ZDLF vertical multistage pump; ZD horizontal multistage pump, etc.
