Laminated Insulated Glass

Laminated insulated glass

Laminated insulated glass is a premium architectural glass solution that integrates safety, strength, and energy efficiency. Composed of two or more tempered glass panes bonded with durable interlayers (such as PVB or EVA) and combined with an insulating air gap, this advanced product delivers exceptional impact resistance (thanks to its laminated structure), the superior strength of tempered glass, and outstanding thermal and acoustic insulation properties. Ideal for high-performance applications, it is widely used in curtain walls, skylights, windows, doors, and other settings demanding enhanced safety and energy efficiency.

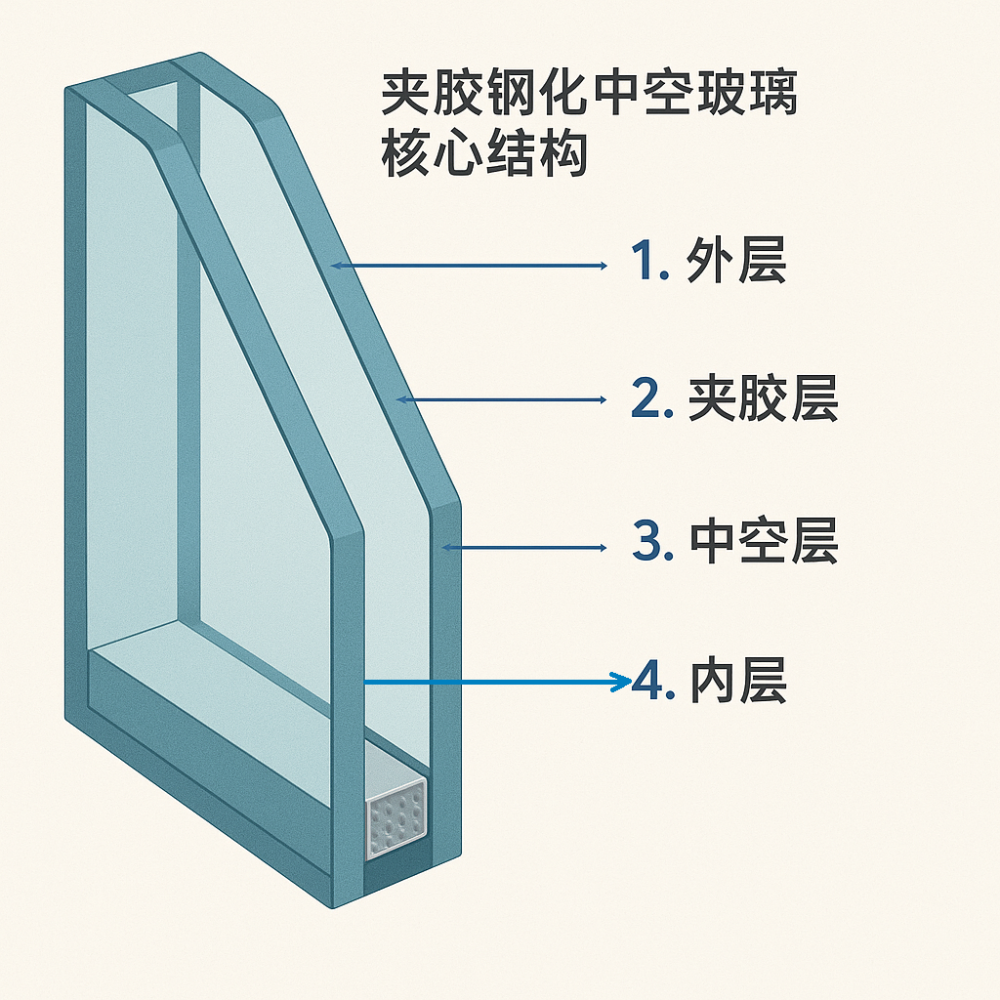

1,Outer Layer: 5-19mm Tempered Glass (optional)

→ 3-5 times stronger than regular glass; breaks into blunt-angled particles for enhanced safety.

2,Interlayer: 0.38-2.28mm PVB/EVA Film (optional)

→ UV-resistant, anti-shattering; fragments remain adhered to prevent scattering.

3,Insulating Gap: 6-20mm Aluminum Spacer + Molecular Sieve Desiccant

→ Reduces heat transfer and improves thermal insulation.

4,Inner Layer: 5-12mm Tempered/Low-E Glass (optional)

→ Can be combined with coating technology to enhance energy efficiency.

5,Sealing System: Dual Seal (Butyl + Silicone Sealant)

→ Ensures long-term durability and airtight performance.

Xingchen Dahai (Hubei) Glass Co., Ltd.

Professional Insulated Glass Solutions Provider

We specialize in providing high-performance insulated glass for system window and door manufacturers, engineering projects, distributors, traders, and end consumers. Our product offerings include:

① Energy-saving (Low-E coating, Argon-filled) — Reduce energy consumption and improve building insulation

② Safety (Tempered laminated, Explosion-proof glass) — Impact-resistant and explosion-proof to ensure building safety

③ Soundproofing (Triple glazing, PVB laminated) — Effectively reduces noise for a quiet and comfortable environment

④ Smart (Electrochromic, Thermochromic glass) — Dynamic light control to meet the needs of intelligent architecture

Applications: Curtain walls, system doors & windows, rail transit, electronic displays

Core Supply Chain Advantages

① 5,000 tons in stock — Direct shipment from Hubei warehouse, fast response

② 30% faster delivery — Quicker than industry standard to ensure project timelines

③ Advanced customization — Flexible solutions tailored to various engineering requirements

Efficient Supply | Strict Quality Control | On-Time Delivery
